Power Window Control System (Convertible) - Diagnostics
›
Power Windows Do Not Operate Using Master Switch
›
Wiring Diagram
Power Windows Do Not Operate Using Master Switch: Wiring Diagram

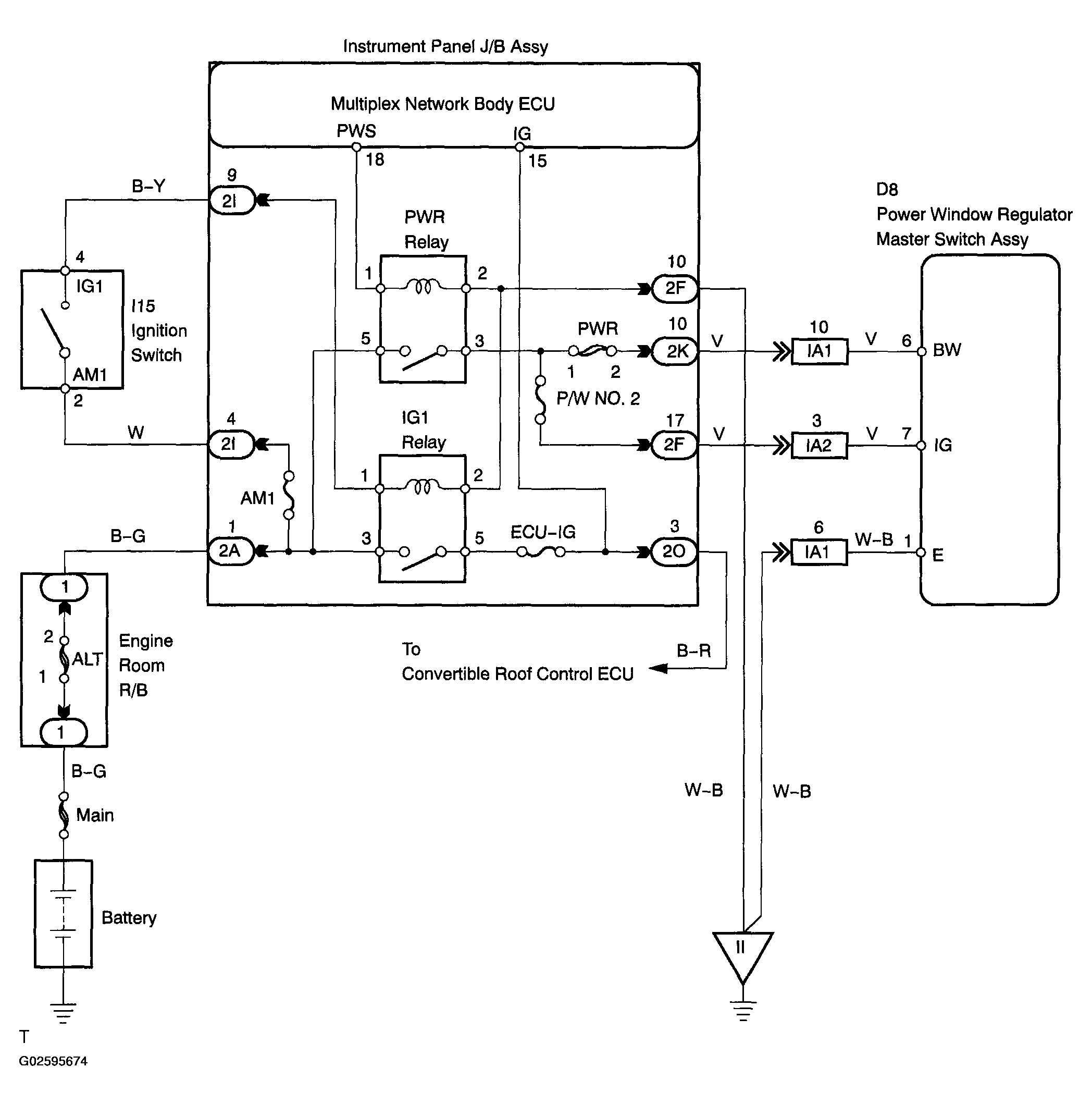

Fig 1: Wiring Diagram - Power Windows Do Not Operate Using Master Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
