Power Window Control System (Convertible) - Diagnostics
›
System Diagram
System Diagram

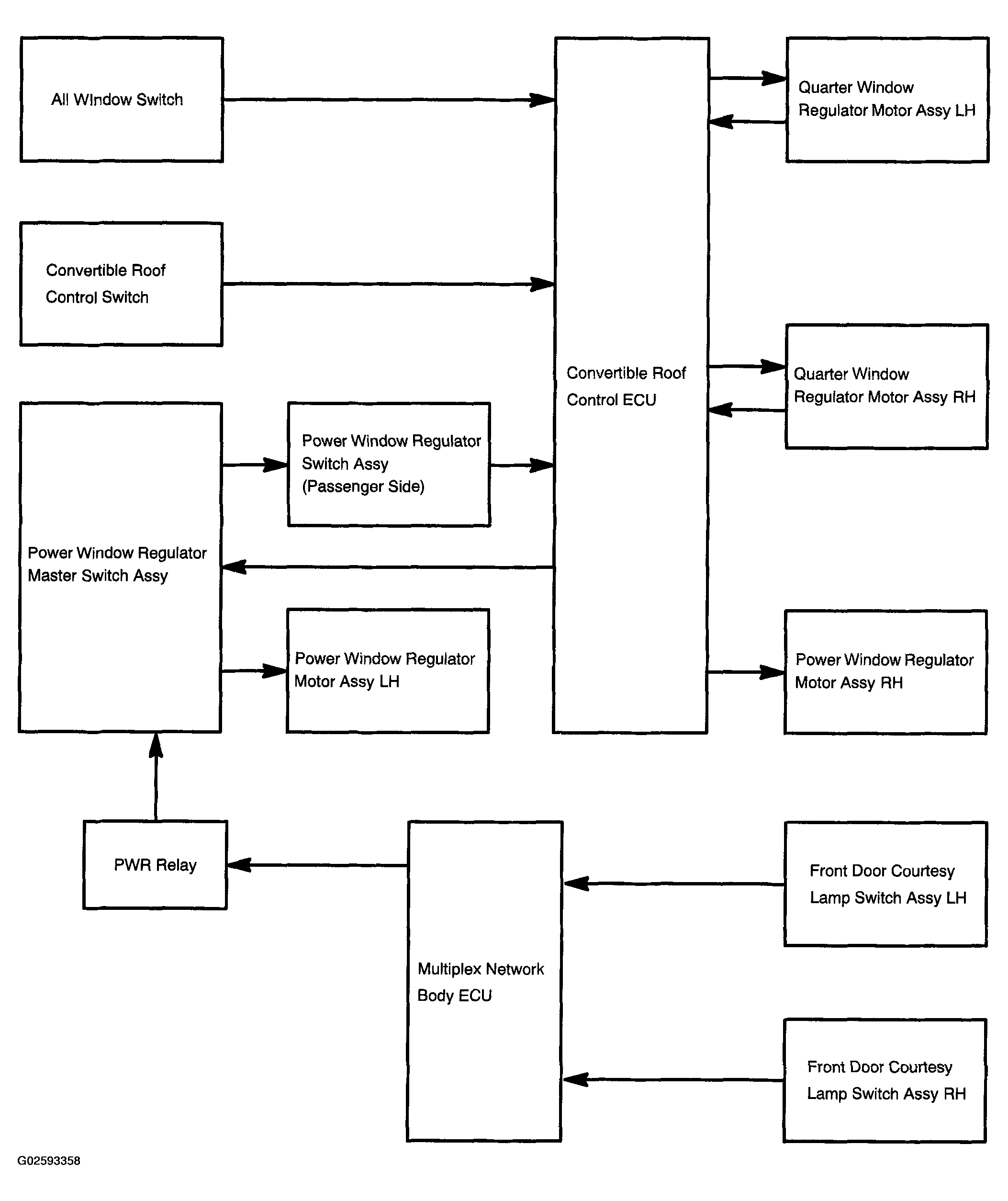

Fig 1: Power Window Control System Diagram (Convertible)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
