FixVault
Home
›
Toyota
›
2005
›
Camry Solara SLE, 2D Convertible
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Windshield/WINDOWGLASS/Mirror
›
Quarter Window ASSY (Convertible)
›
Components
Quarter Window ASSY (Convertible): Components

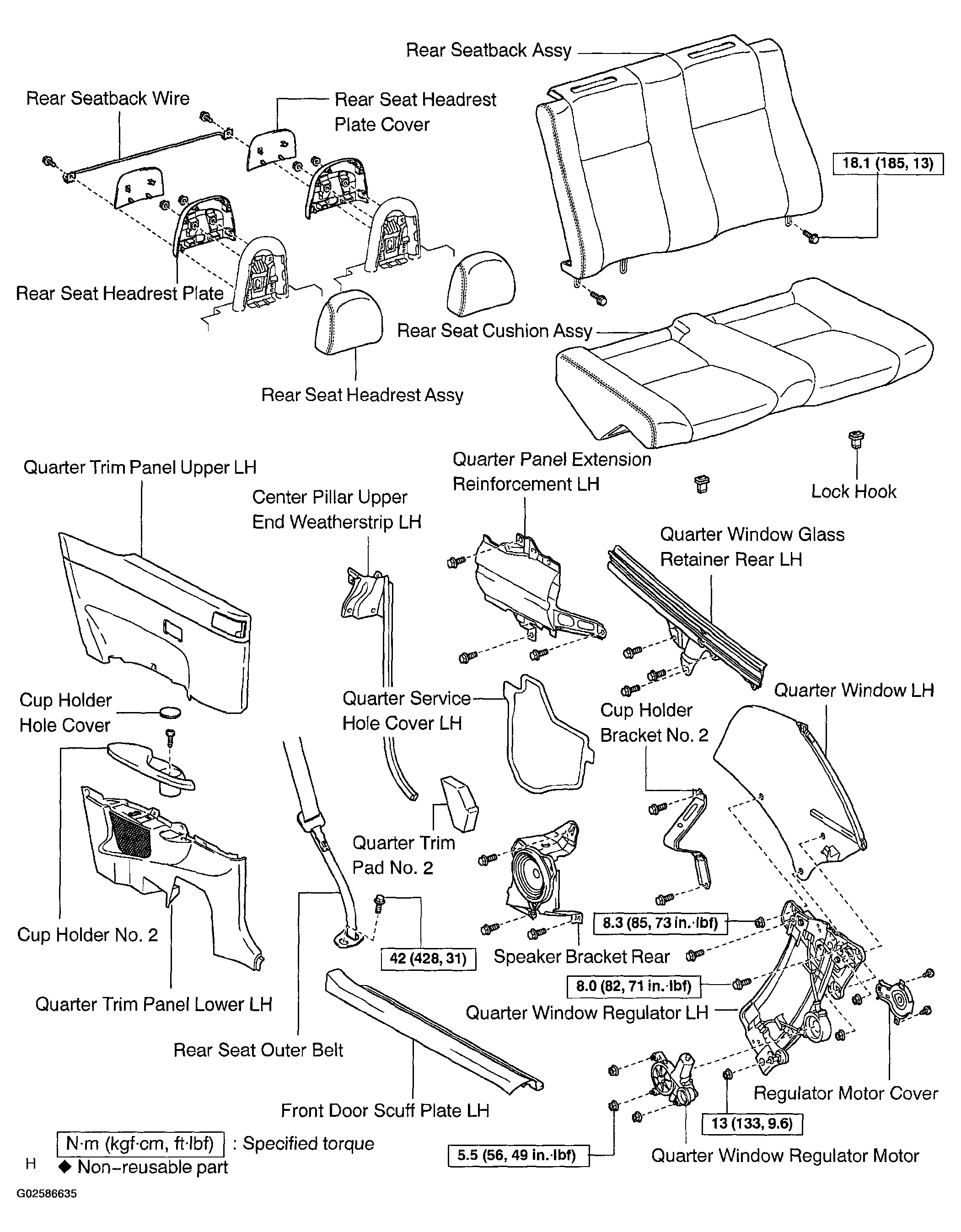

Fig 1: Quarter Window Assy (Convertible) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
