Manual Transmission/Transaxle: Preparation: SST

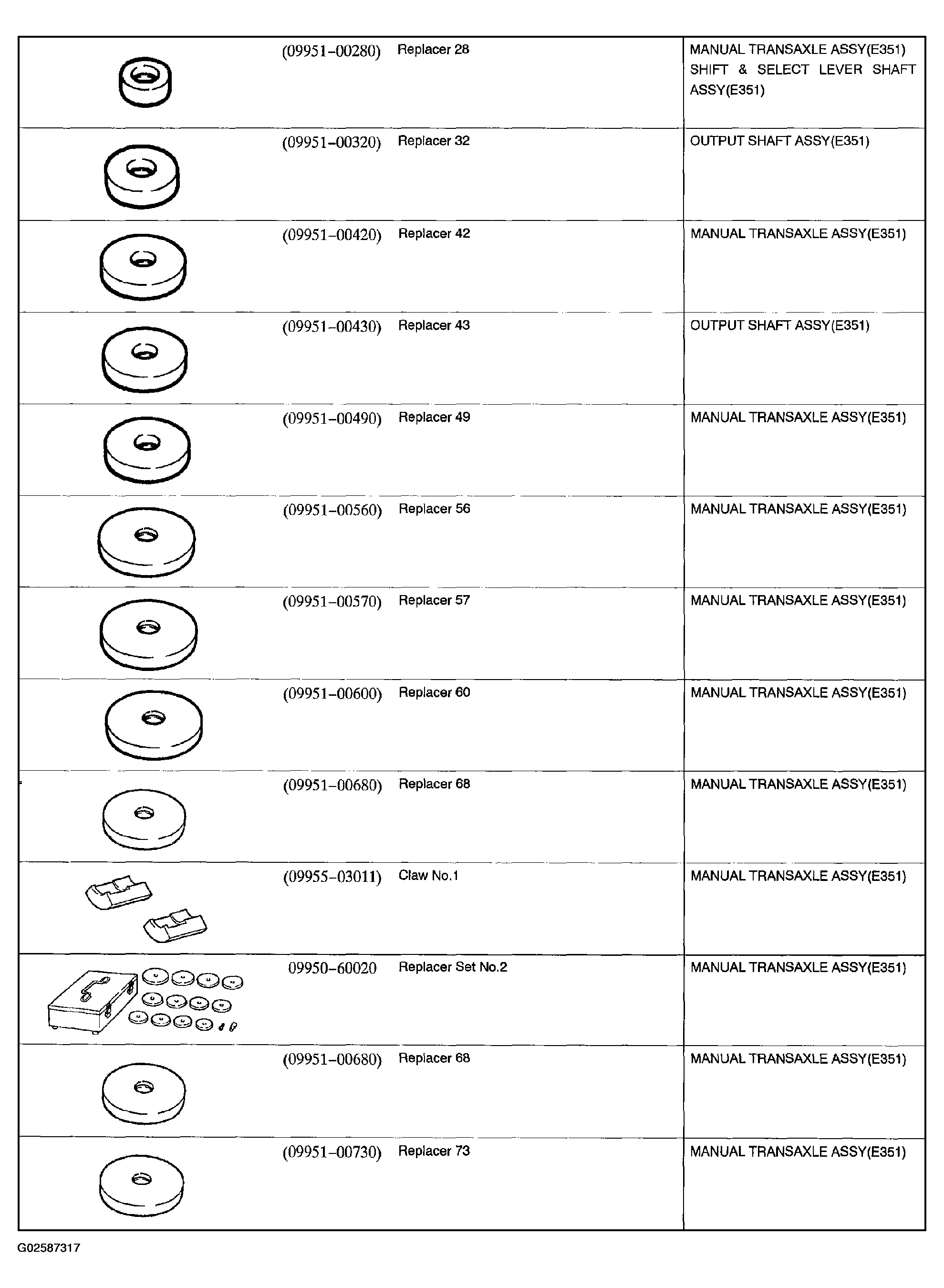

Fig 1: Manual Transmission/Transaxle Special Tool Description Chart (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

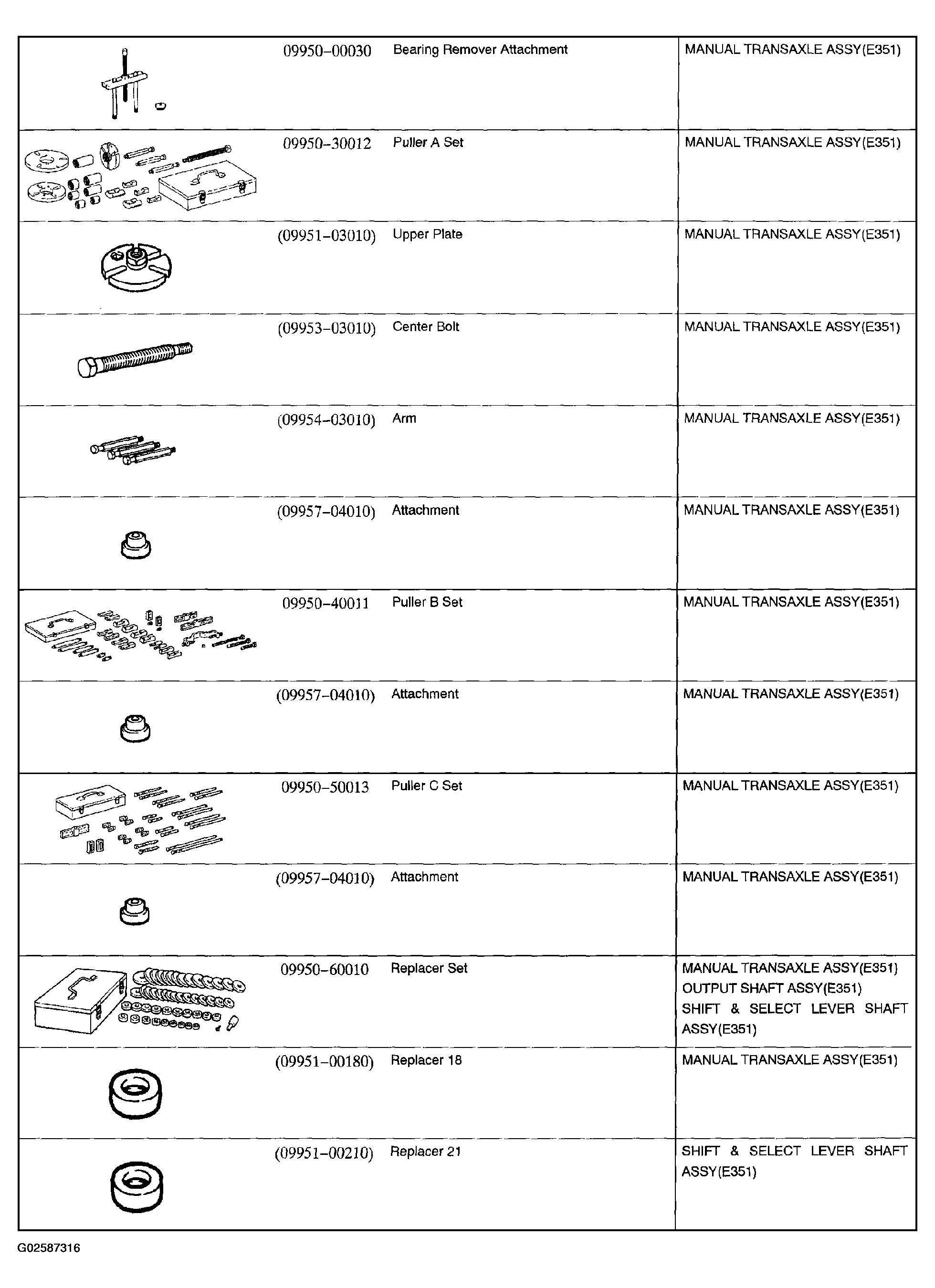

Fig 2: Manual Transmission/Transaxle Special Tool Description Chart (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

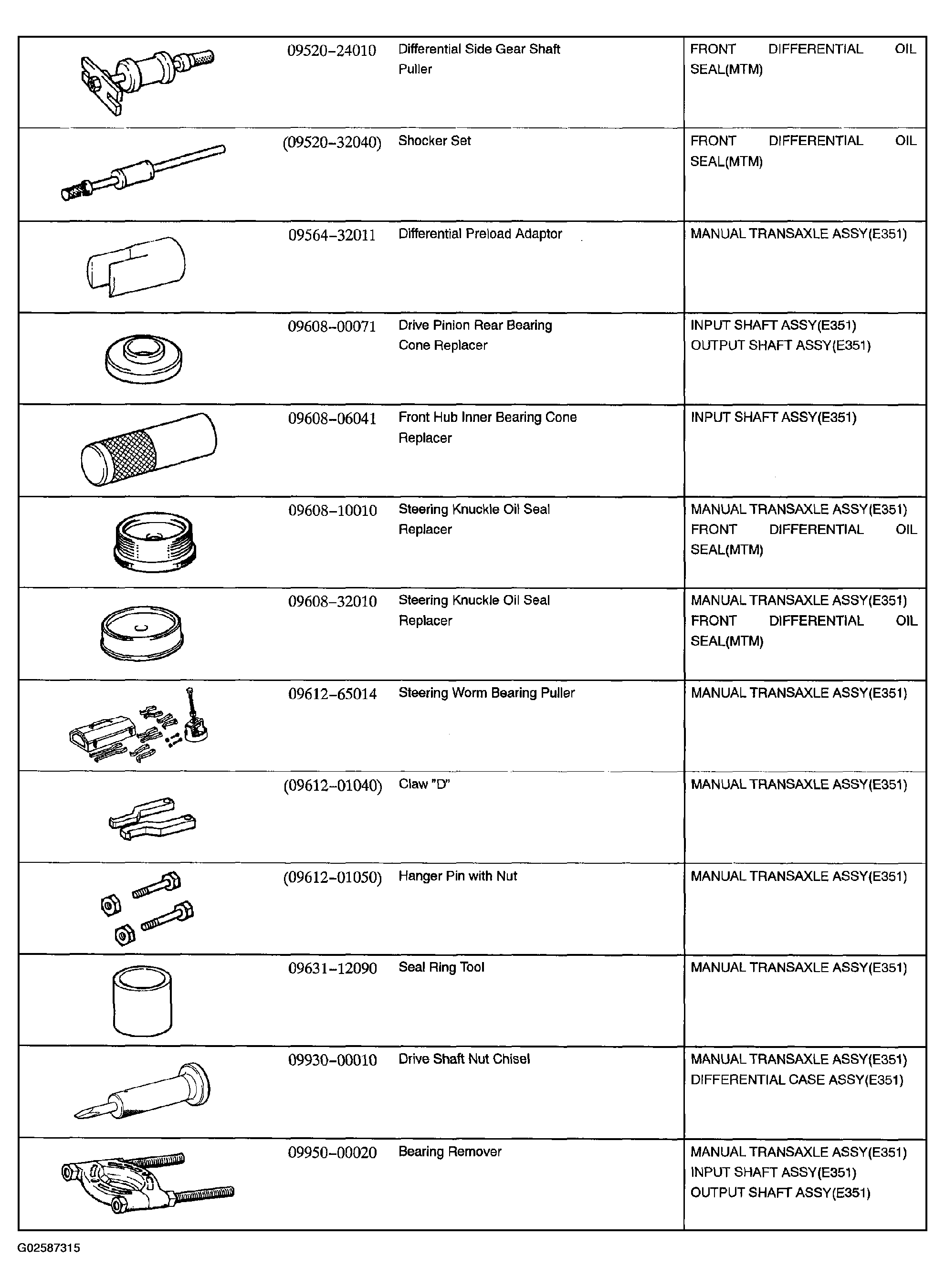

Fig 3: Manual Transmission/Transaxle Special Tool Description Chart (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

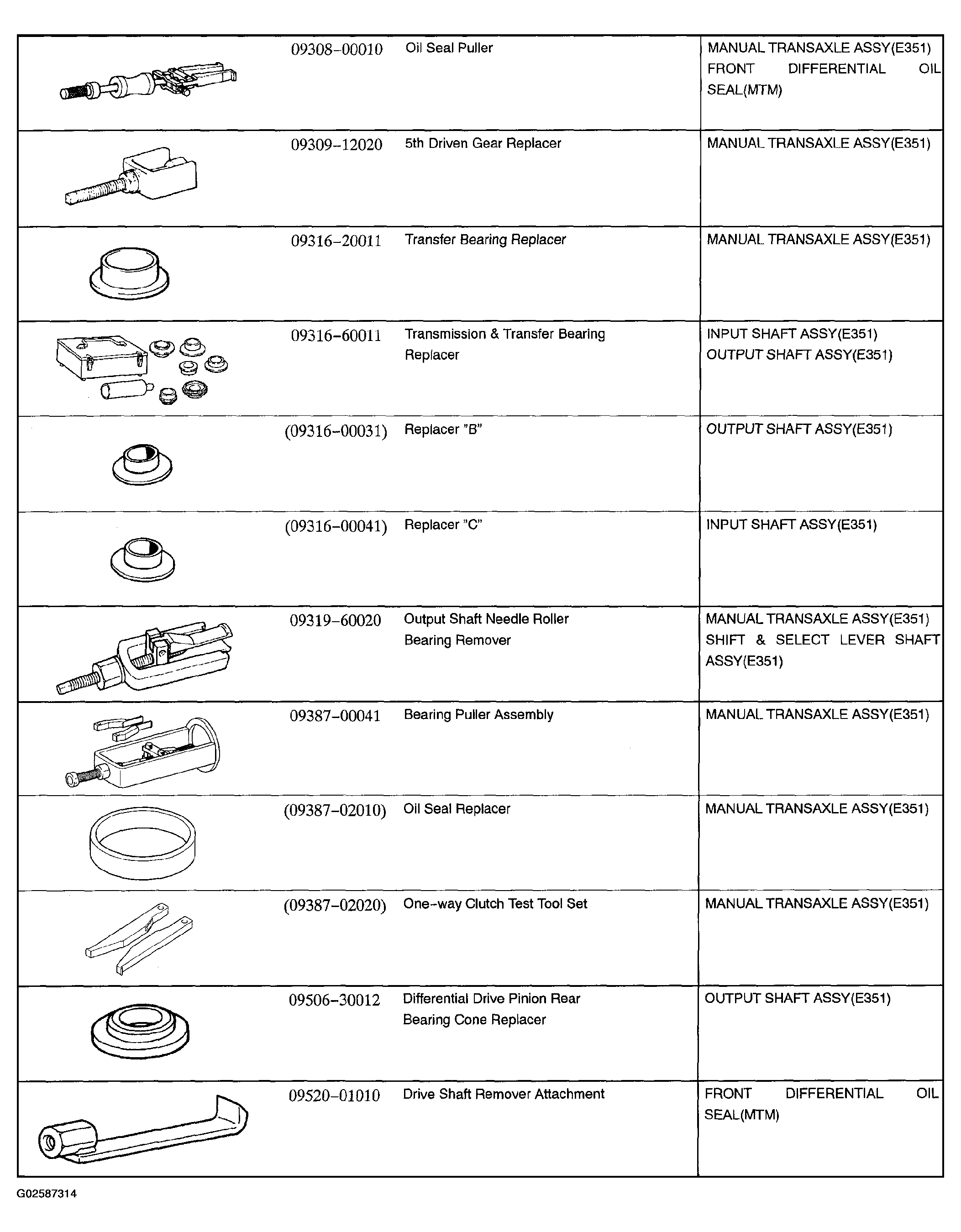

Fig 4: Manual Transmission/Transaxle Special Tool Description Chart (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

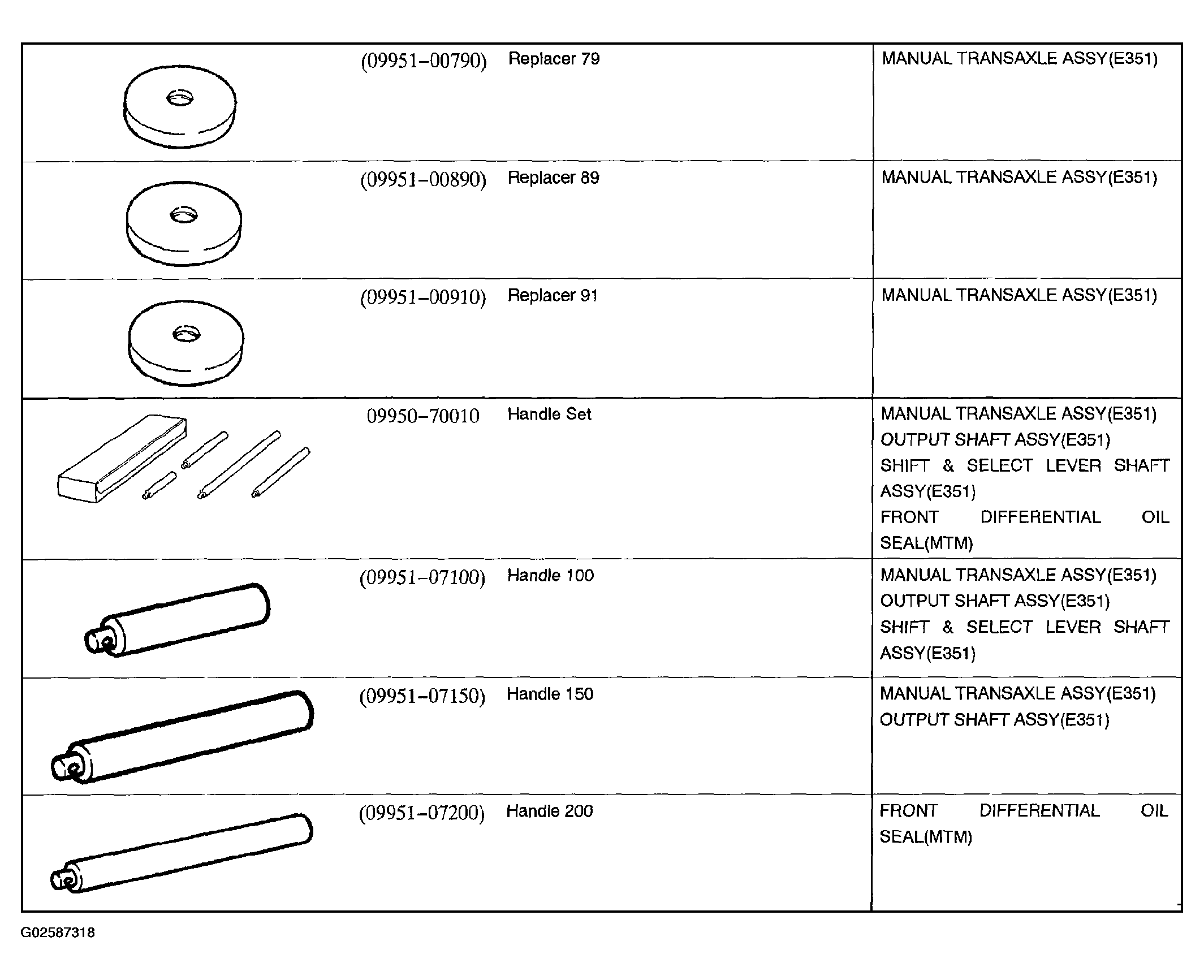

Fig 5: Manual Transmission/Transaxle Special Tool Description Chart (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
