Crankshaft Position Sensor (2AZ-FE): Replacement

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE ENGINE UNDER COVER RH

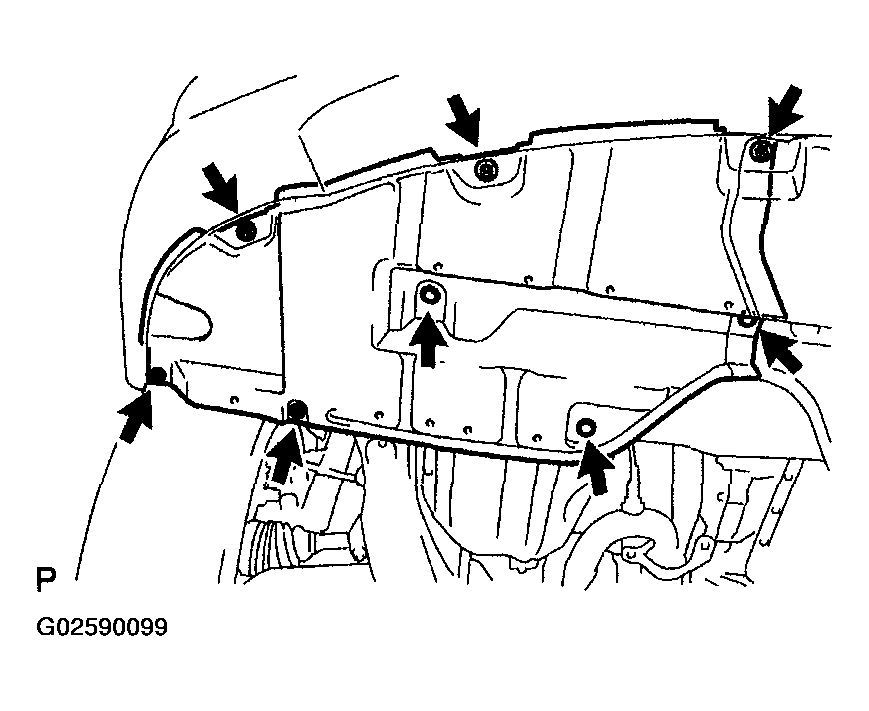

   1. Remove the 5 screws, 3 clips and under cover.
   Fig 1: Removing Engine Under Cover RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. REMOVE FRONT FENDER APRON SEAL RH

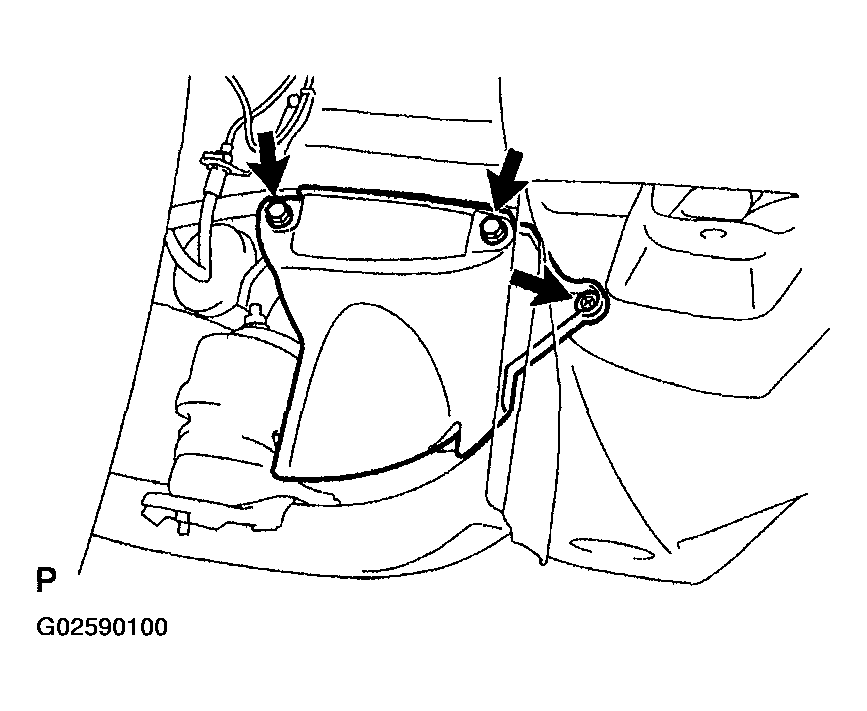

   1. Remove the clip, 2 bolts and apron seal.
   Fig 2: Removing Front Fender Apron Seal RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE CRANKSHAFT POSITION SENSOR

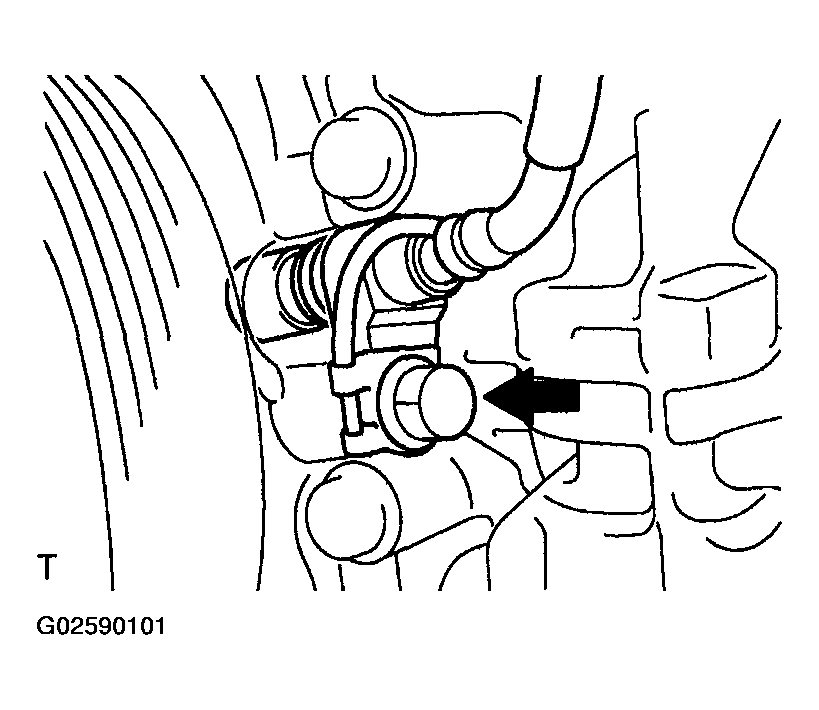

   1. Disconnect the sensor connector.
   2. Remove the bolt, clamp and sensor.
   Fig 3: Removing Crankshaft Position Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL CRANKSHAFT POSITION SENSOR

   Torque: 9.0 N.m (92 kgf.Cm, 80 in.lbf)

5. INSTALL FRONT FENDER APRON SEAL RH
6. INSTALL ENGINE UNDER COVER RH
