Ignition System (2AZ-FE)
›
System Diagram
System Diagram
Ignition timing is determined by the ECM based on signals from various sensors.

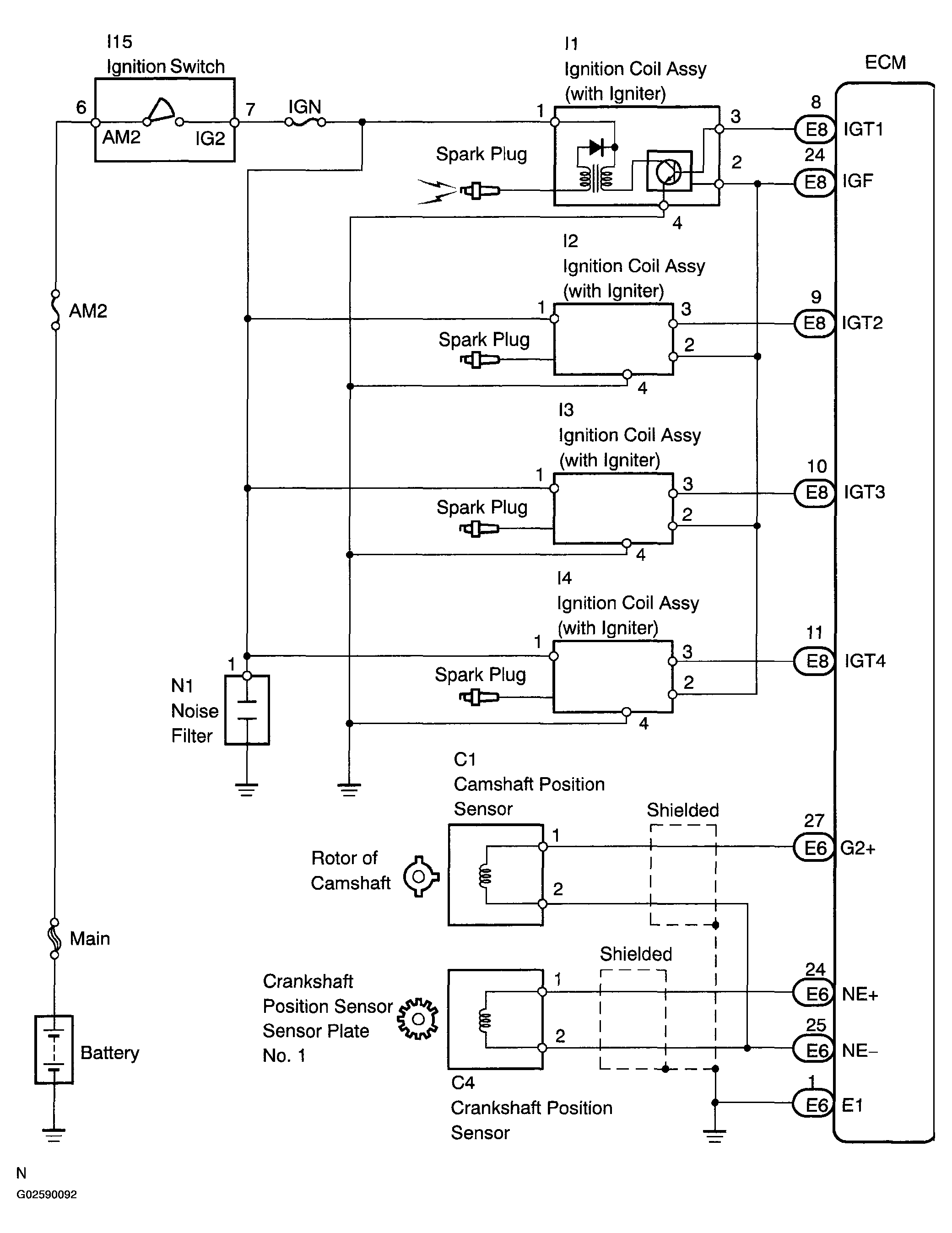

Fig 1: System Diagram of Ignition System (2AZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
