On-Vehicle Inspection

NOTE: In the following section, the terms "cold" and "hot" refer to the temperature of the coils. "Cold" means approximately -10°C (14°F) to 50°C (122°F). "Hot" means approximately 50°C (122°F) to 100°C (212°F).

INSPECT IGNITION COIL ASSY (WITH IGNITER) AND PERFORM SPARK TEST
1. Check for DTCs.
  NOTE: If a DTC is present, perform a troubleshooting in accordance with the procedure for that DTC.
2. Check if sparks occur.
  1. Remove the V-bank cover (see REPLACEMENT ).
  2. Remove the engine cover No. 1 (see REPLACEMENT ).
  3. Remove the ignition coils.
  4. Using a 16 mm plug wrench, remove the spark plugs.
  5. Install the spark plugs to each ignition coil and connect the ignition coil connectors.
  6. Disconnect the 6 injector connectors.
  7. Ground the spark plugs.
  8. Check if sparks occur at each spark plug while the engine is being cranked.
    NOTE: Do not crank the engine for more than 2 seconds.

    If the sparks do not occur, do the following test:

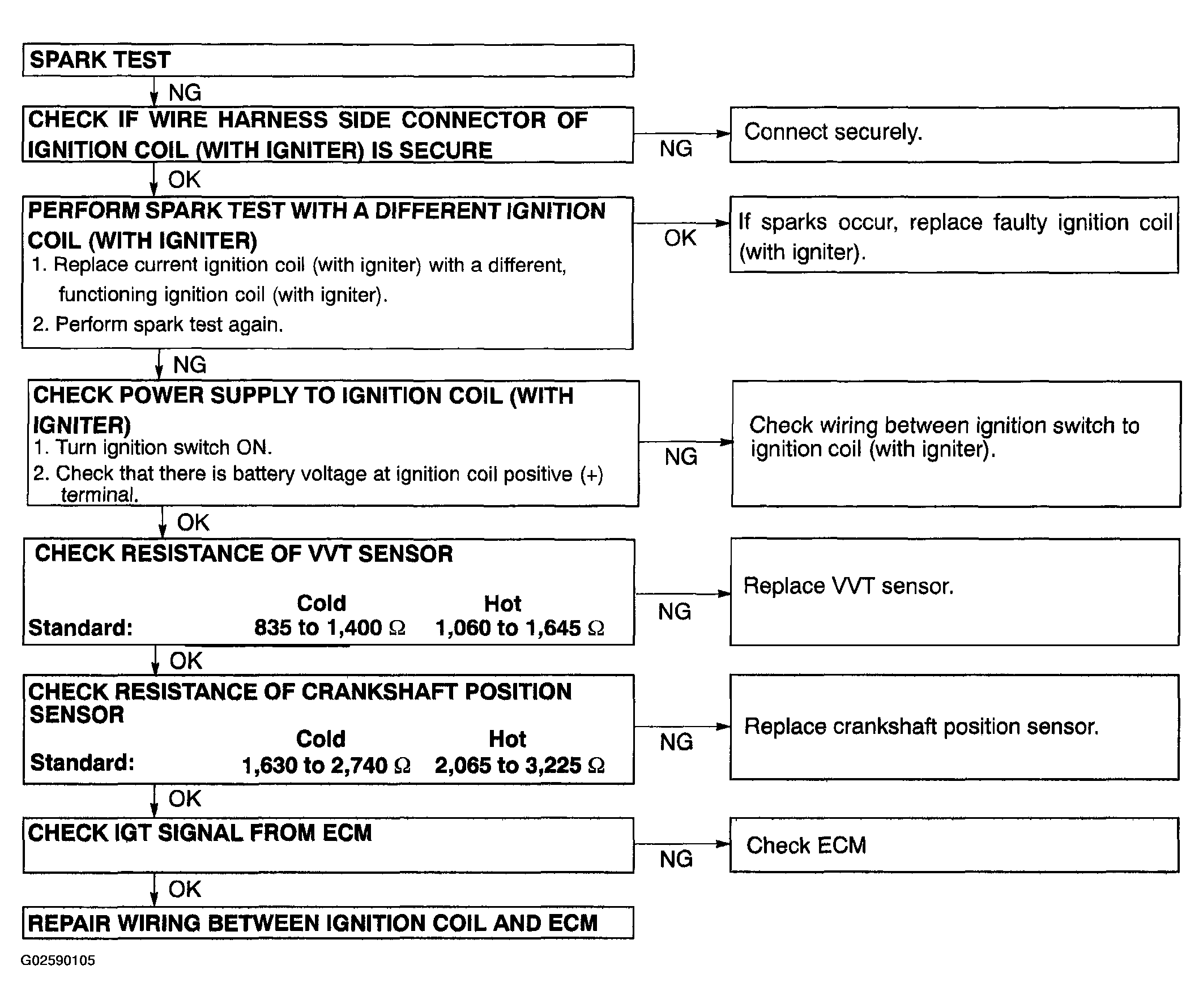

    Fig 1: Flow Chart Of Spark Test
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Using a 16 mm plug wrench, install the spark plugs.
    Torque: 25 N.m (255 kgf.Cm, 18 ft-lbf)
  10. Install the ignition coil.
    Torque: 8.0 N.m (82 kgf.Cm, 71 in.lbf)
  11. Install the intake air surge tank (see REPLACEMENT ).
  12. Install the V-bank cover (see REPLACEMENT ).
