ECM (3MZ-FE): Replacement

DISCONNECT BATTERY NEGATIVE TERMINAL
REMOVE FRONT DOOR SCUFF PLATE RH (See REPLACEMENT )
REMOVE COWL SIDE TRIM SUB-ASSY RH (See REPLACEMENT )
REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1 (See REPLACEMENT )
REMOVE INSTRUMENT PANEL FINISH LOWER PANEL RH (See REPLACEMENT )
REMOVE ECM
1. Remove the 2 wire harness clamps.
2. Disconnect the 5 ECM connectors.
3. Remove the 2 nuts and ECM.

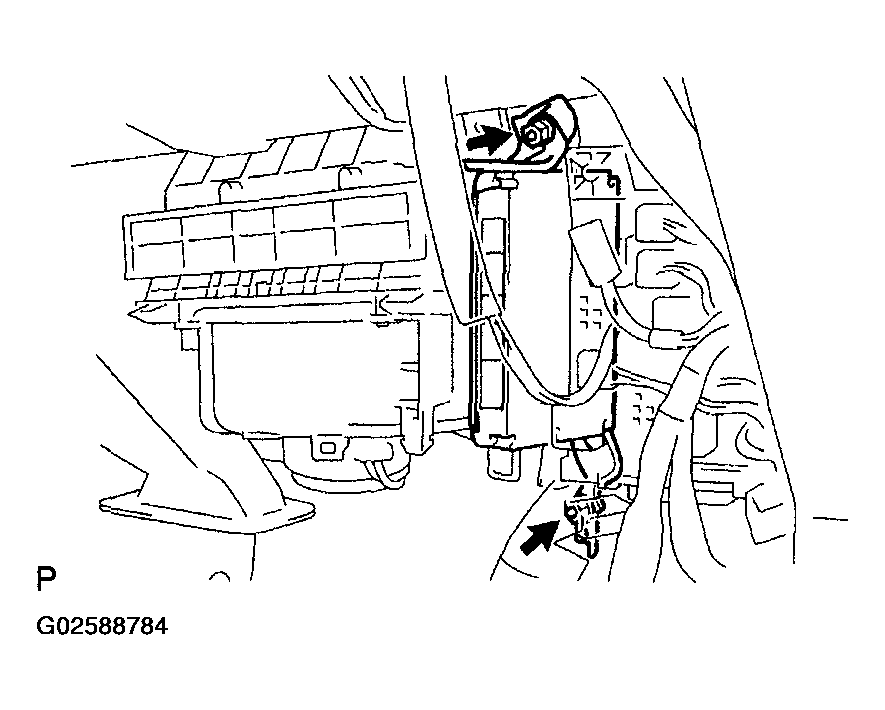

Fig 1: Removing ECM (3MZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM BRACKET
1. Remove the 2 screws and ECM bracket.
Fig 2: Removing ECM Bracket (3MZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ECM BRACKET NO. 2
1. Remove the 2 screws and ECM bracket.
INSTALL ECM BRACKET NO. 2
1. Install the ECM bracket with the 2 screws.
Fig 3: Removing/Installing ECM Bracket No. 2 (3MZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ECM BRACKET
1. Install the ECM bracket with the 2 screws.
Fig 4: Installing ECM Bracket (3MZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ECM
1. Install the 2 wire harness clamps.
2. Connect the 5 ECM connectors.
3. Install the ECM with the 2 nuts.
  Torque: 5.5 N.m (56 kgf.Cm, 49 in.lbf)
Fig 5: Installing ECM (3MZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INSTRUMENT PANEL FINISH LOWER PANEL RH (See REPLACEMENT )
INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSY NO. 1 (See REPLACEMENT )
INSTALL COWL SIDE TRIM SUB-ASSY RH (See REPLACEMENT )
INSTALL FRONT DOOR SCUFF PLATE RH (See REPLACEMENT )
CONNECT BATTERY NEGATIVE TERMINAL
INITIALIZE SYSTEM (See INITIALIZATION )
