Vehicle Identification And Serial Numbers

  1. VEHICLE IDENTIFICATION NUMBER.
    1. The vehicle identification number is stamped on the vehicle identification number plate and certification label, as shown in the illustration.

      A: Vehicle Identification Number Plate

      B: Certification Label

    Fig 1: Identifying Vehicle Identification Number Plate
    G02587208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

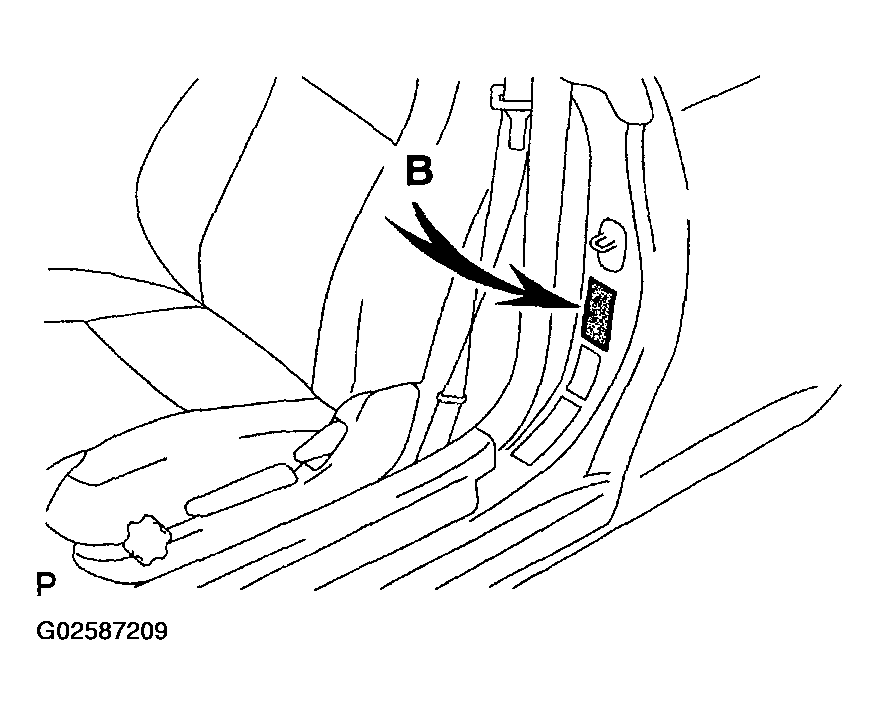

    Fig 2: Identifying Certification Label
    G02587209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER
    1. The engine serial number is stamped on the cylinder block of the engine and the transmission serial number is stamped on the housing as shown in the illustration.

      A: 3MZ-FE

      B: 2AZ-FE

      C: U151E, U241E

      D: E351

      E: U151E, U241E

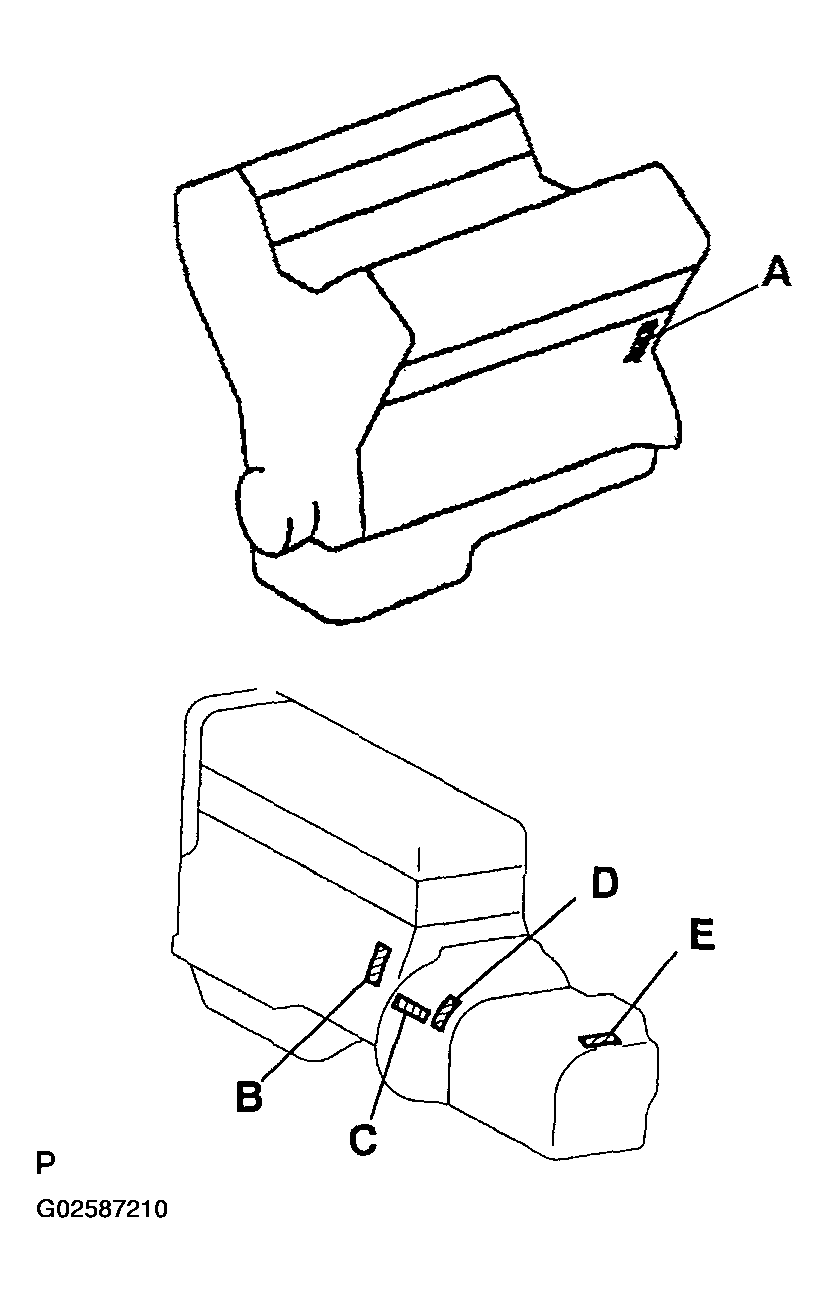

    Fig 3: Identifying Engine Serial Number And Transaxle Serial Number
    G02587210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
