Engine Control Module (ECM): Components

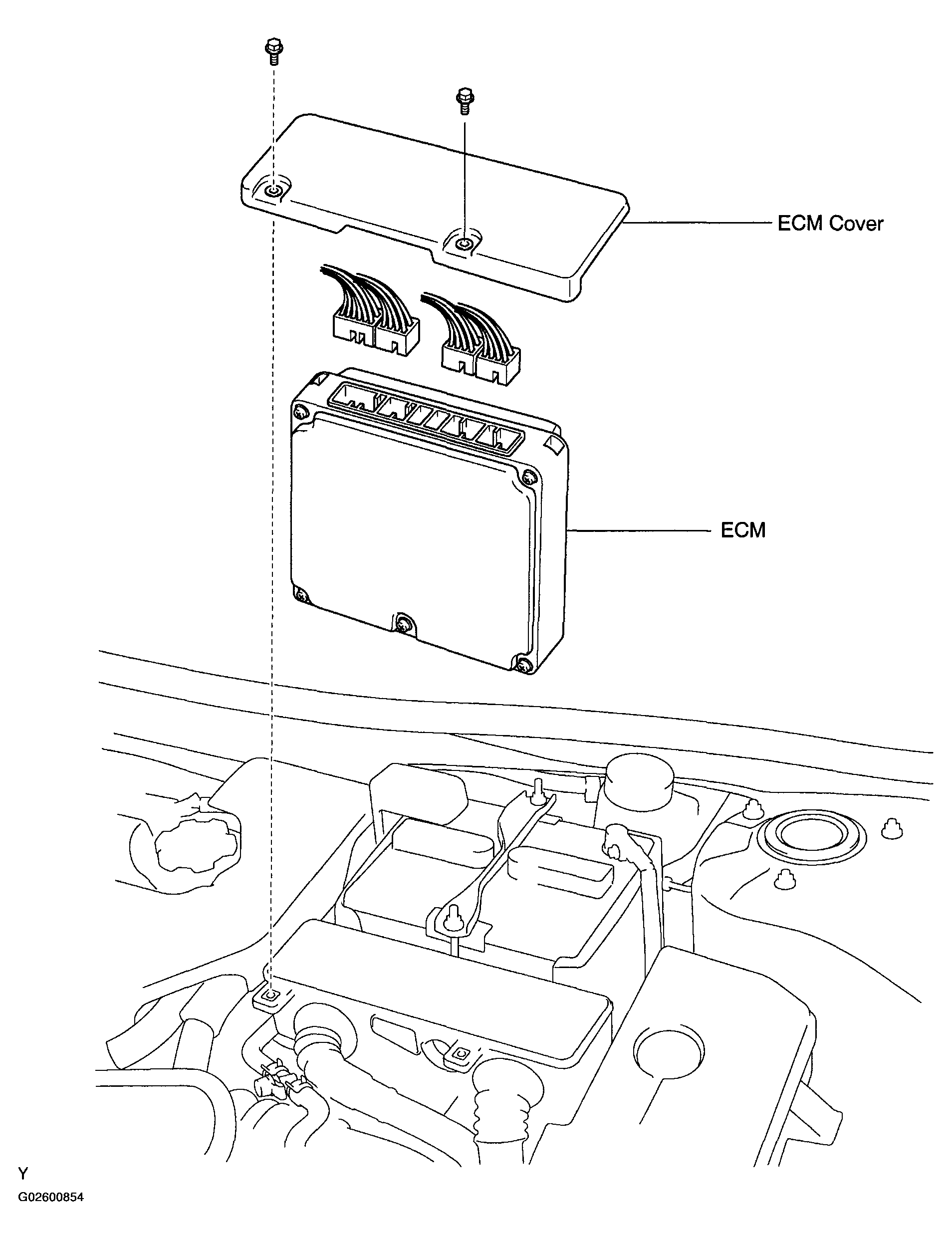

Fig 1: Identifying ECM Components

G02600854

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
