SFI System: Injector: Components

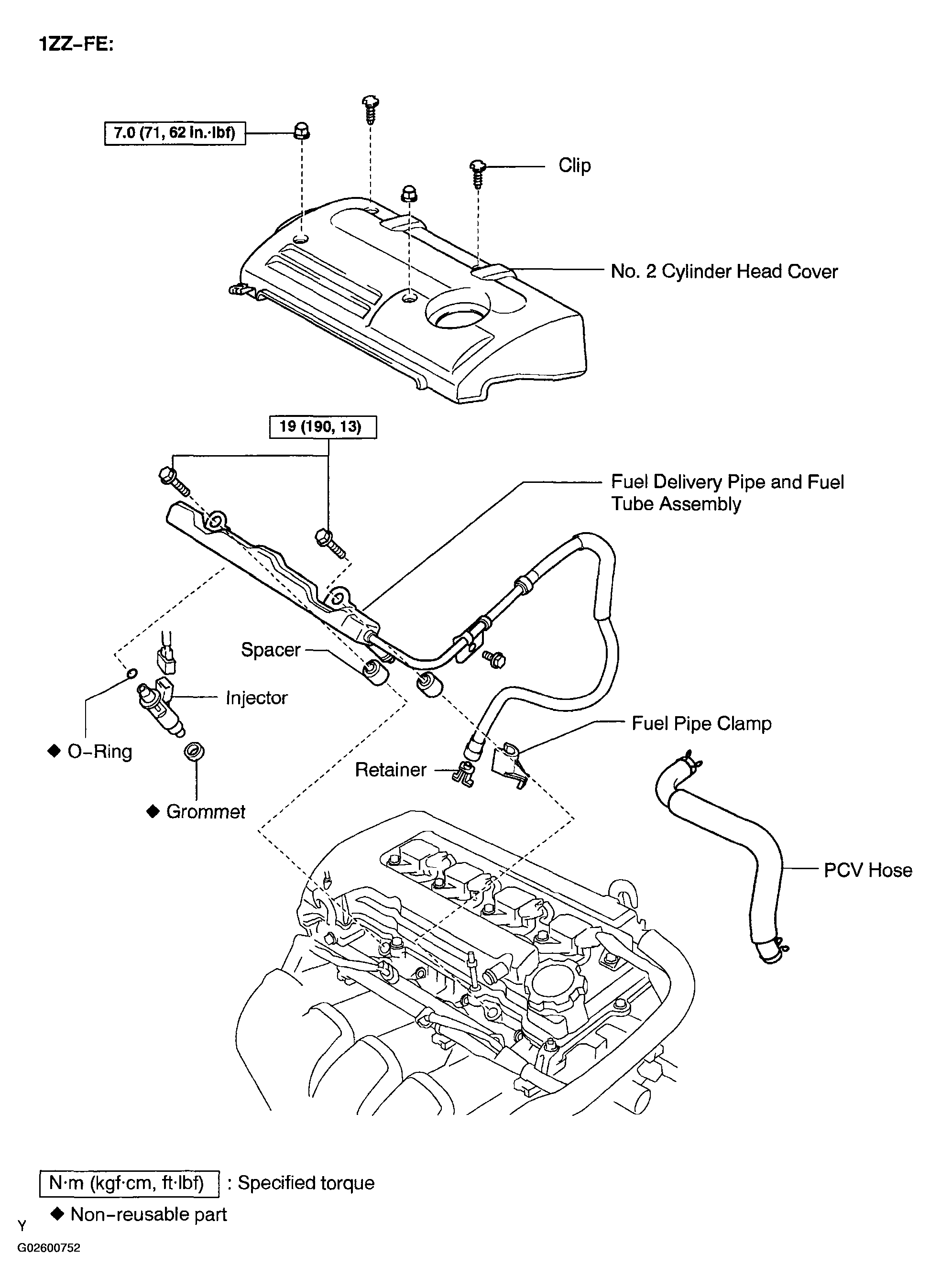

Fig 1: Identifying Injector Components (1ZZ-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

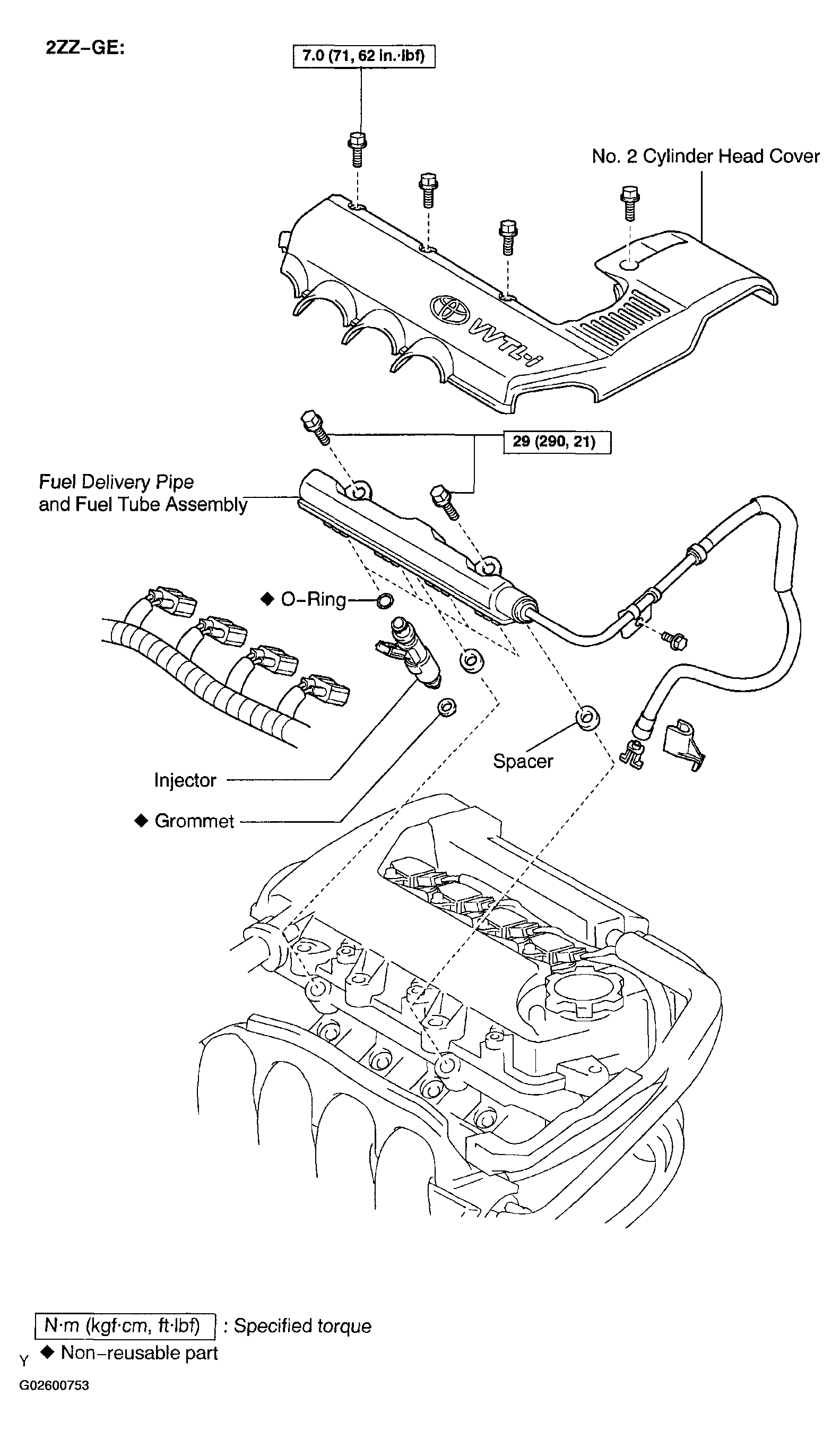

Fig 2: Identifying Injector Components (2ZZ-GE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
