Clock ASSY: Replacement

HINT:

Installation is in the reverse order of removal.

1. REMOVE FRONT ASH RECEPTACLE ASSY
2. REMOVE CONSOLE PANEL UPPER  (SEE REPLACEMENT )
3. REMOVE HEATER CONTROL KNOB
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL  (SEE REPLACEMENT )
5. REMOVE CLOCK ASSY
   1. Using a screwdriver, disengage the 4 claws, remove the clock as shown in the illustration.

   HINT:

   Tape the screwdriver tip before use.

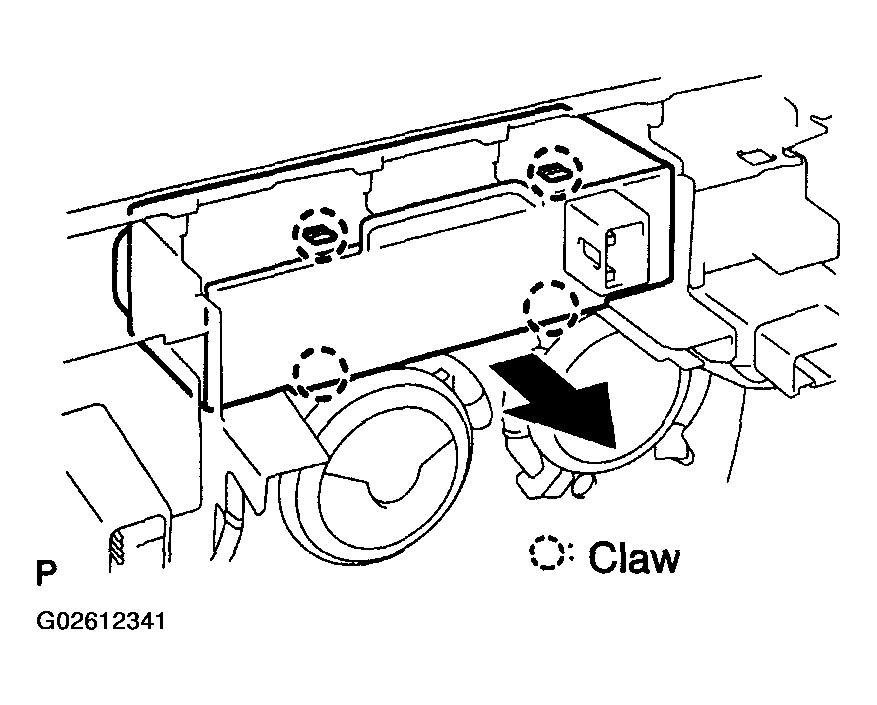

   Fig 1: Removing Clock Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
