Instrument Panel/Meter: Components

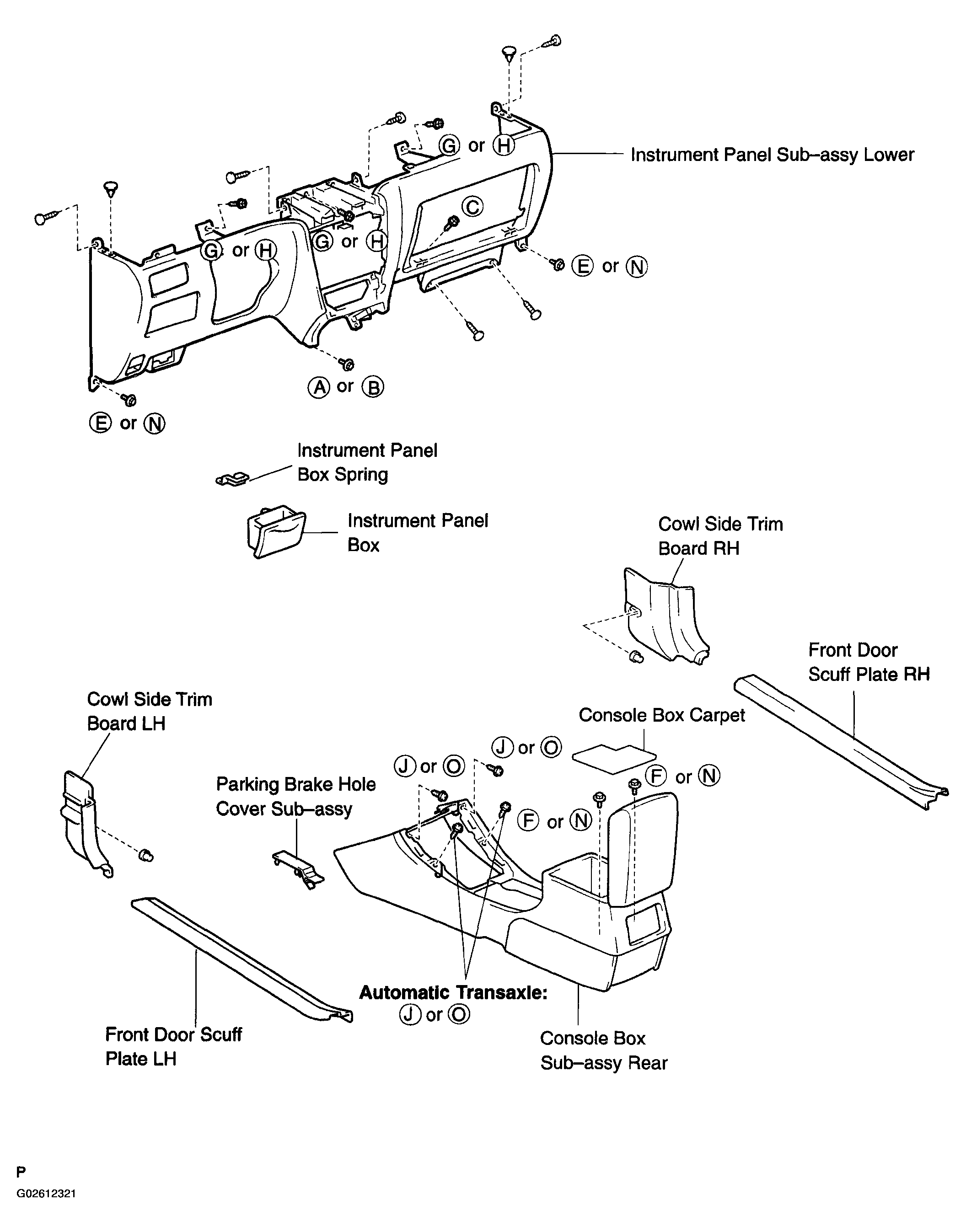

Fig 1: Identifying Instrument Panel/Meter Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

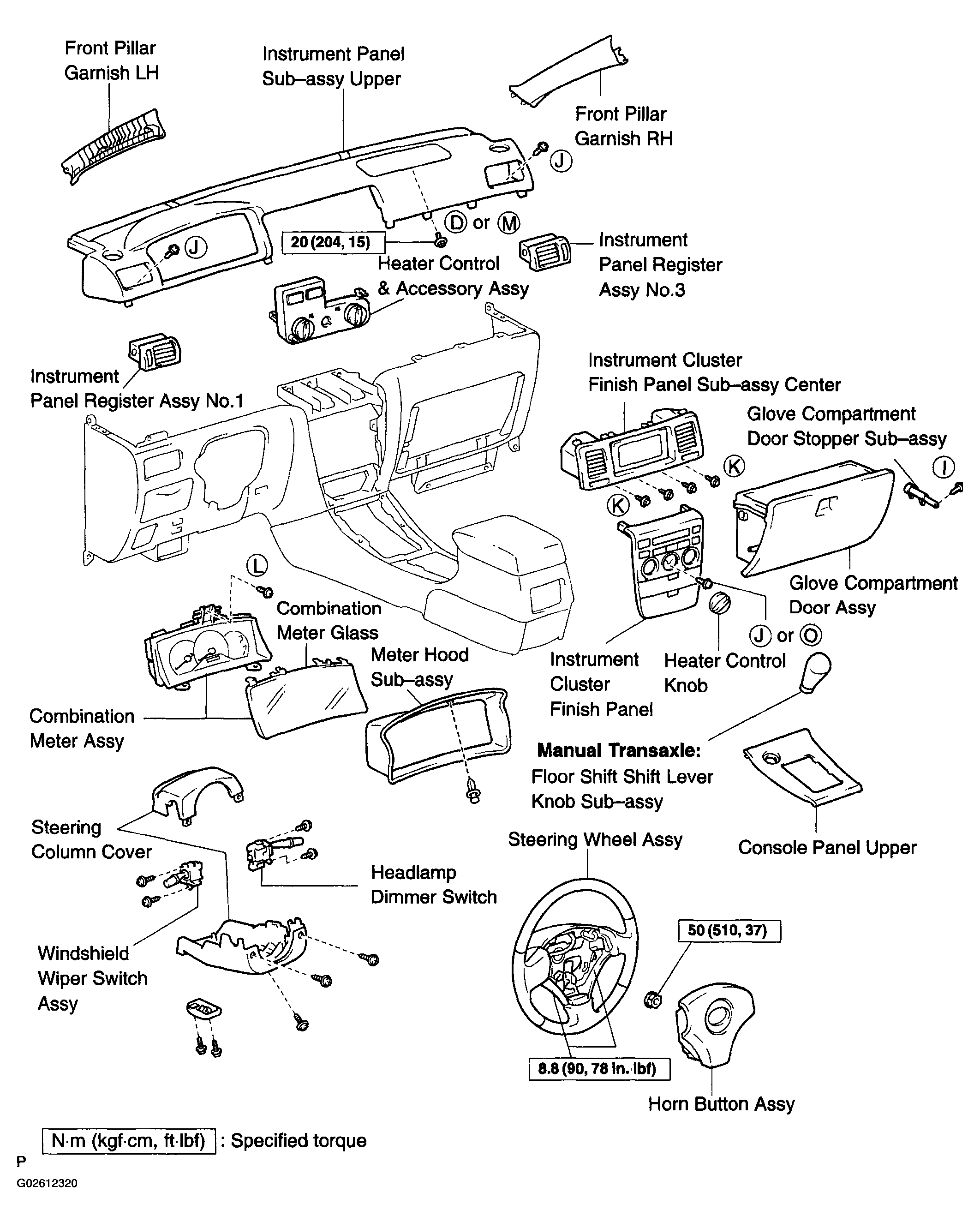

Fig 2: Identifying Instrument Panel/Meter Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
