Oil Pump: Components

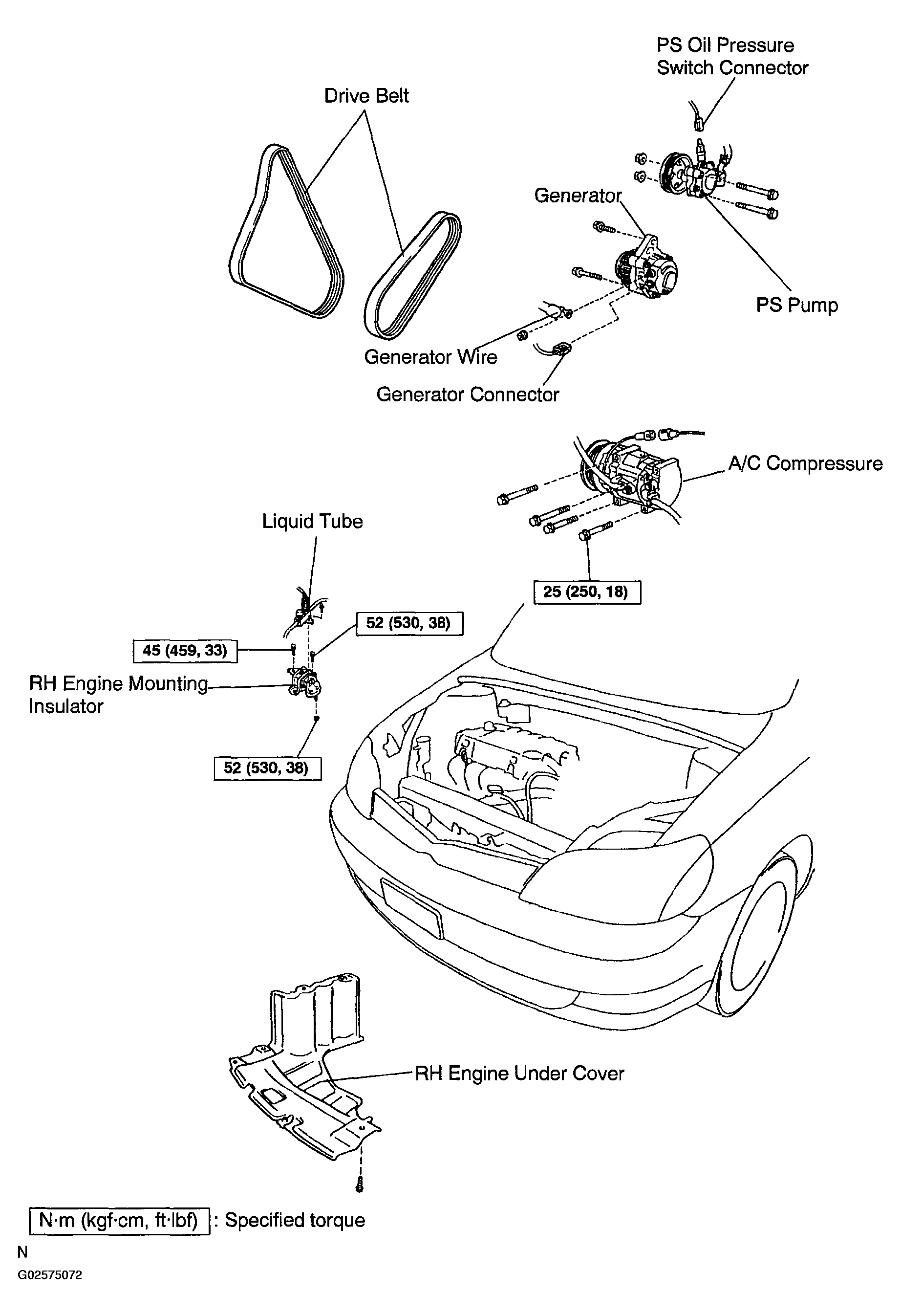

Fig 1: Identifying Oil Pump Components (1 Of 3)
G02575072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

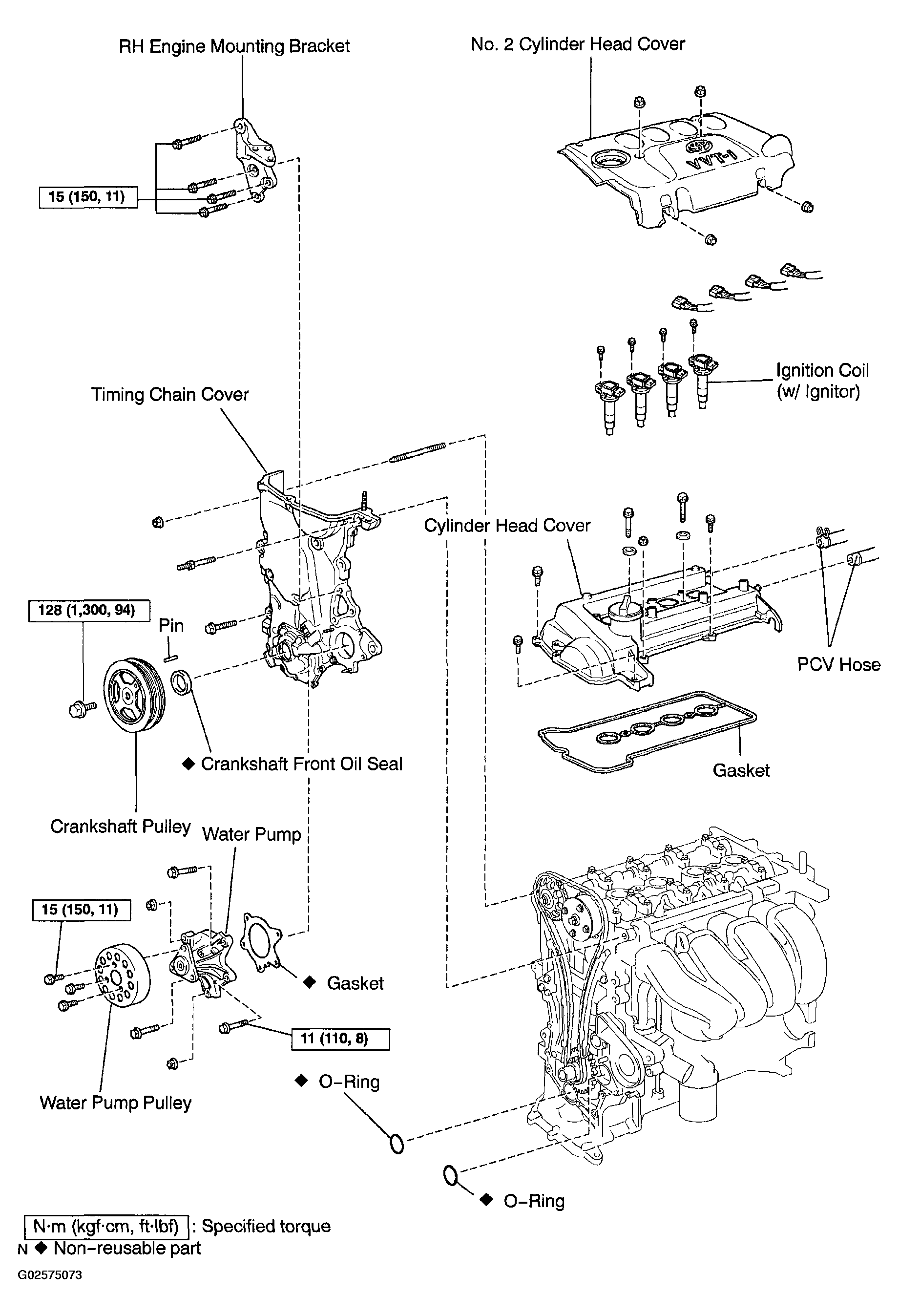

Fig 2: Identifying Oil Pump Components (2 Of 3)
G02575073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

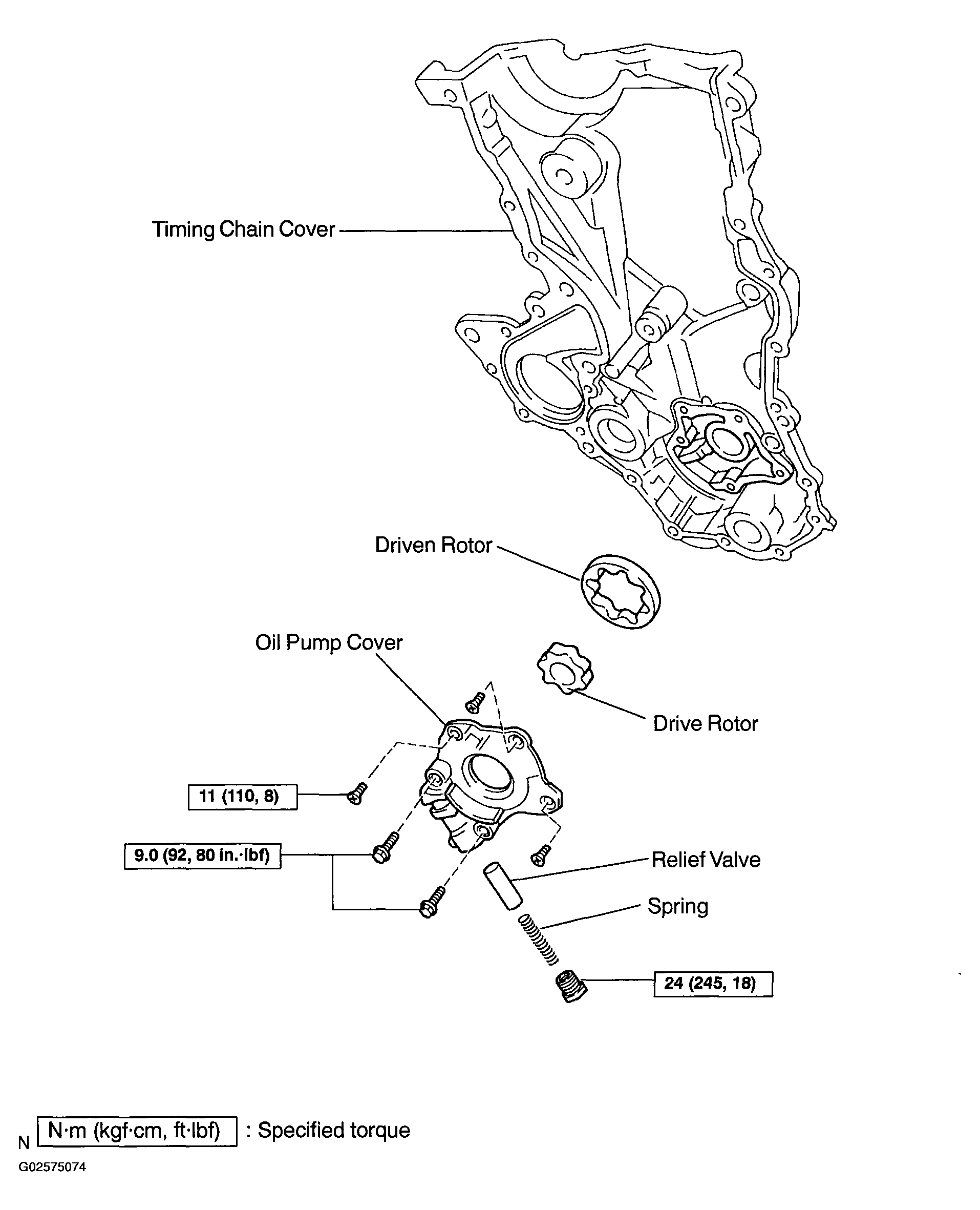

Fig 3: Identifying Oil Pump Components (3 Of 3)
G02575074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
