Camshaft Position Sensor: Removal

Disconnect the connector.
Remove the bolt and camshaft position sensor.
Torque: 8.0 N.m (82 kgf.cm, 71 in..lbf)

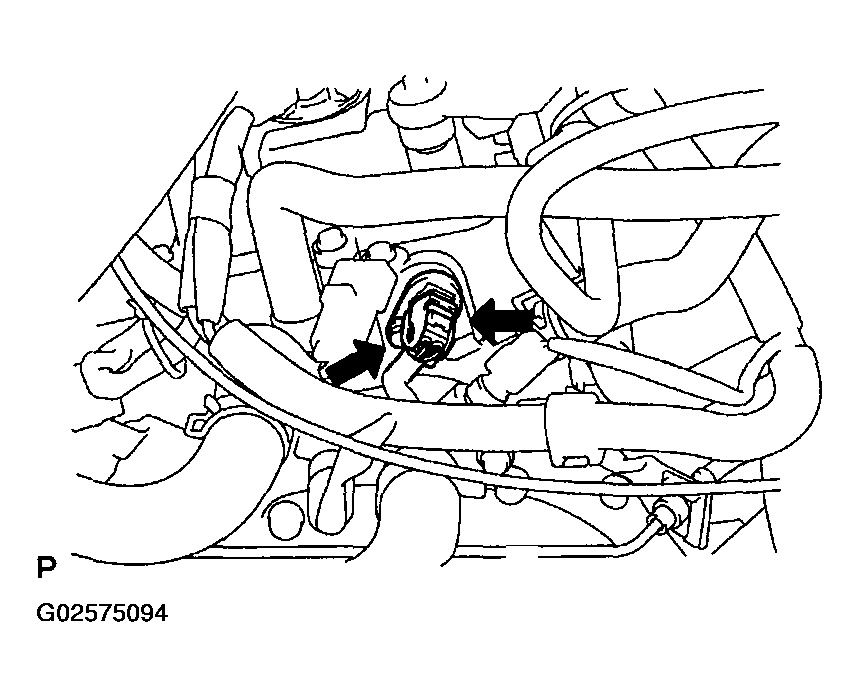

Fig 1: Disconnecting Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
