Toyota
›
2005
›
ECHO 2D Sedan, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine - Diagnostics
›
Parts Location
Parts Location

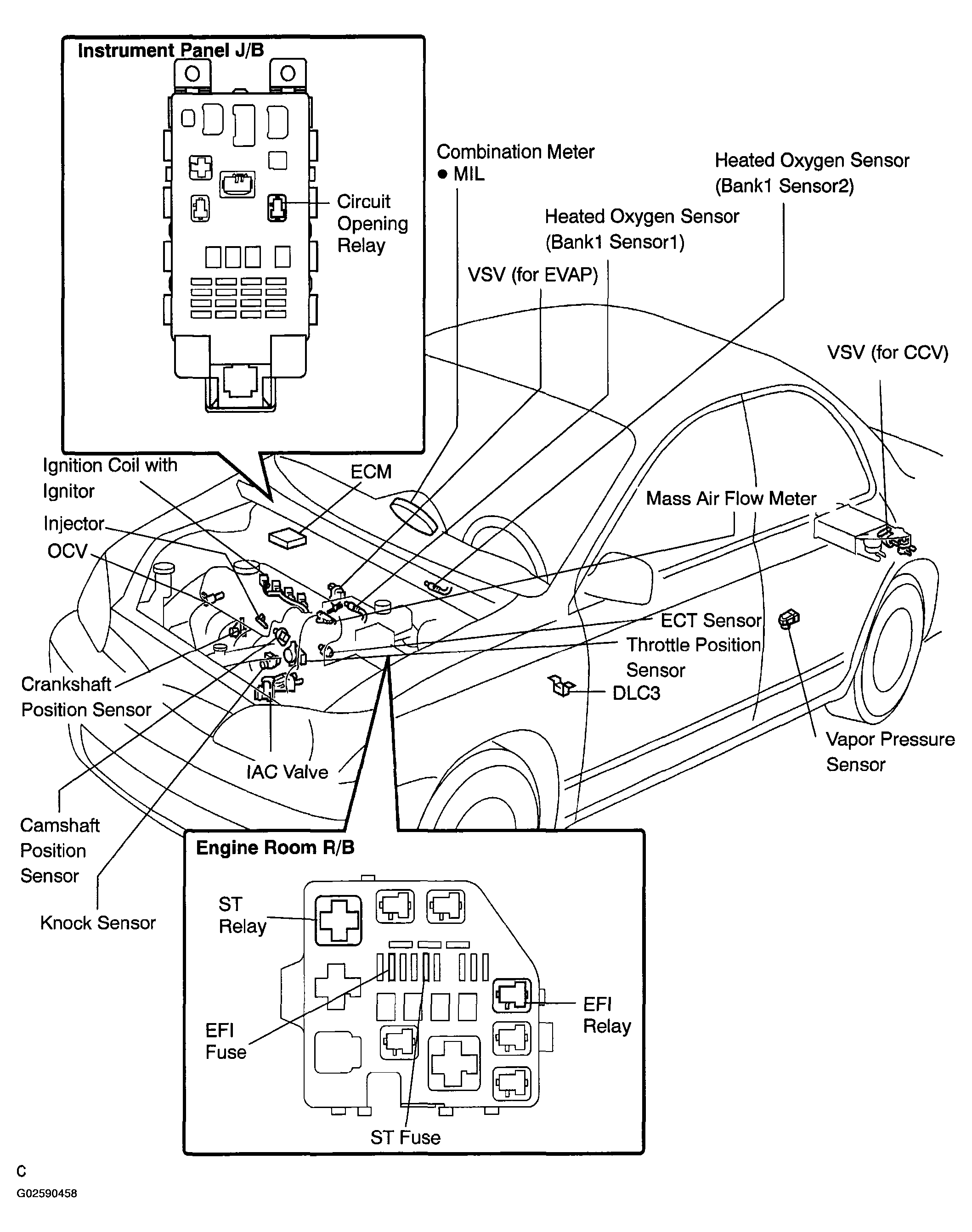

Fig 1: Identifying Parts Location (Instrument Panel J/B And Engine Room R/B)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
