Idle Air Control (IAC) Valve: Components

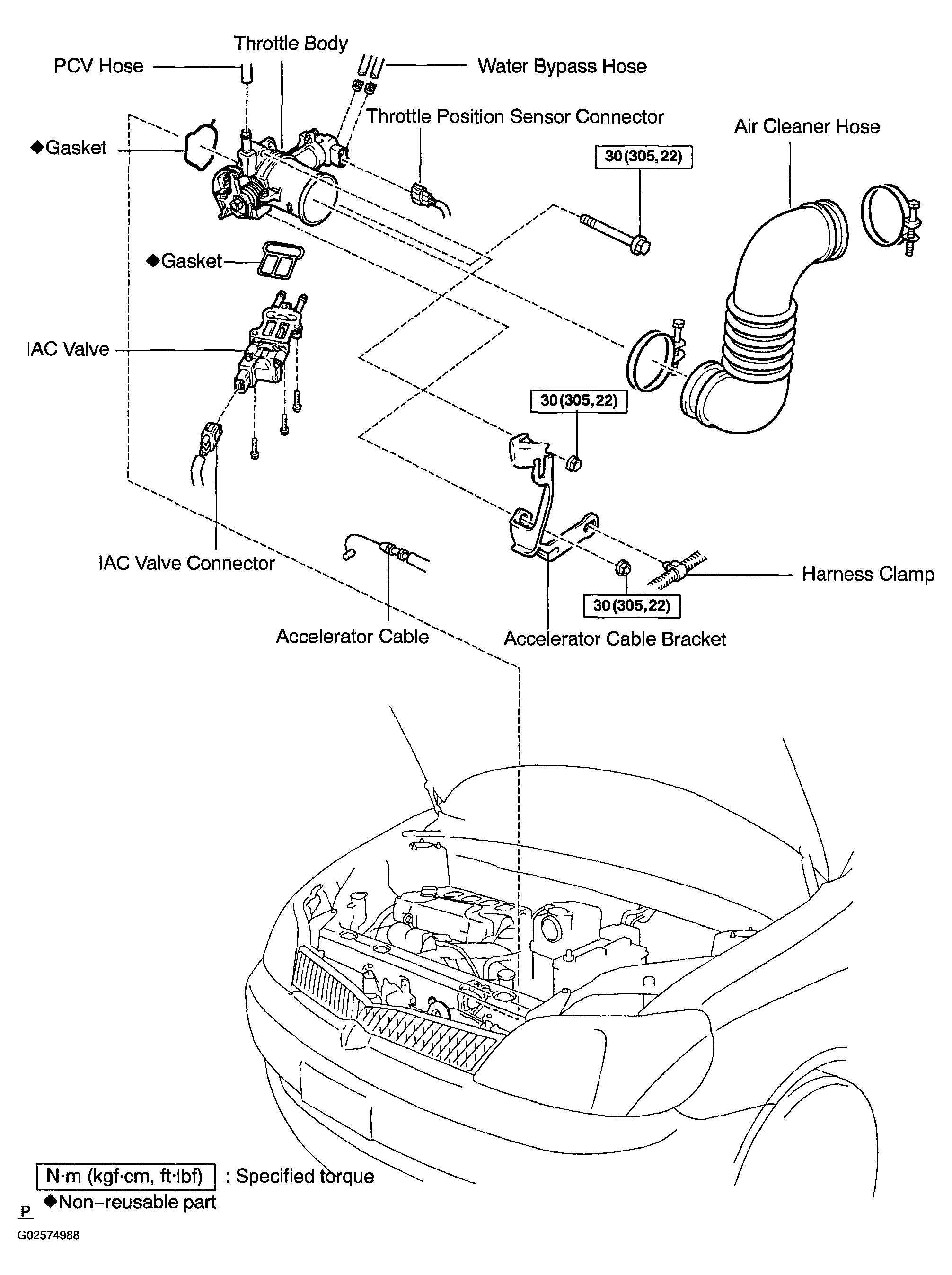

Fig 1: Identifying Idle Air Control (IAC) Valve Components

G02574988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
