Stop Light Switch Circuit: Wiring Diagram

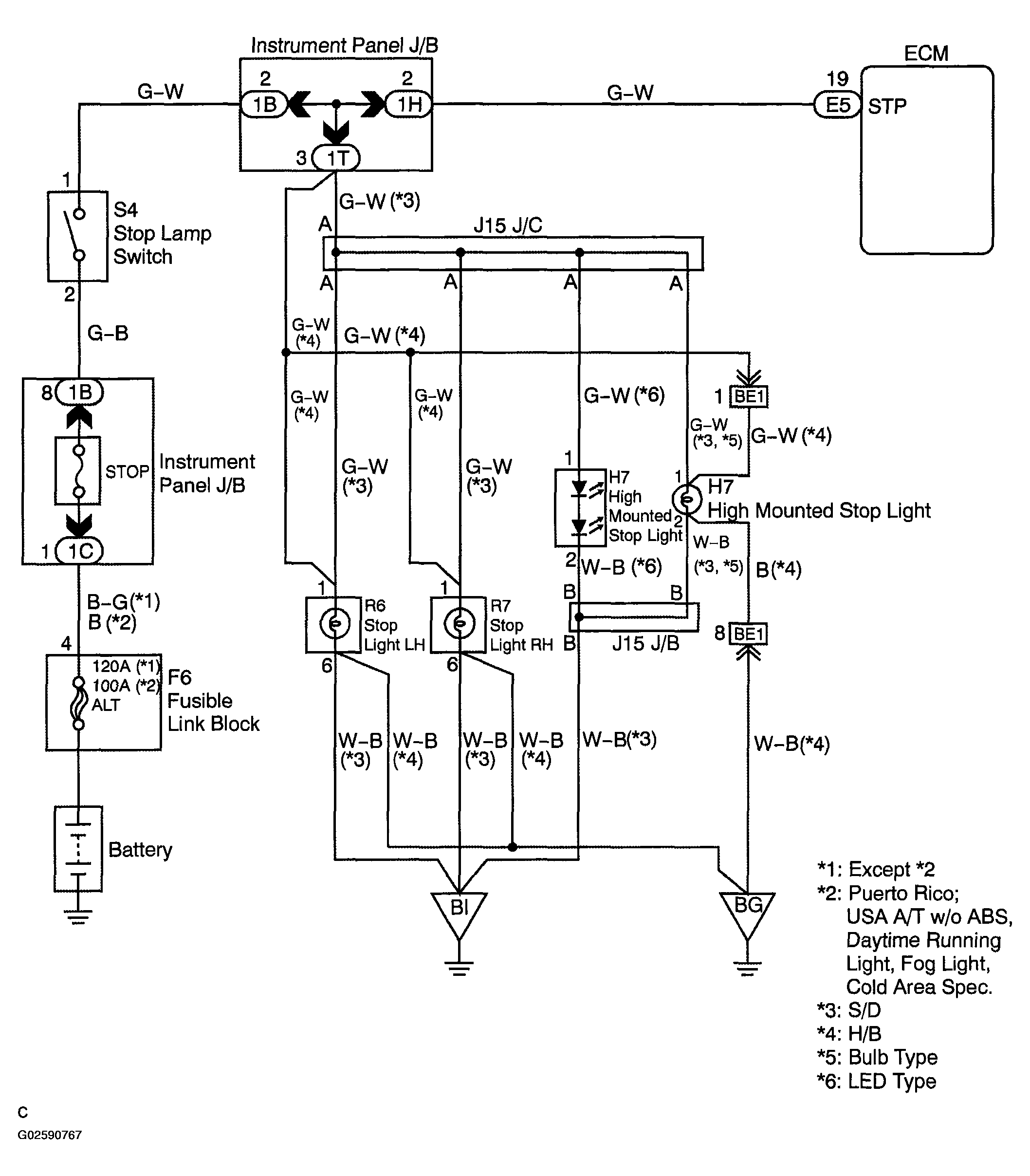

Fig 1: Stop Light Switch Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

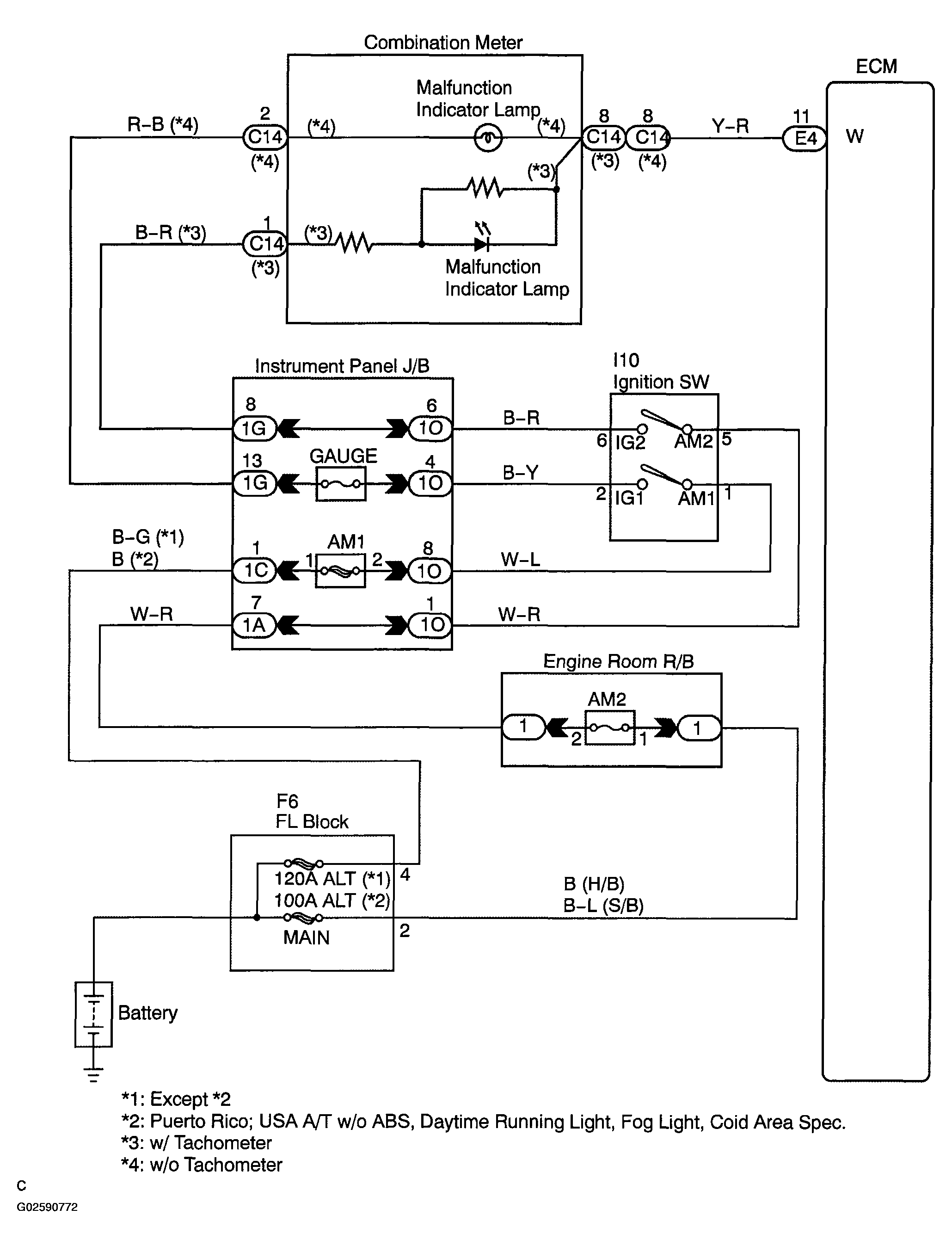

Fig 1: Malfunction Indicator Lamp Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
