SST (Special Service Tools)

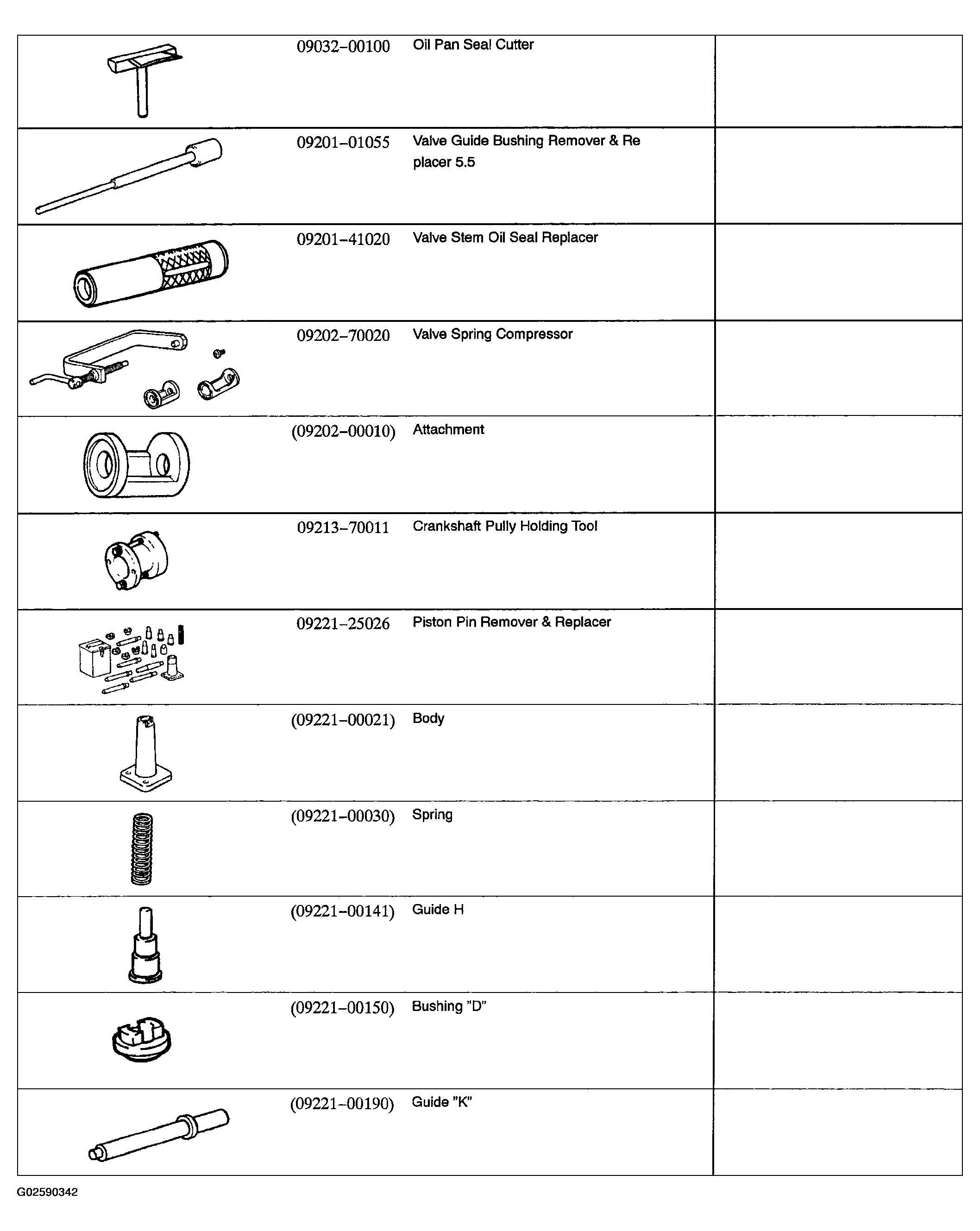

Fig 1: Identifying Engine Mechanical Special Tool (1 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

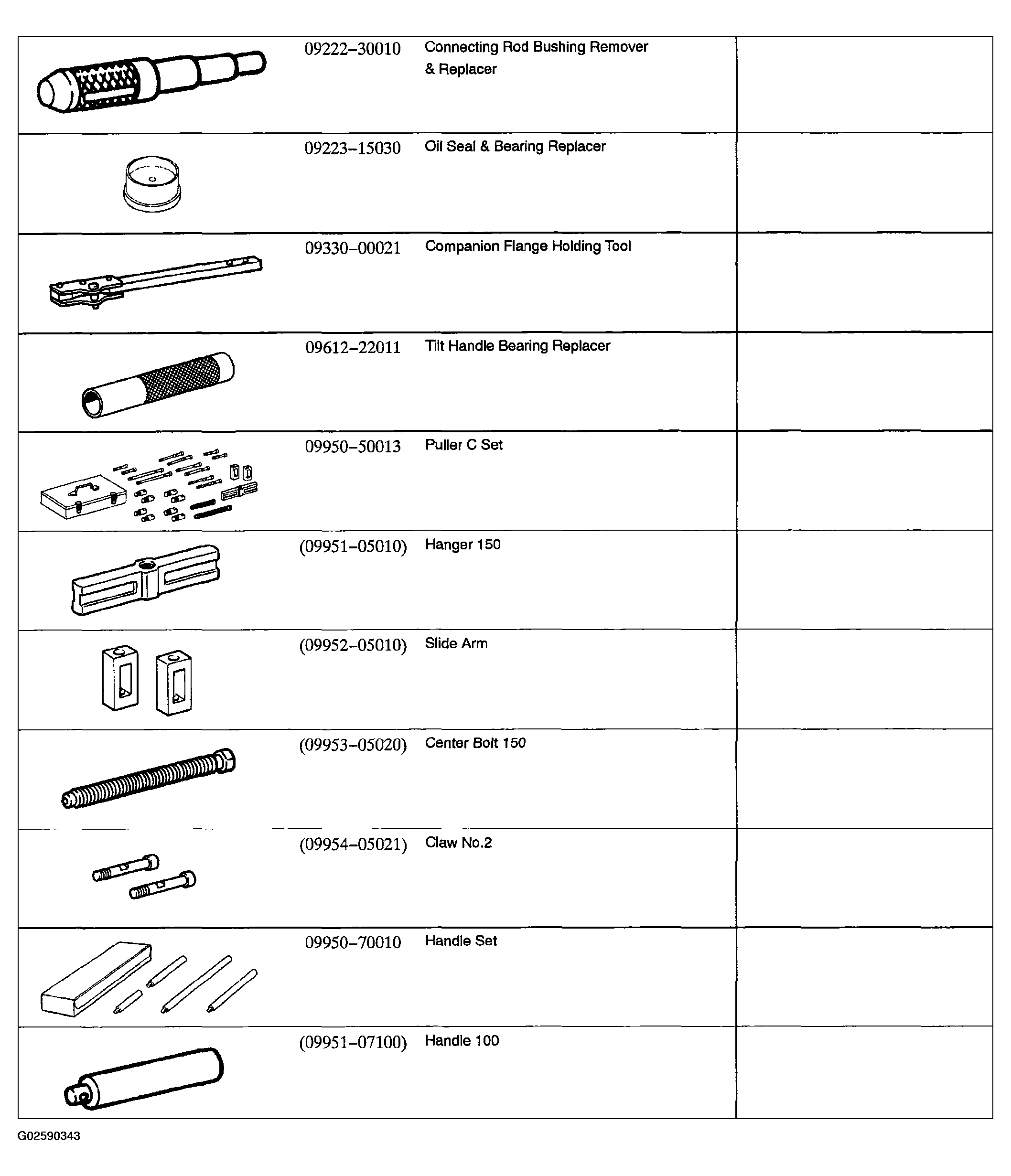

Fig 2: Identifying Engine Mechanical Special Tool (2 of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
