SST (Special Service Tools)

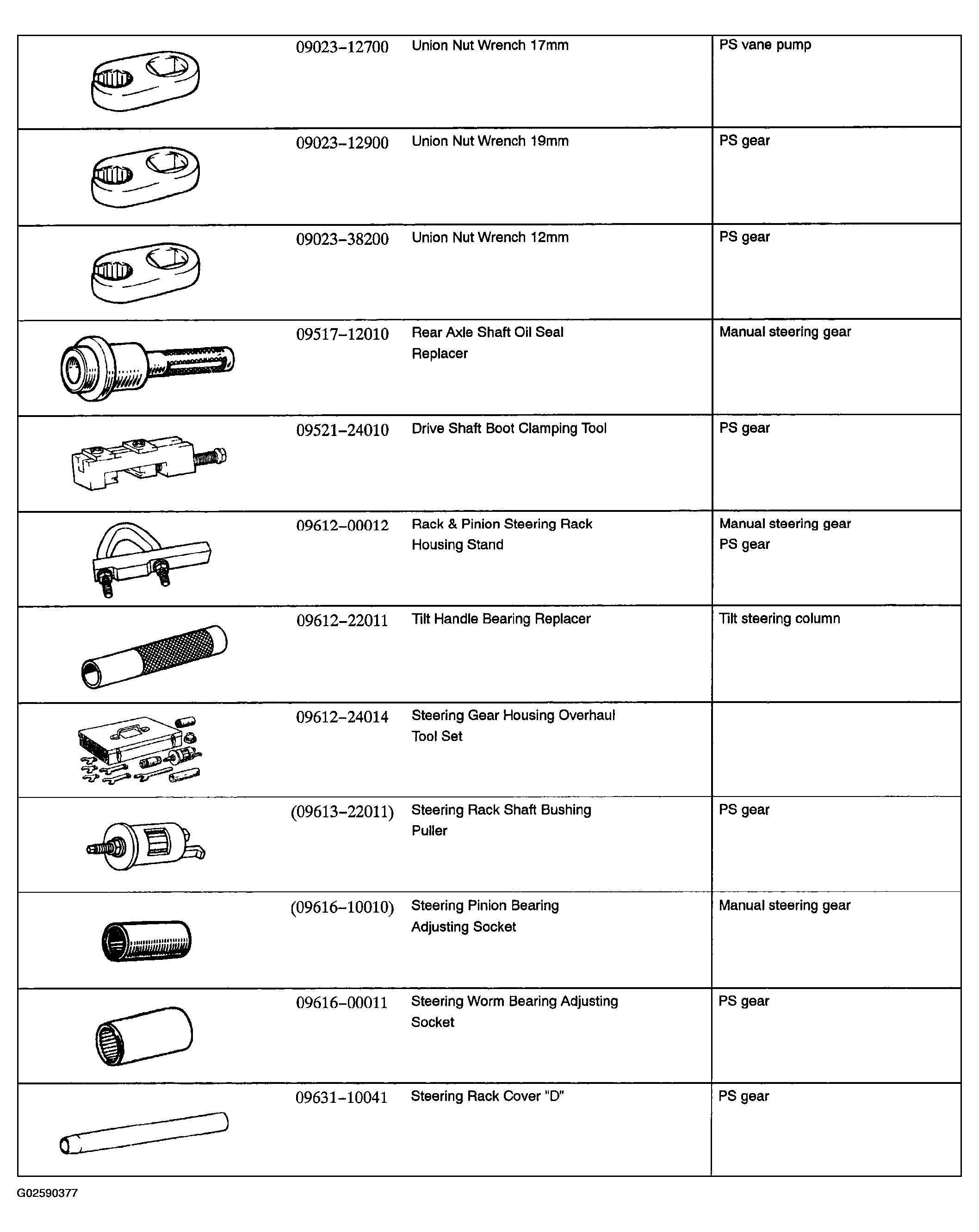

Fig 1: Identifying Steering Special Service Tools (1 of 3)
G02590377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

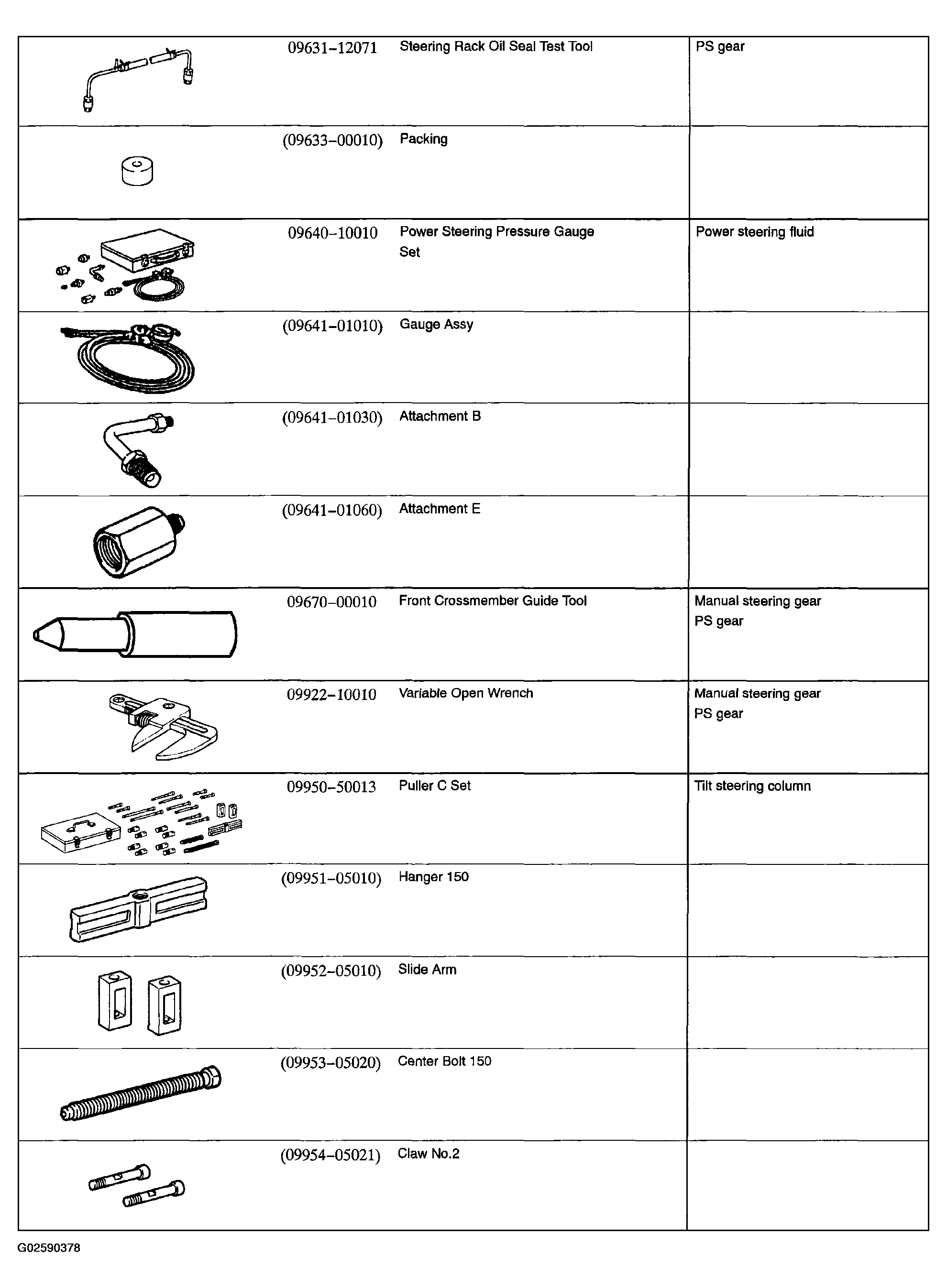

Fig 2: Identifying Steering Special Service Tools (2 of 3)
G02590378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

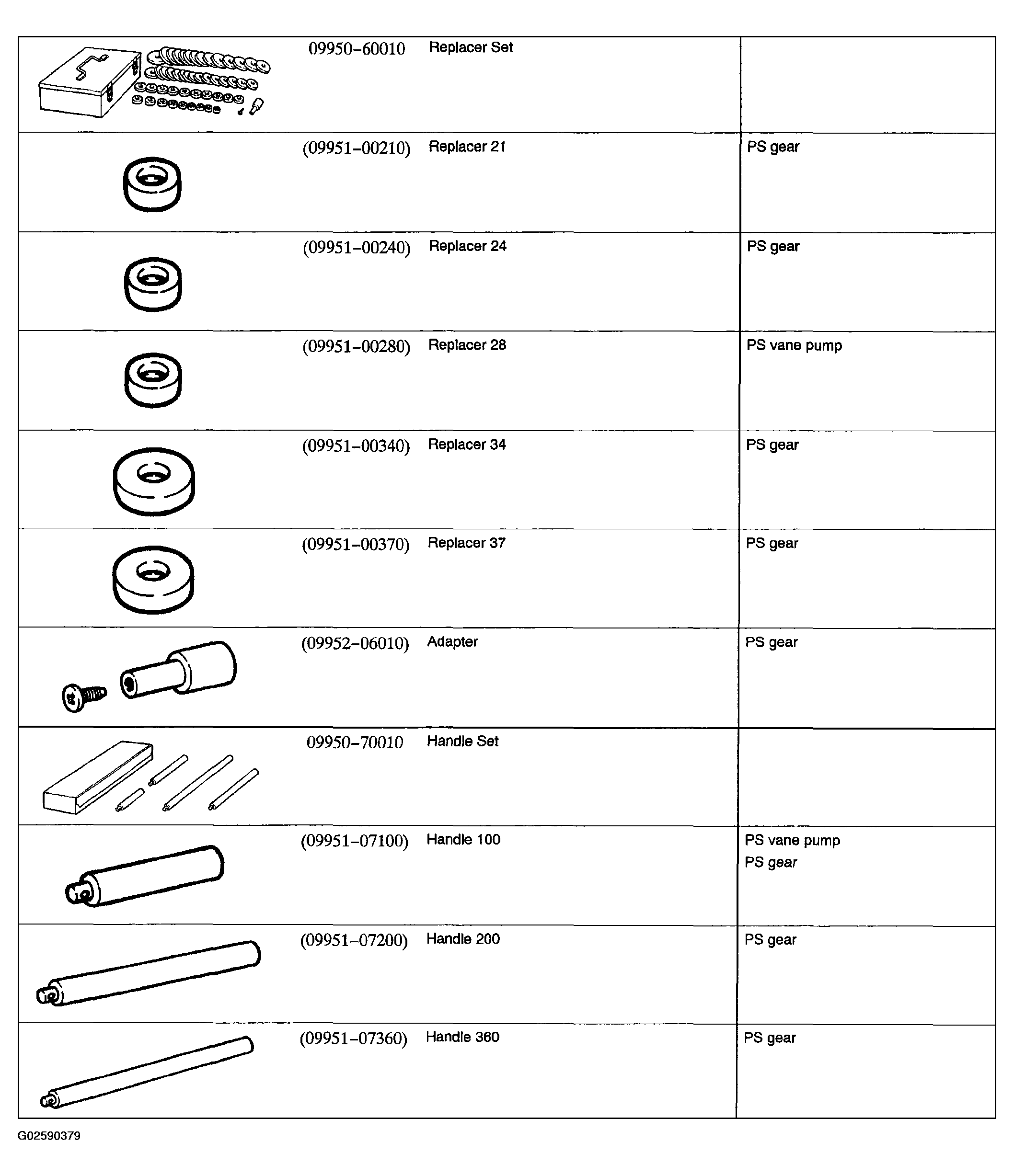

Fig 3: Identifying Steering Special Service Tools (3 of 3)
G02590379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
