Problem Symptoms Table

Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.

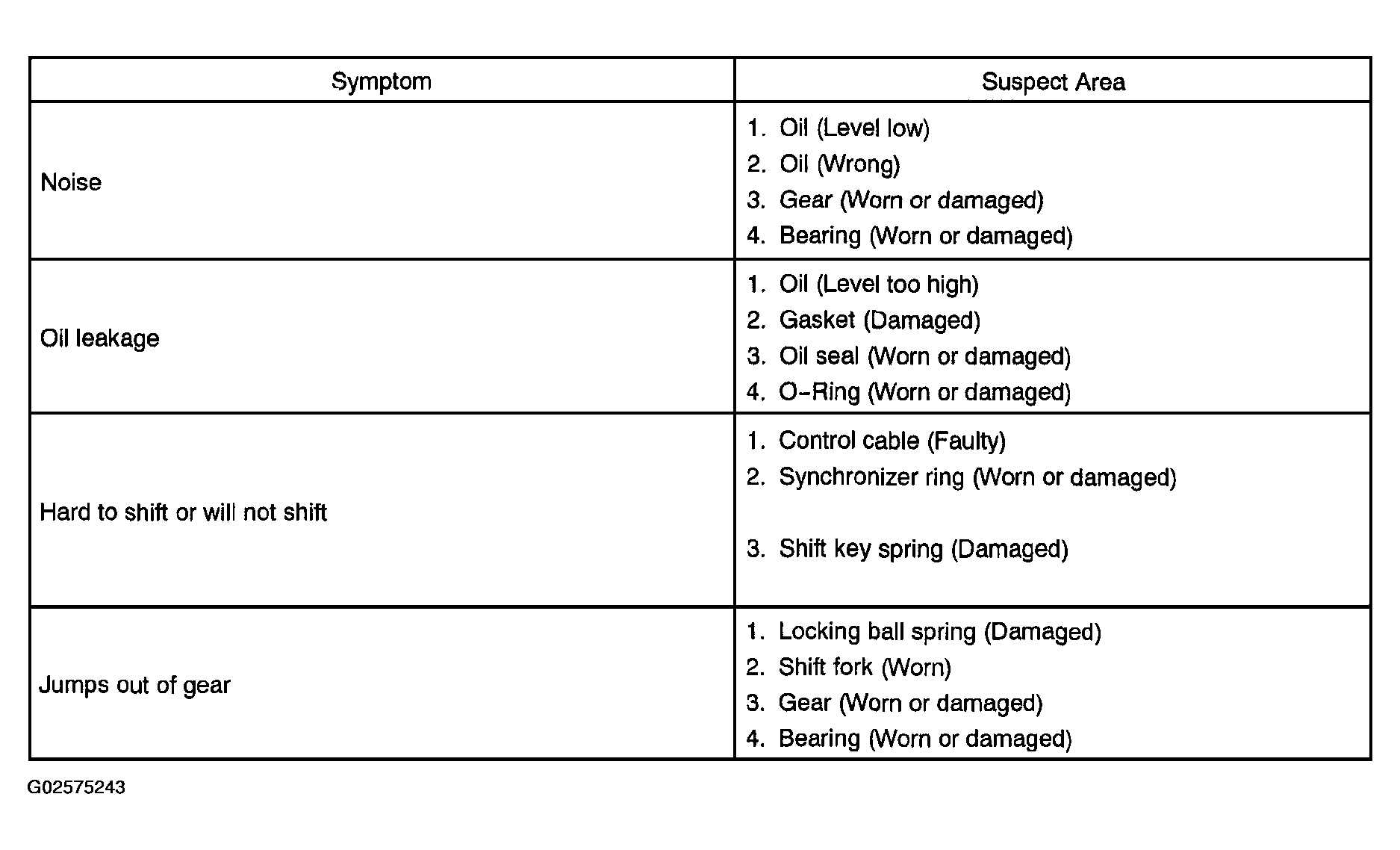

Fig 1: Troubleshooting Problem Symptom Table
G02575243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
