Multi-Display Controller Sub-ASSY: Replacement

HINT:

• See COMPONENTS
• Installation is in the reverse order of removal.

1. REMOVE REAR SEAT ASSY RH (SEE  OVERHAUL  )
2. REMOVE REAR SEAT ASSY LH (SEE  OVERHAUL  )
3. REMOVE REAR DOOR SCUFF PLATE RH (SEE  REPLACEMENT  )
4. REMOVE REAR DOOR SCUFF PLATE LH (SEE  REPLACEMENT  )
5. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (SEE  REPLACEMENT  )
6. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (SEE  REPLACEMENT  )
7. REMOVE TONNEAU COVER ASSY (SEE  REPLACEMENT  )
8. REMOVE DECK BOARD SUB-ASSY (SEE  REPLACEMENT  )
9. REMOVE DECK BOARD SUB-ASSY NO.2 (SEE  REPLACEMENT  )
10. REMOVE DECK BOARD SUB-ASSY NO.3 (SEE  REPLACEMENT  )
11. REMOVE DECK SIDE TRIM BOX RH (SEE  REPLACEMENT  )
12. REMOVE DECK SIDE TRIM BOX LH (SEE  REPLACEMENT  )
13. REMOVE REAR FLOOR FINISH PLATE (SEE  REPLACEMENT  )
14. REMOVE DECK TRIM SIDE PANEL ASSY RH (SEE  REPLACEMENT  )
15. REMOVE DECK TRIM SIDE PANEL ASSY LH (SEE  REPLACEMENT  )
16. REMOVE REAR SEAT SUB FLOOR PANEL ASSY (W/O RR NO.2 SEAT)
    1. Remove the 3 bolts, 3 nuts and rear seat sub floor panel.

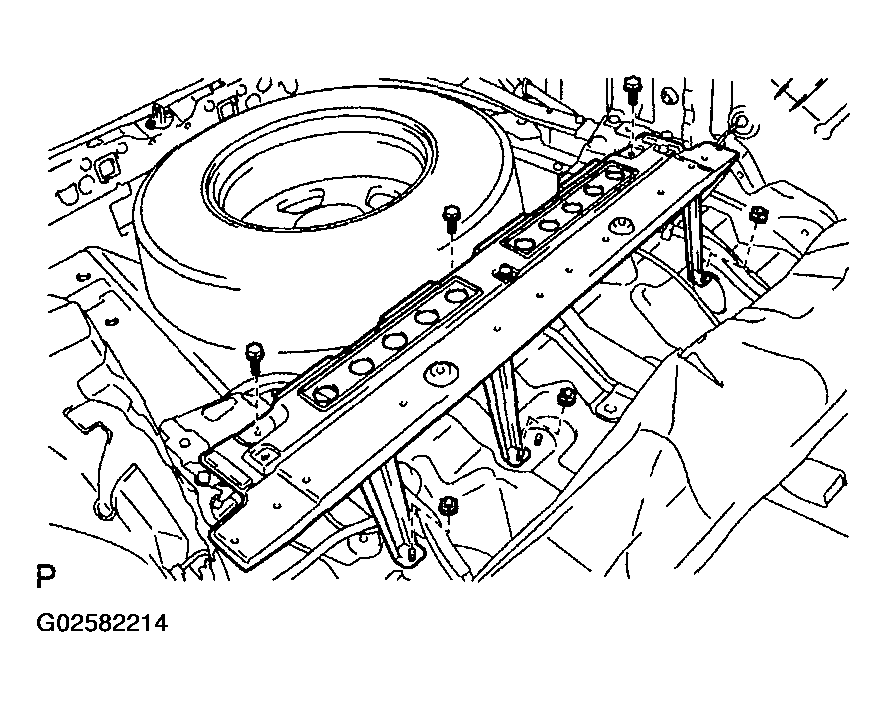

       Fig 1: Removing Rear Seat Sub Floor Panel Assy (W/O RR No.2 Seat)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. REMOVE MULTI-DISPLAY CONTROLLER W/BRACKET
    1. Disconnect the connectors.
    2. W/o RR No.2 Seat:

       Remove the 2 bolts and nut and the multi-display controller w/bracket.

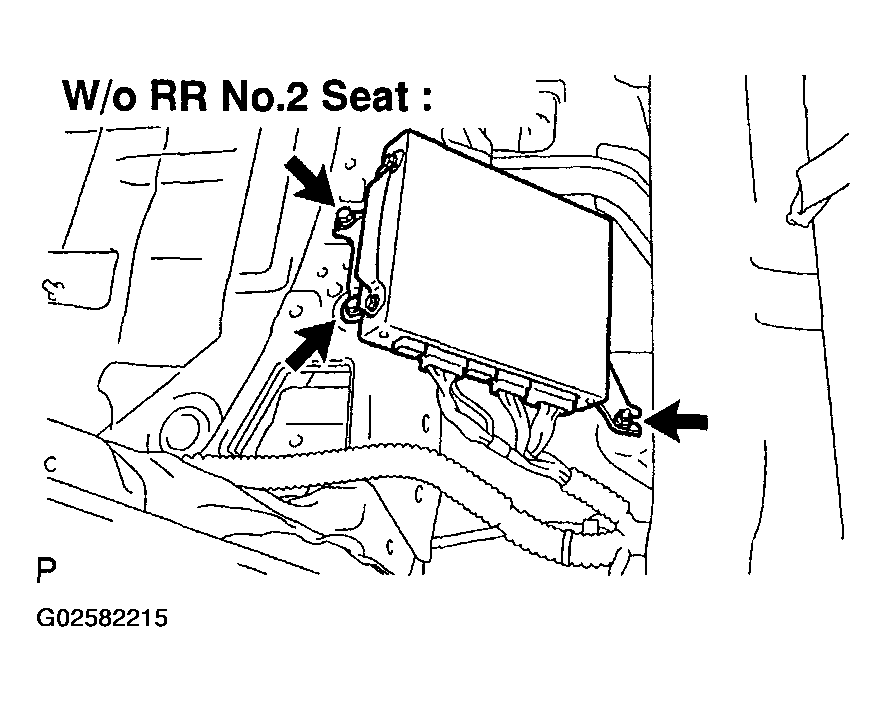

       Fig 2: Removing Multi-Display Controller w/Bracket (w/O RR No.2 Seat)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. W/ RR No.2 Seat:

       Remove the 2 nuts and bolt and the multi-display controller w/bracket.

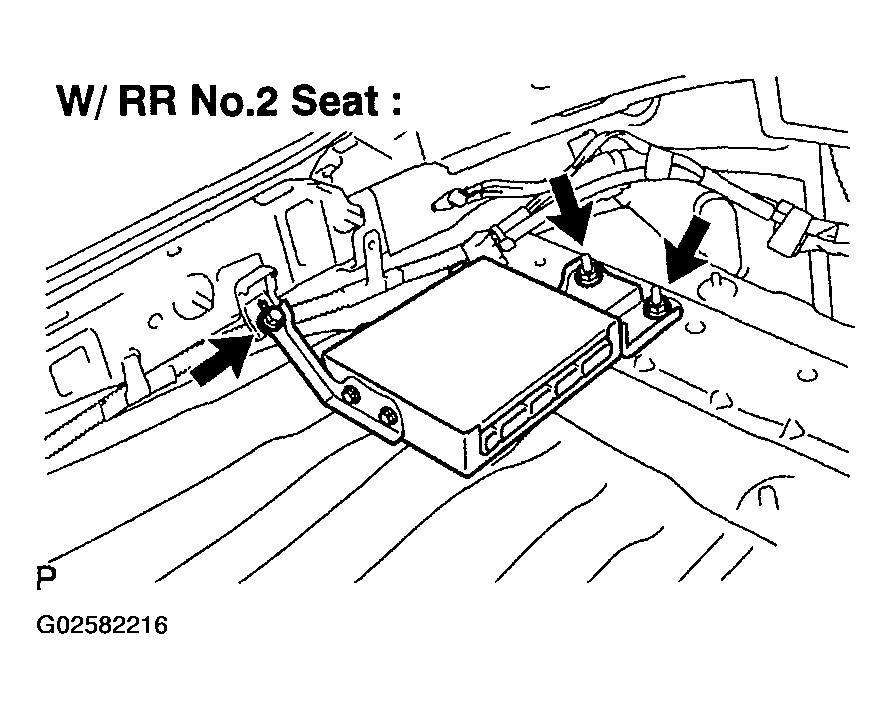

       Fig 3: Removing Multi-Display Controller w/Bracket (w/ RR No.2 Seat)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. REMOVE MULTI-DISPLAY CONTROLLER BRACKET A
    1. Remove the 2 screws and the multi-display controller bracket A.
       Fig 4: Removing Multi-Display Controller Bracket A (W/RR No.2 Seat)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       Fig 5: Removing Multi-Display Controller Bracket A (W/O RR No.2 Seat)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. REMOVE MULTI-DISPLAY CONTROLLER BRACKET B
    1. Remove the 2 screws and the multi-display controller bracket B.
       Fig 6: Removing Multi-Display Controller Bracket B (W/ RR No.2 Seat)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
       Fig 7: Removing Multi-Display Controller Bracket B (W/O RR No.2 Seat)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. REMOVE MULTI-DISPLAY CONTROLLER SUB-ASSY
