Power Window Control System - Diagnostics
›
Driver Power Window Does Not Operate
›
Wiring Diagram
Driver Power Window Does Not Operate: Wiring Diagram

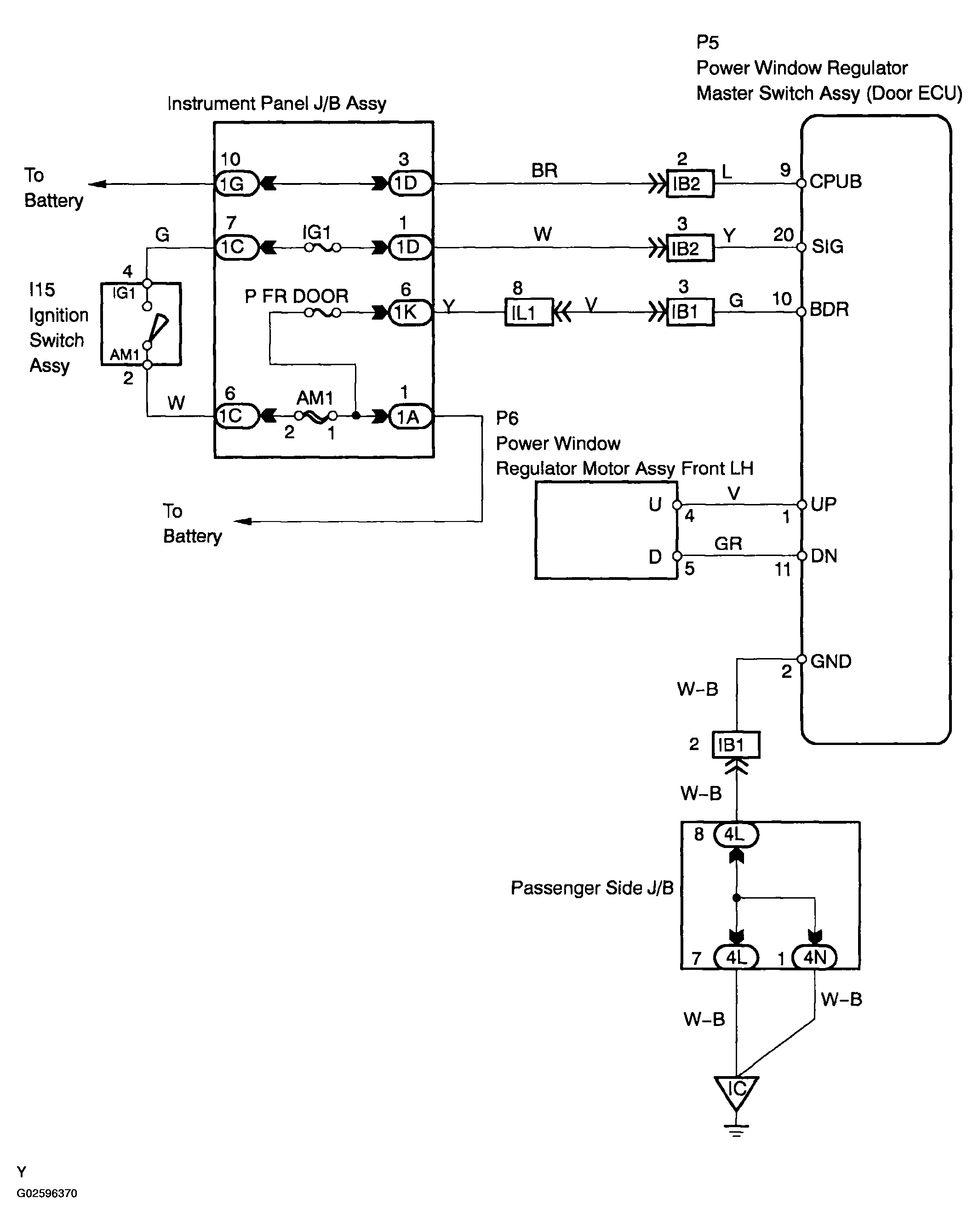

Fig 1: Wiring Diagram - Power Windows
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
