Accelerator Pedal Rod ASSY (2AZ-FE): Replacement

REMOVE ACCELERATOR PEDAL ROD ASSY
1. Disconnect the accelerator pedal position sensor connector.
2. Remove the 2 bolts and pedal rod.
INSTALL ACCELERATOR PEDAL ROD ASSY
1. Install the pedal rod with the 2 bolts.
  Torque: 4.9 N m (50 kgf cm, 43 in.lbf)
2. Connect the accelerator pedal position sensor connector.

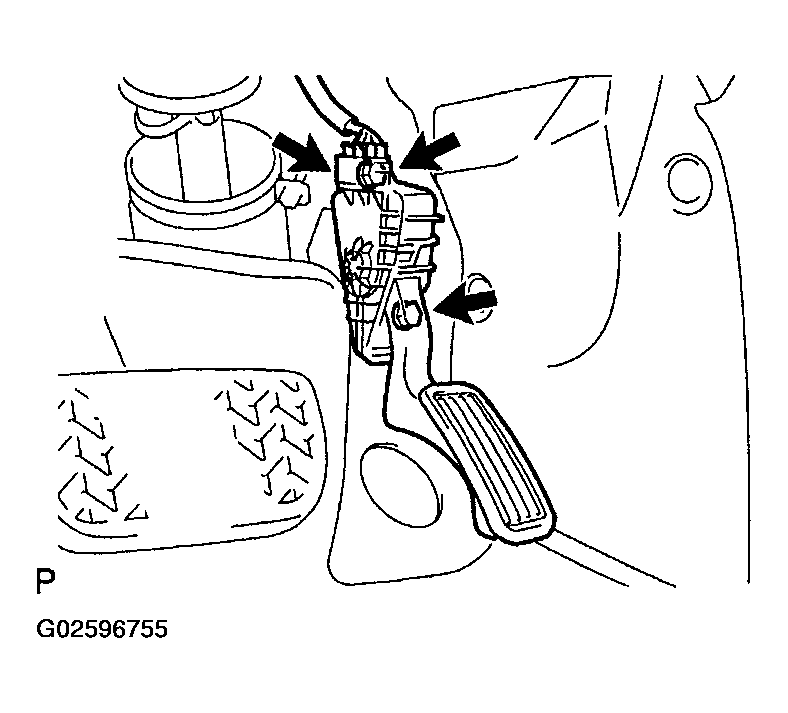

  Fig 1: Installing Accelerator Pedal Rod Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
