Throttle Body ASSY (2AZ-FE): Components

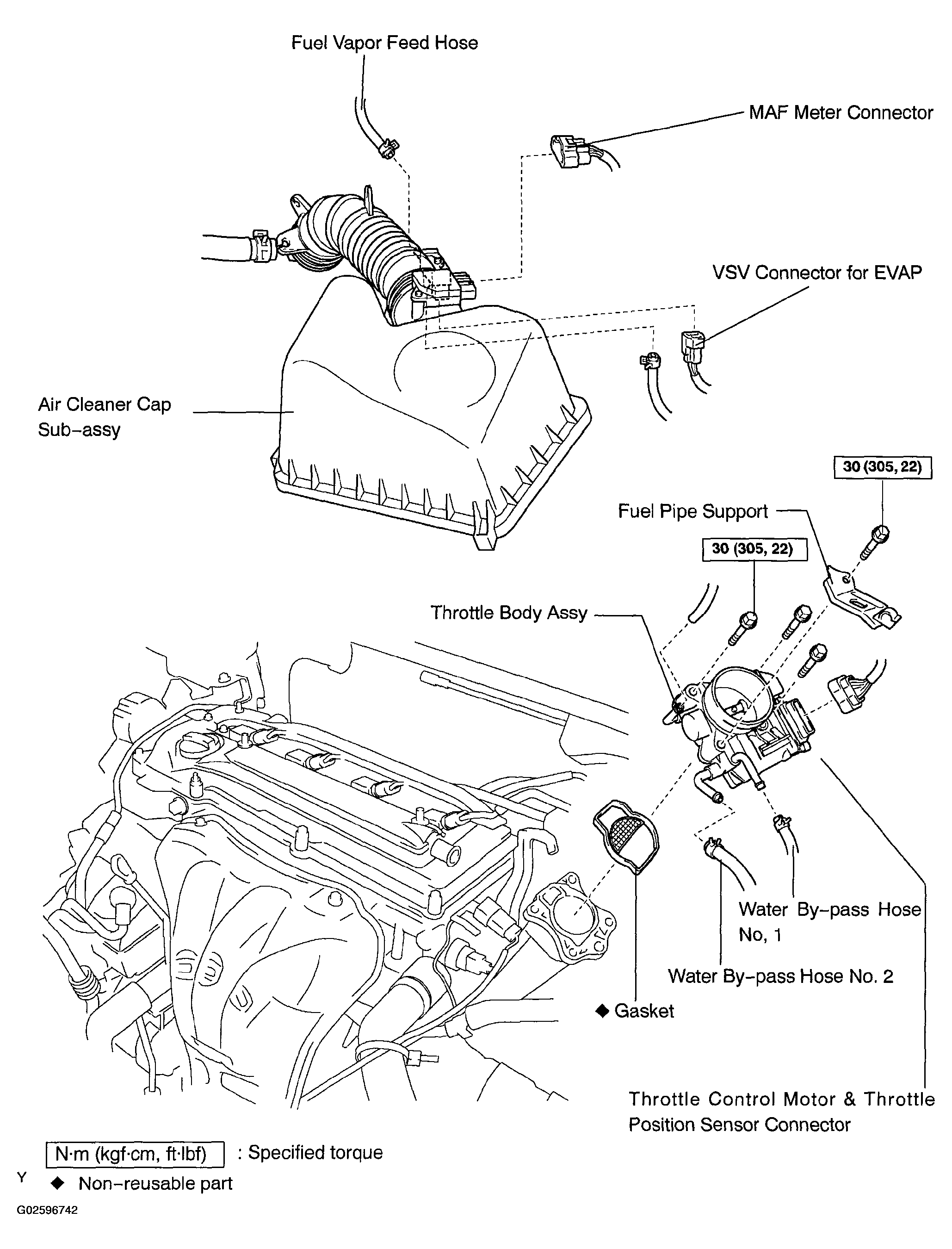

Fig 1: Throttle Body Assy (2AZ-FE) Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
