Engine Immobilizer System: Location

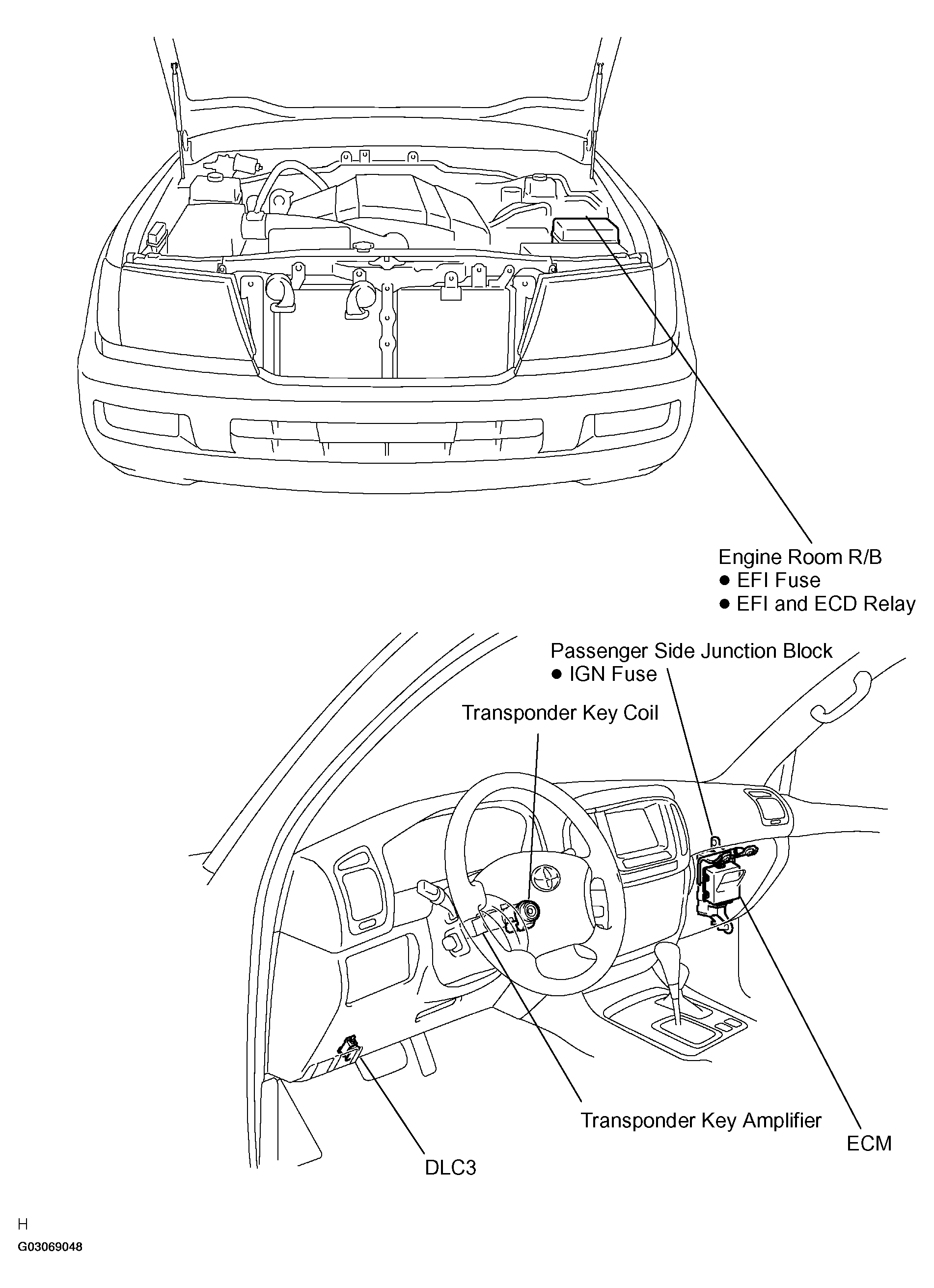

Fig 1: Identifying Components Location
G03069048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
