Upper Back Door: Components

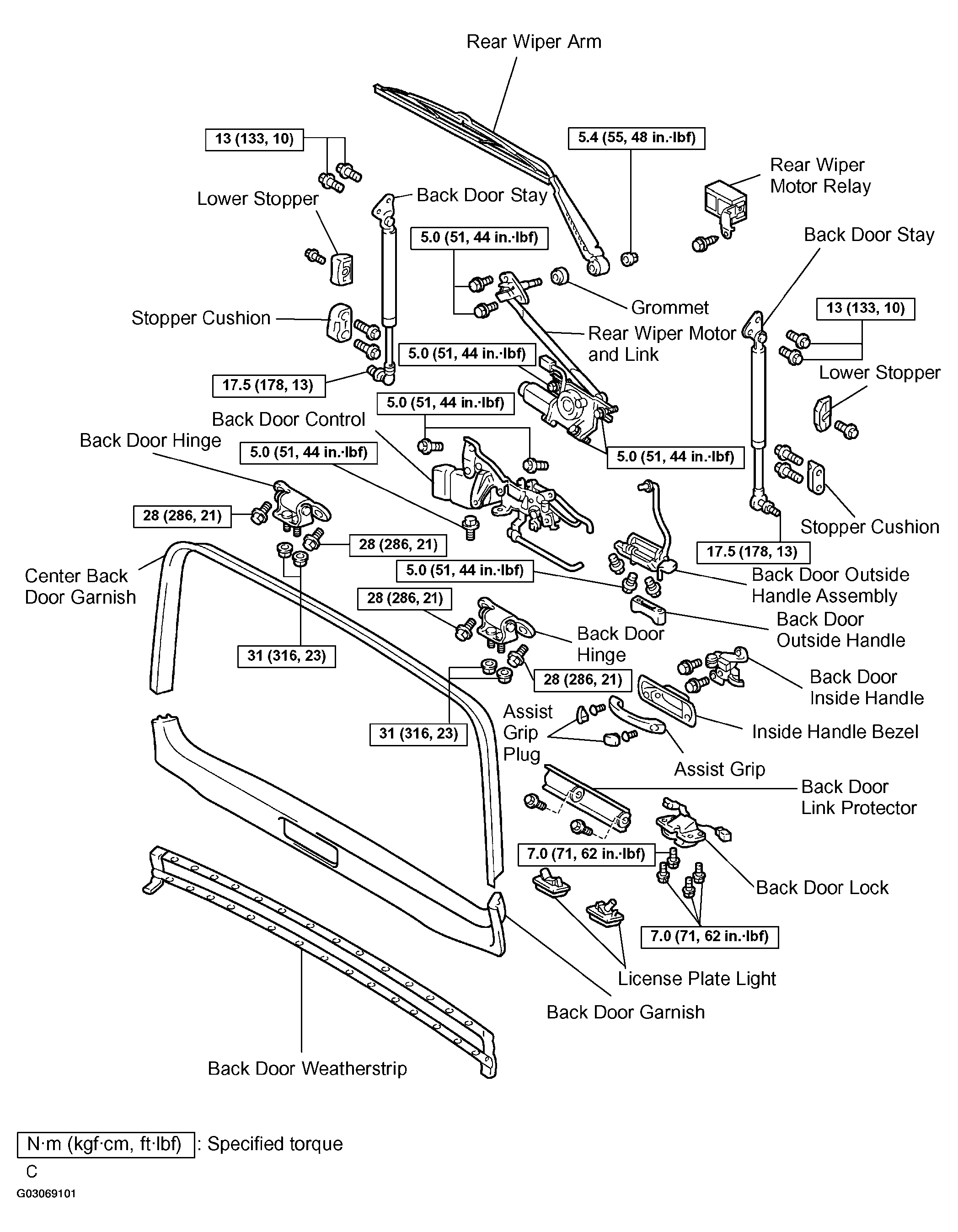

Fig 1: Identifying Upper Back Door Components
G03069101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
