Oil Cooler
›
Components
Oil Cooler: Components

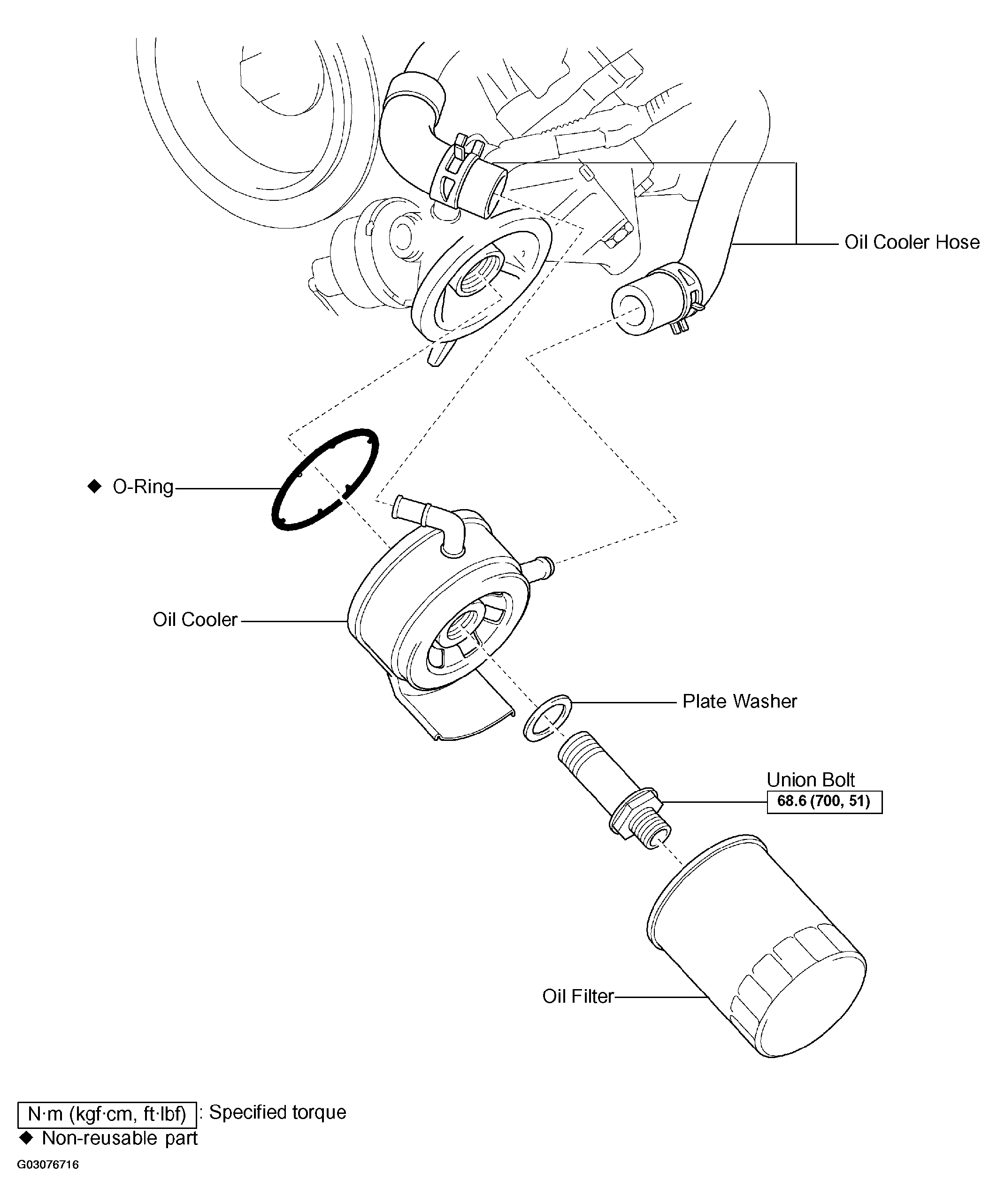

Fig 1: Oil Cooler Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
