Crankshaft Position Sensor: Components

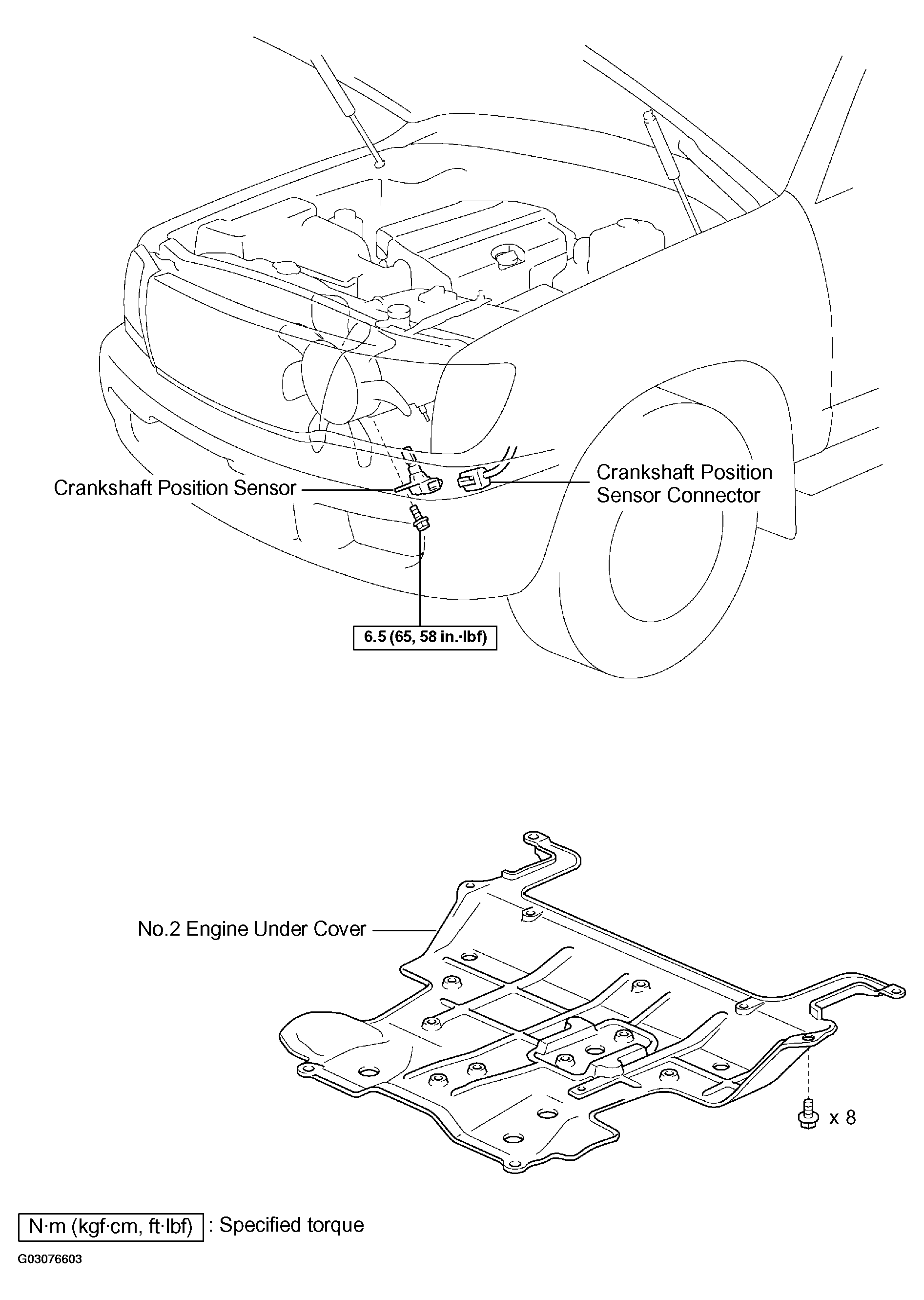

Fig 1: Locating Crankshaft Position Sensor & Torque Specification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
