Vehicle Lift And Support Locations

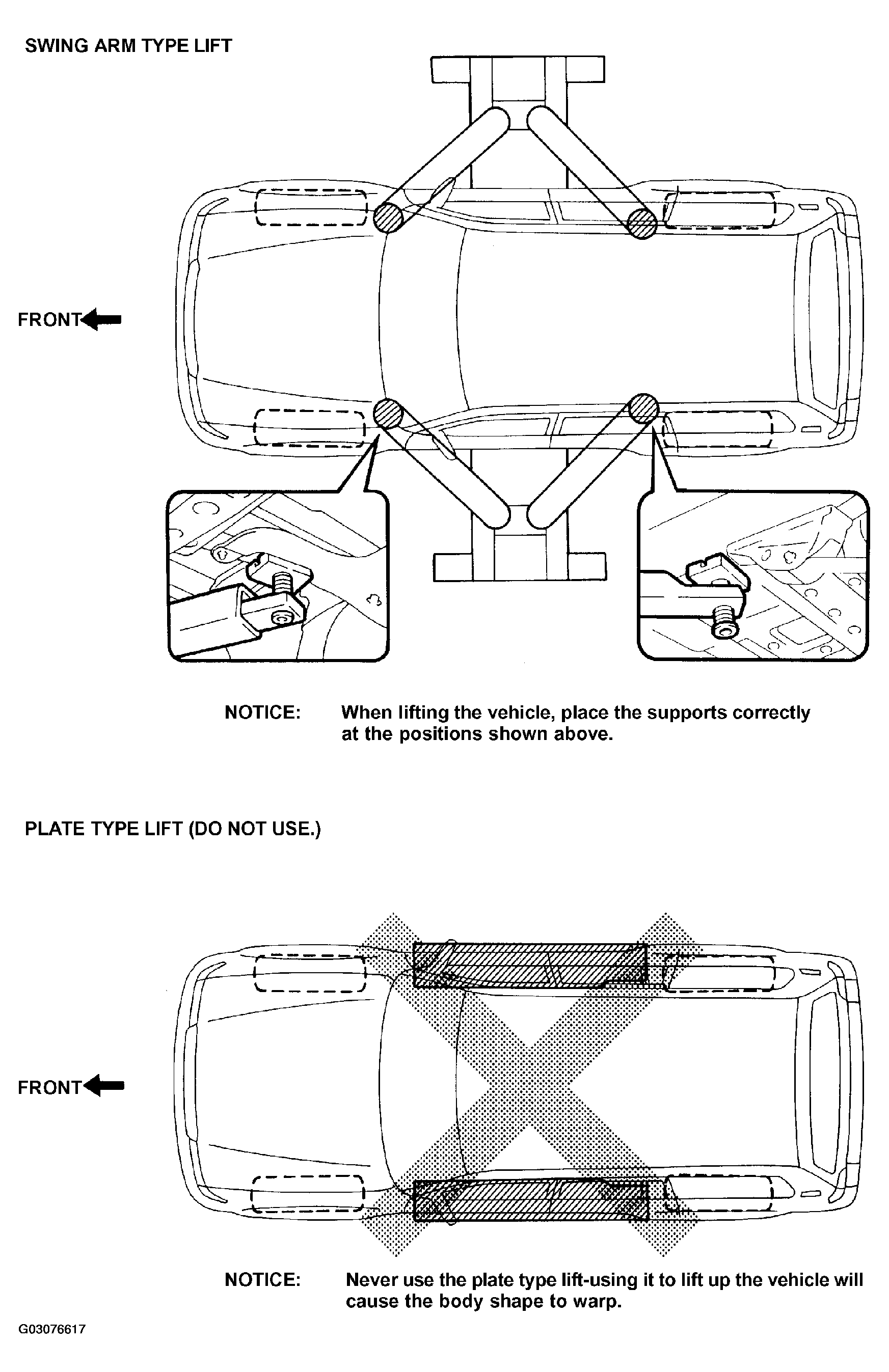

Fig 1: Identifying Vehicle Lift & Support Locations (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

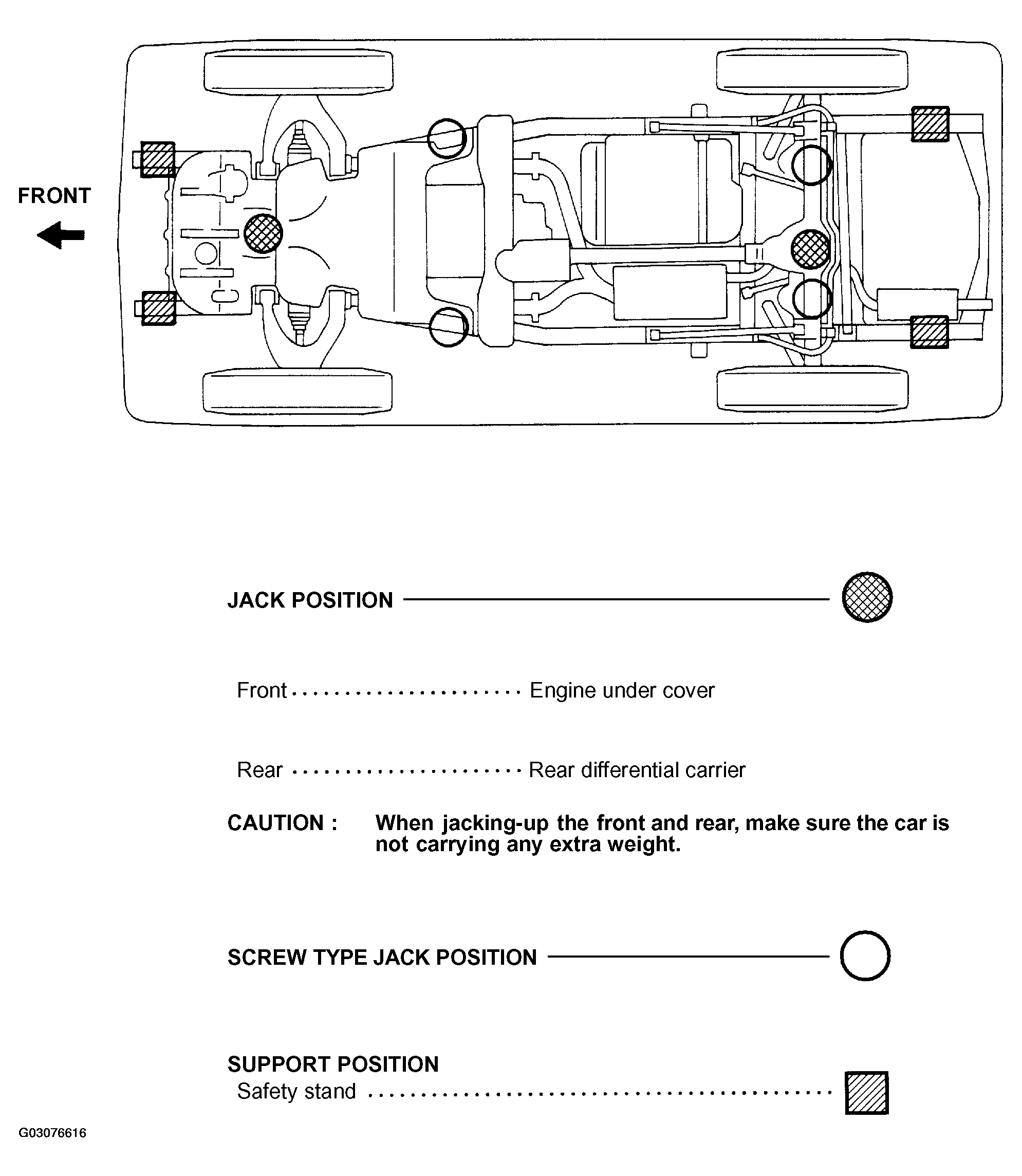

Fig 2: Identifying Vehicle Lift & Support Locations (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
