Power Tilt And Power Telescopic Steering Column: Components

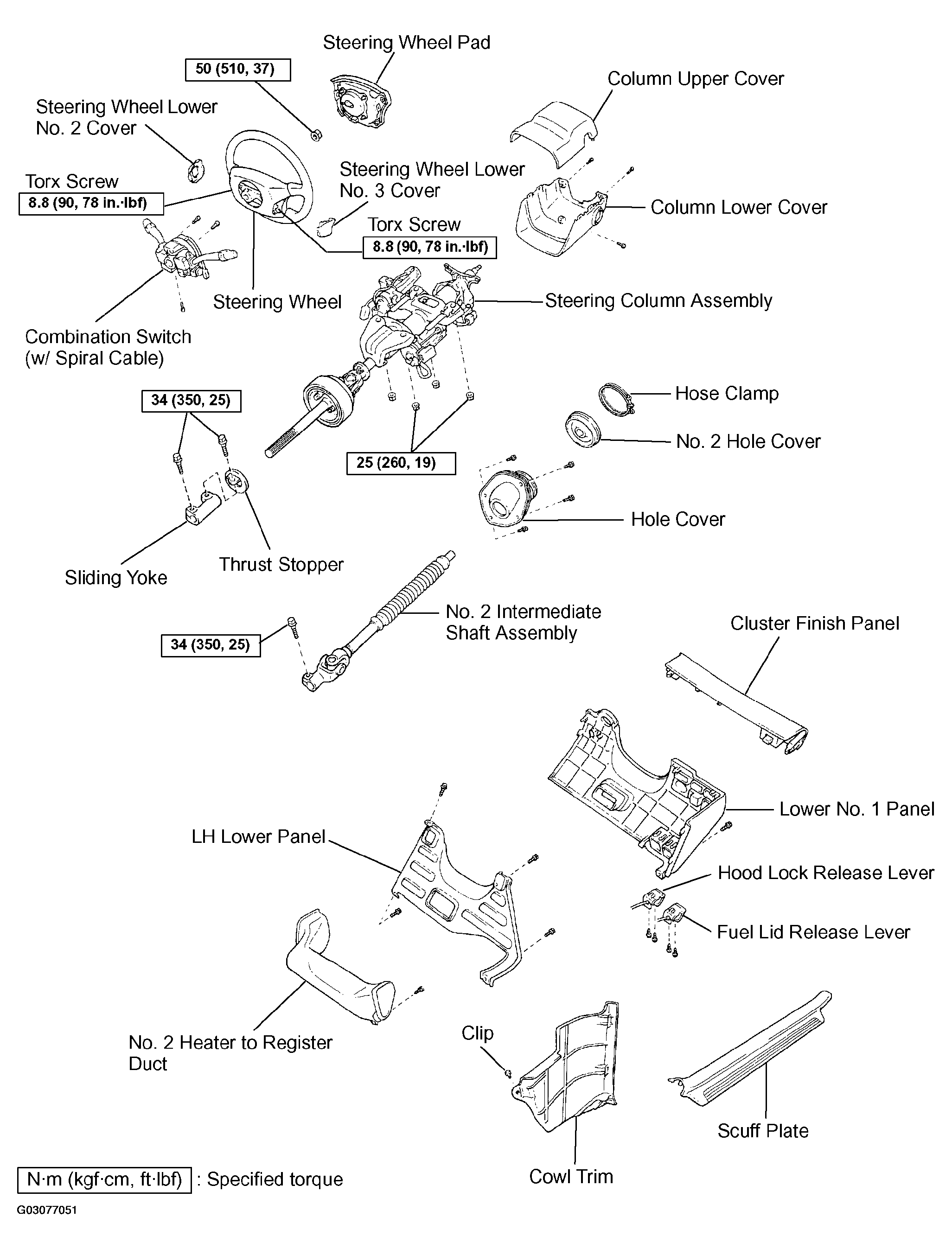

Fig 1: Exploded View Of Power Tilt & Power Telescopic Steering Column Components (1 Of 2)
G03077051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

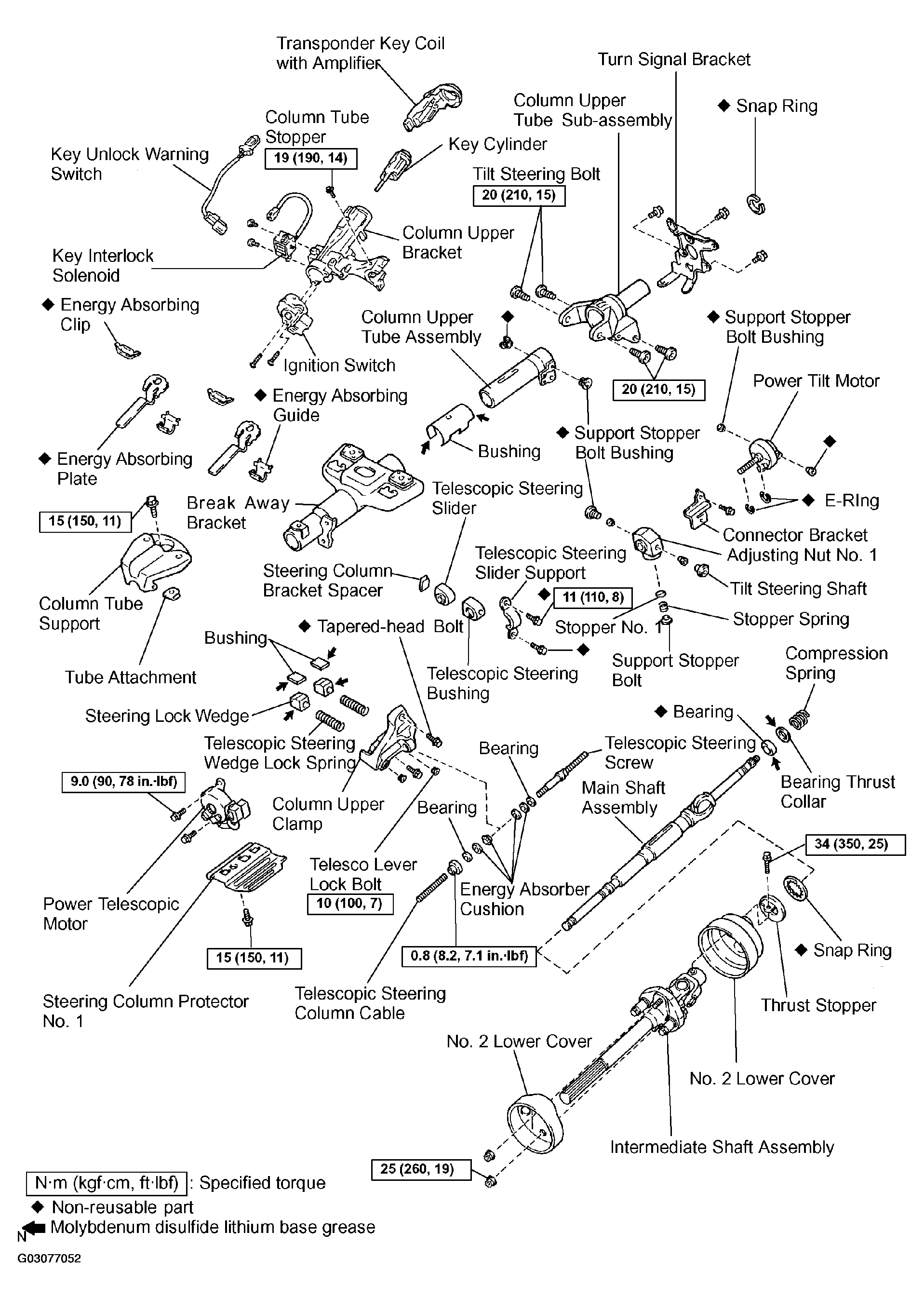

Fig 2: Exploded View Of Power Tilt & Power Telescopic Steering Column Components (2 Of 2)
G03077052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
