Front Stabilizer Bar: Components

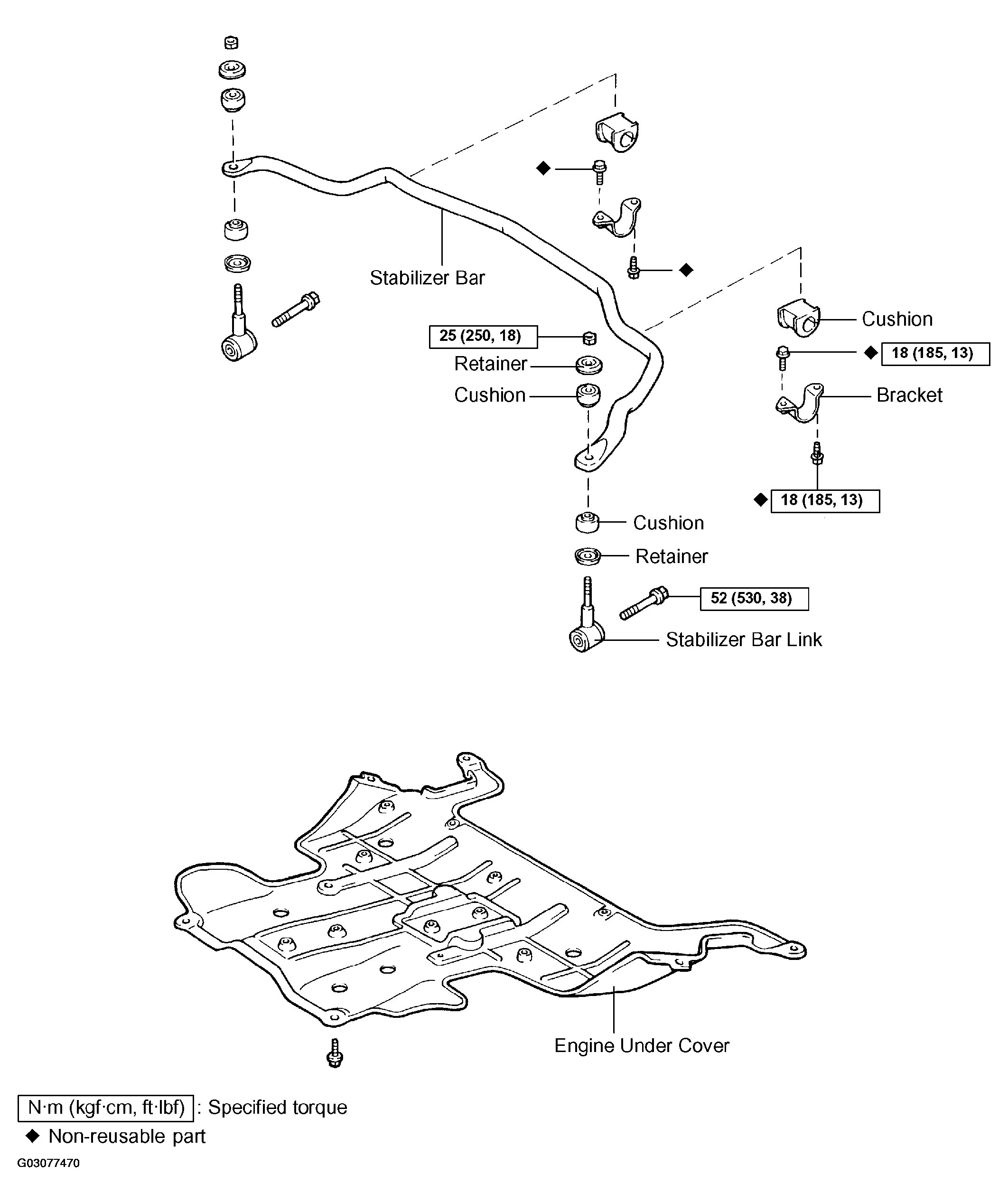

Fig 1: Front Stabilizer Bar Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
