Front Torsion Bar Spring: Components

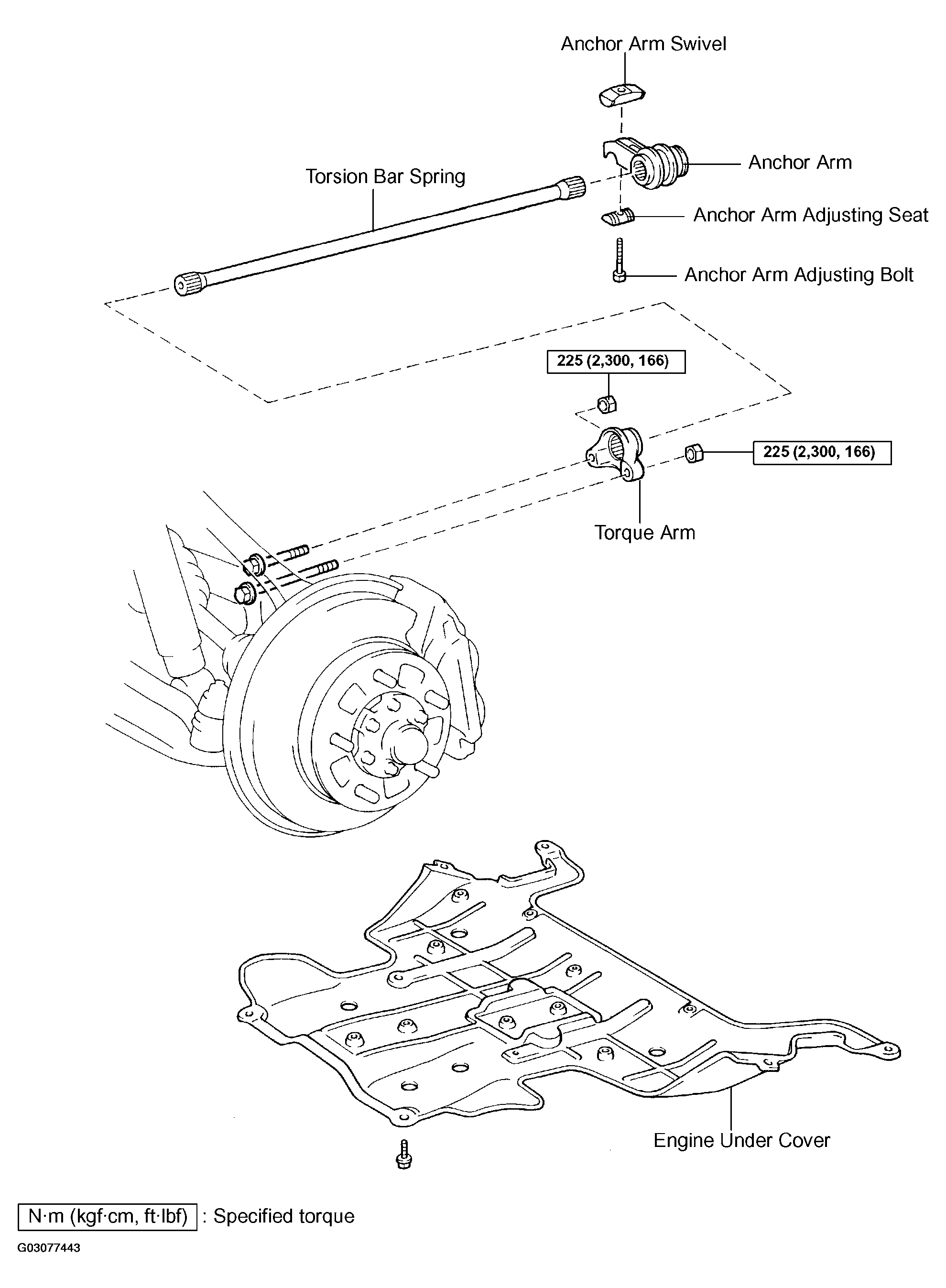

Fig 1: Front Torsion Bar Spring Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
