Rear Upper And Lower Control Arm: Components

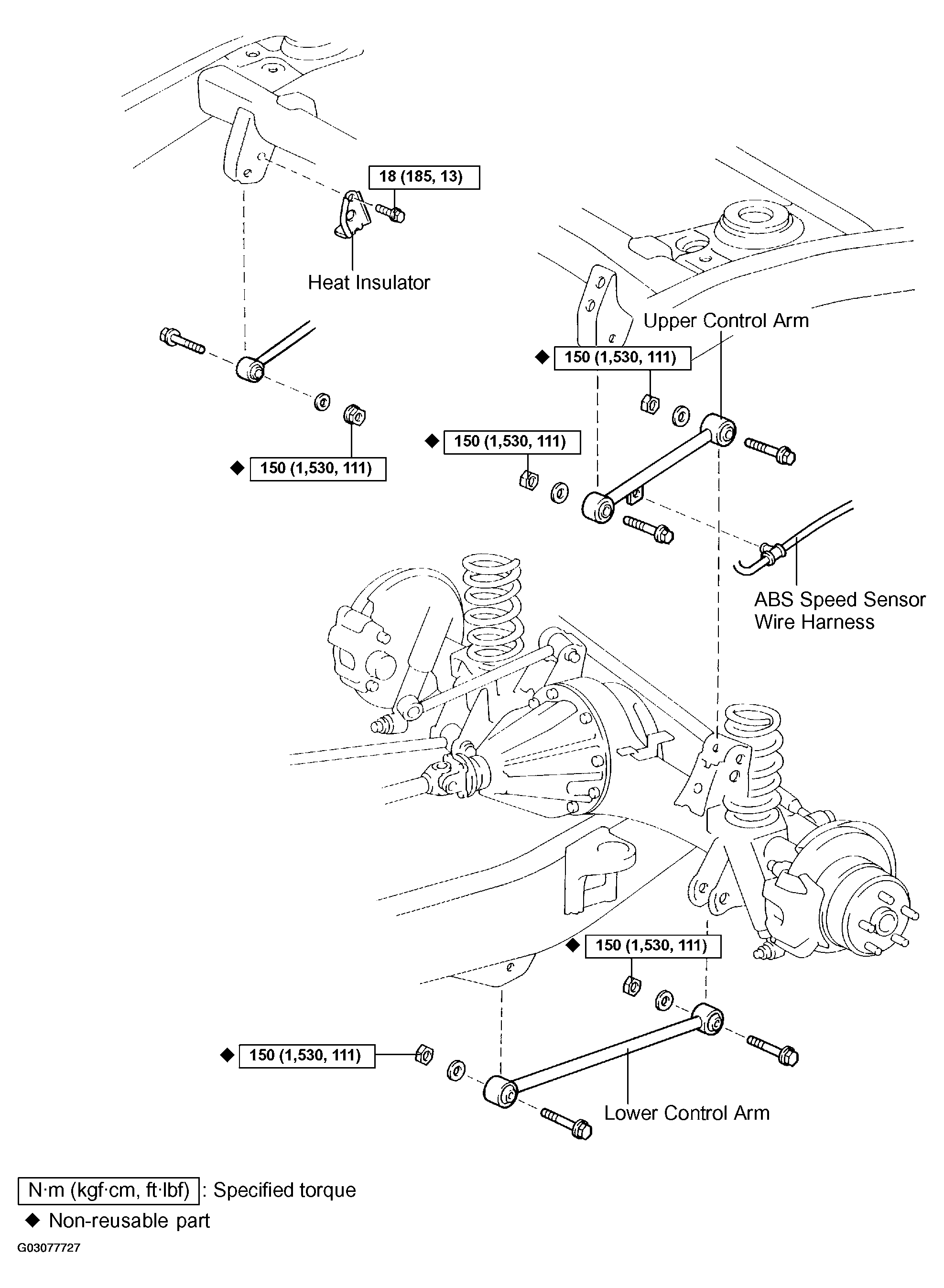

Fig 1: Removing Rear Upper & Lower Control Arm Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
