Steering Knuckle: Components

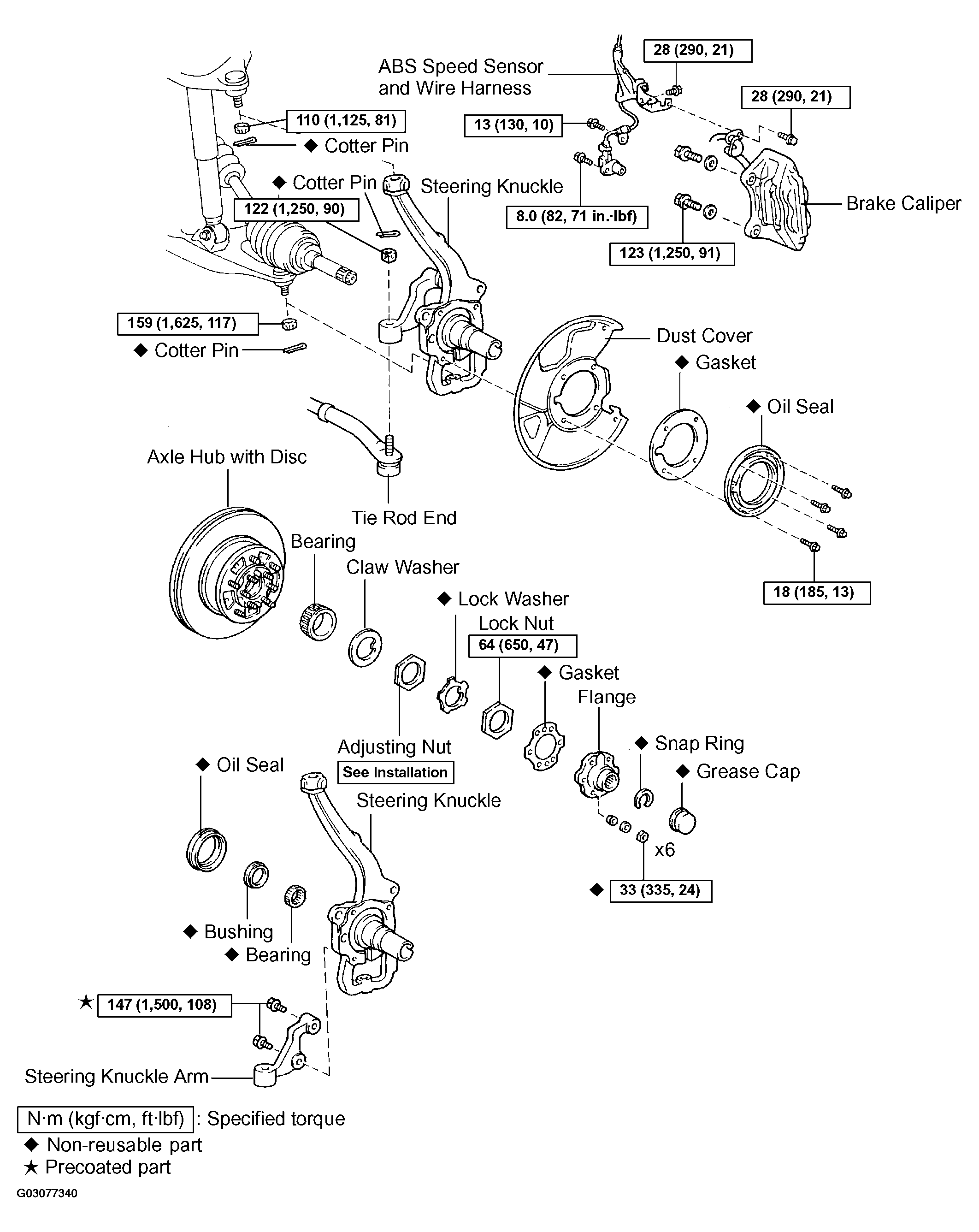

Fig 1: Exploded View Of Steering Knuckle Components

G03077340

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
