Engine - Diagnostics
›
MIL Circuit
›
Wiring Diagram
MIL Circuit: Wiring Diagram

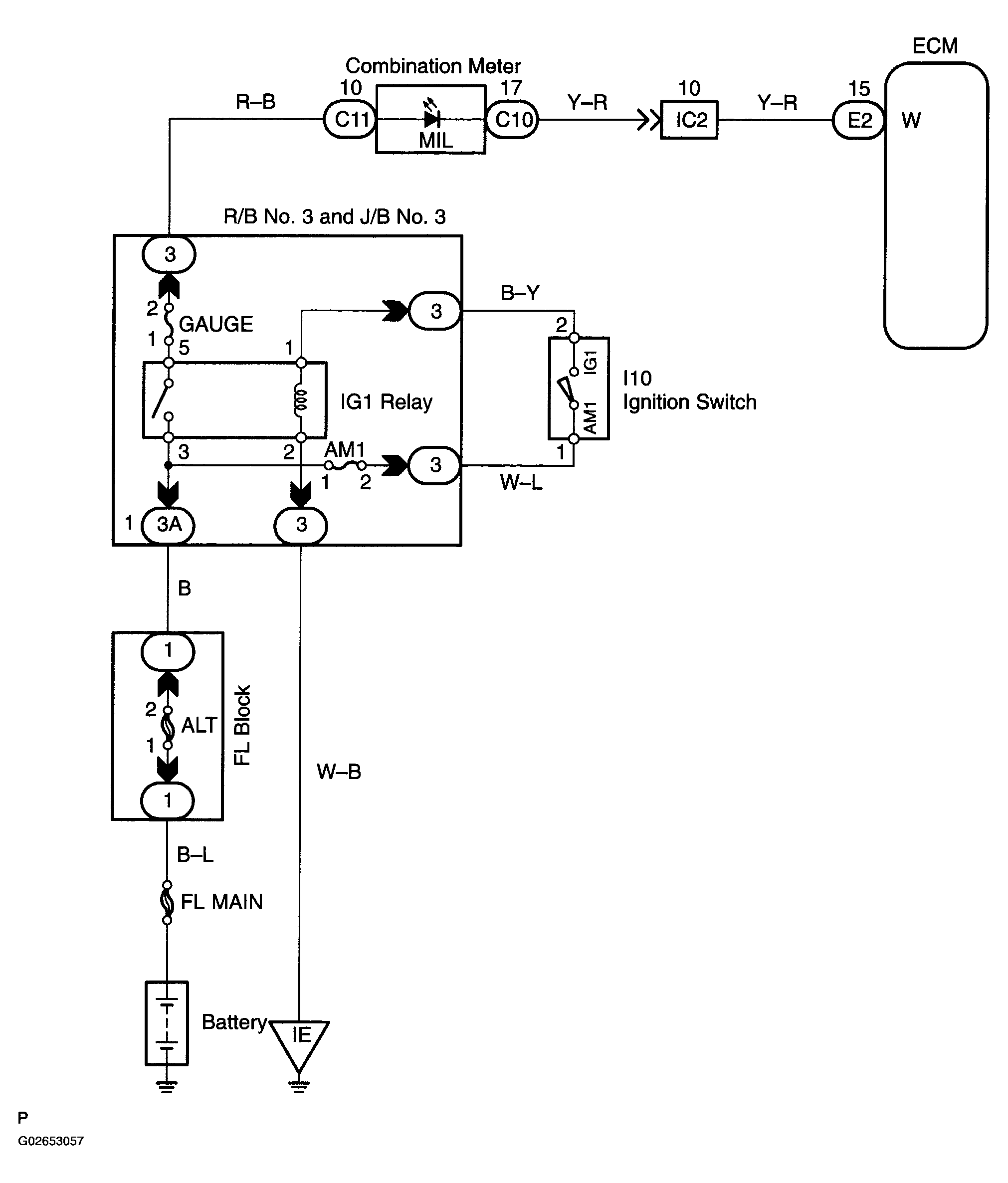

Fig 1: Wiring Diagram - MIL Circuit
