On-Vehicle Inspection

  1. Disconnect the OCV connector.
  2. Using an ohmmeter, measure the resistance between the terminals.

    Resistance: 6.9 - 7.9 Ω at 20°C (68°F)

    If the resistance is not as specified, replace the OCV.

  3. Reconnect the OCV connector.

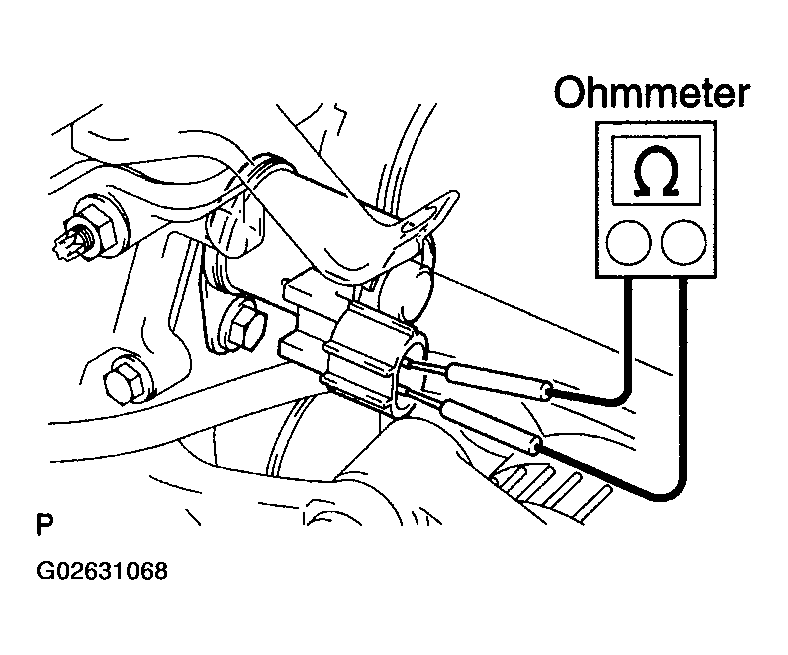

    Fig 1: Measuring Resistance Between Terminals Using An Ohmmeter
    G02631068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
