Charging System: Generator: Components

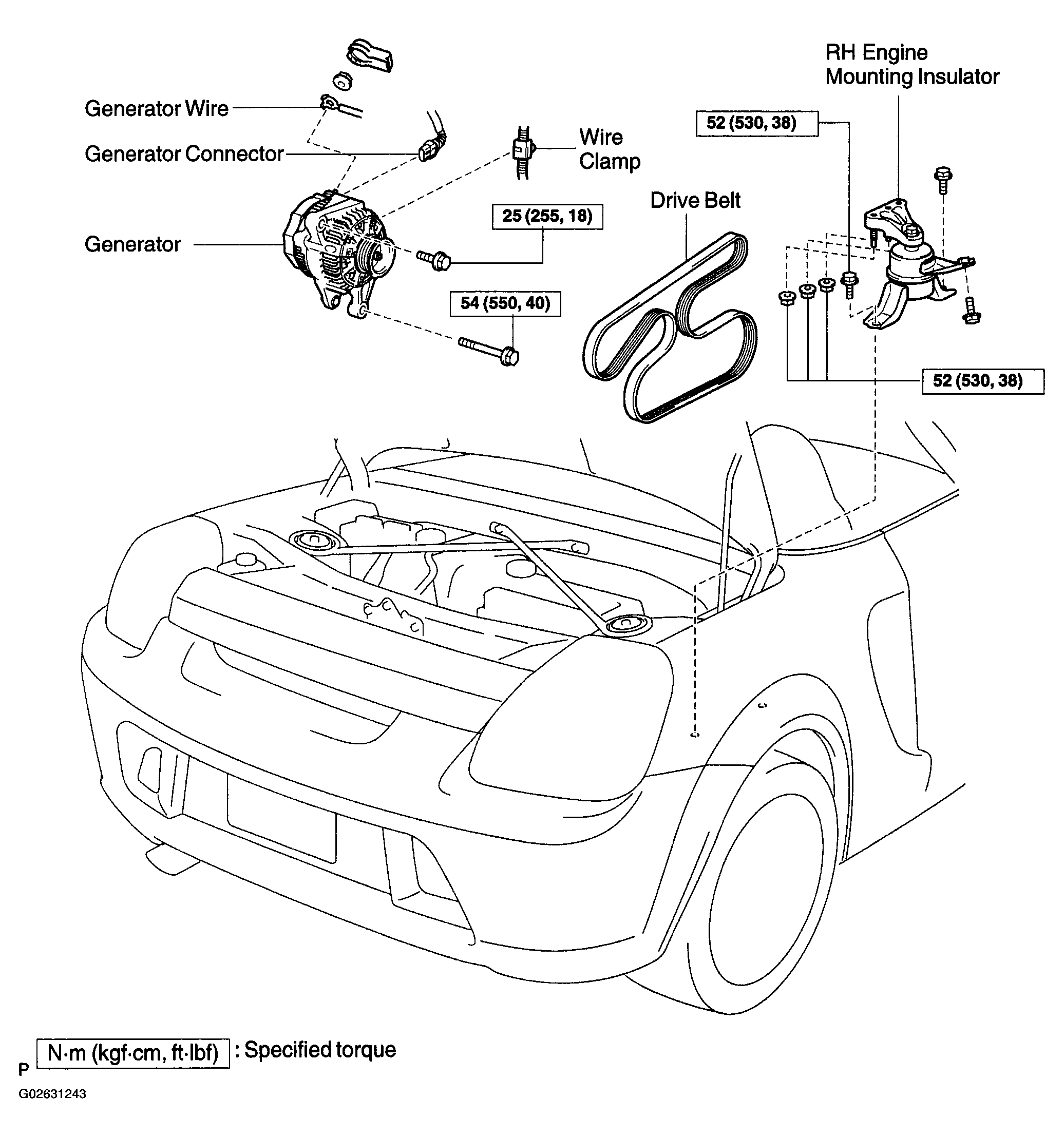

Fig 1: Identifying Generator Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

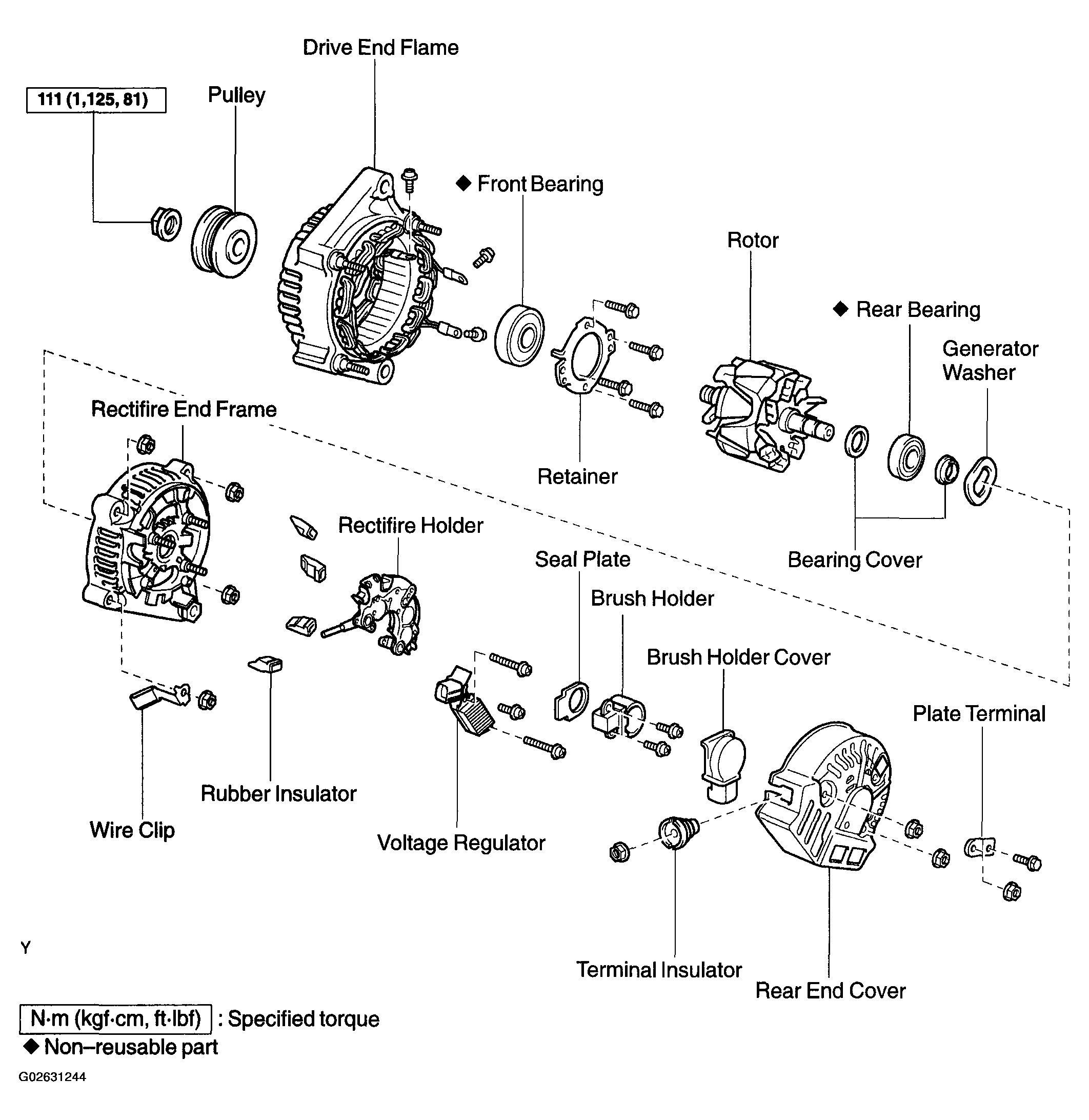

Fig 2: Exploded View Of Generator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
