DTC P0860: Gear Shift Module Communication Circuit*
›
Wiring Diagram
DTC P0860: Gear Shift Module Communication Circuit*: Wiring Diagram

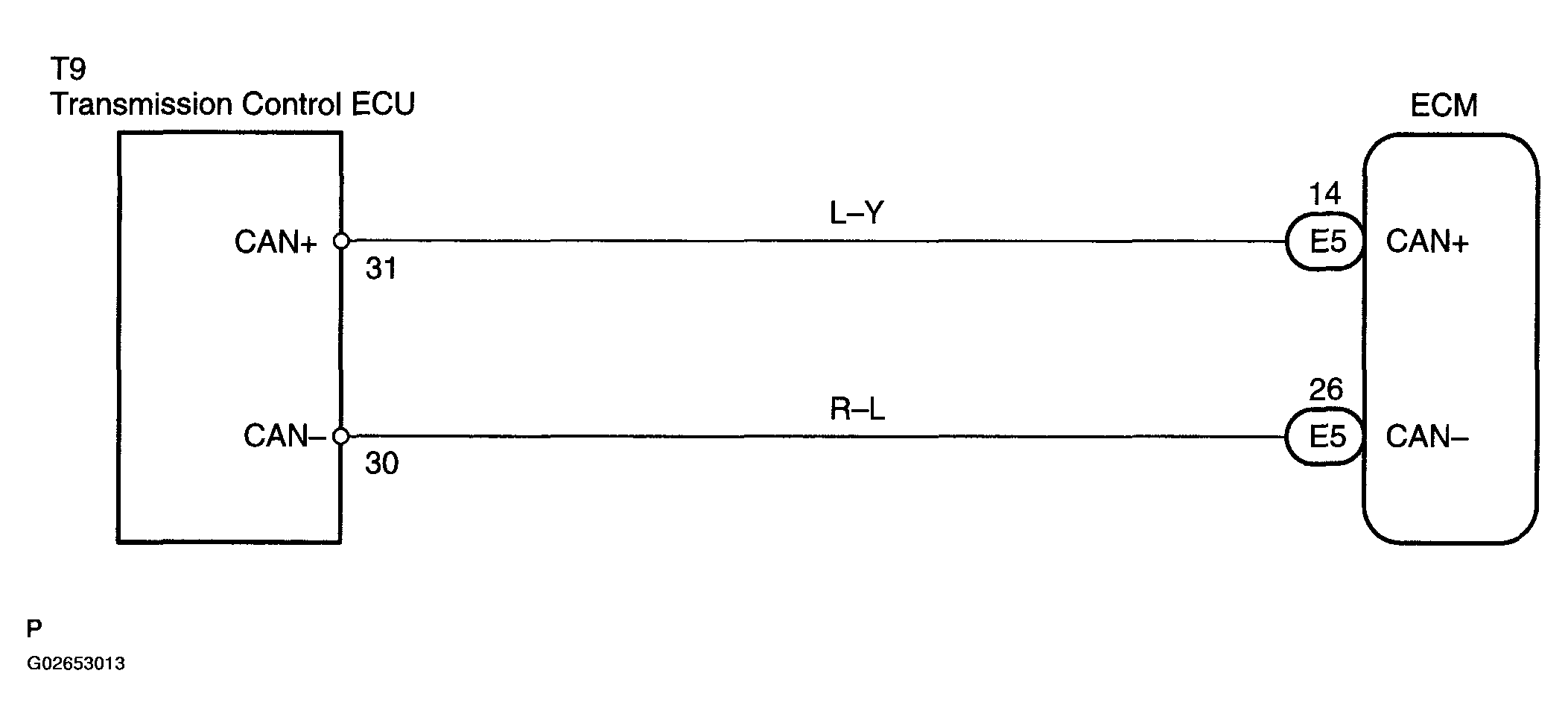

Fig 1: Wiring Diagram - Gear Shift Module Communication Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
