Circuit Description

The ECM receives information about the ON/OFF status of the A/C from the combination meter.

The ECM uses the information to control the engine (idle up, etc.).

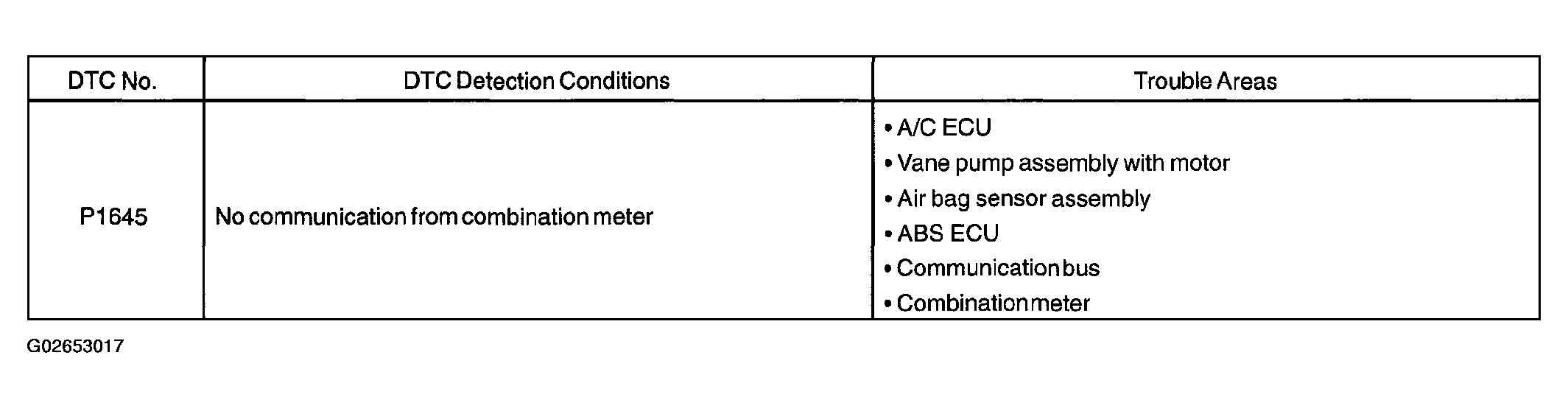

Fig 1: DTC Chart
G02653017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
