Camshaft Timing Oil Control Valve: Components

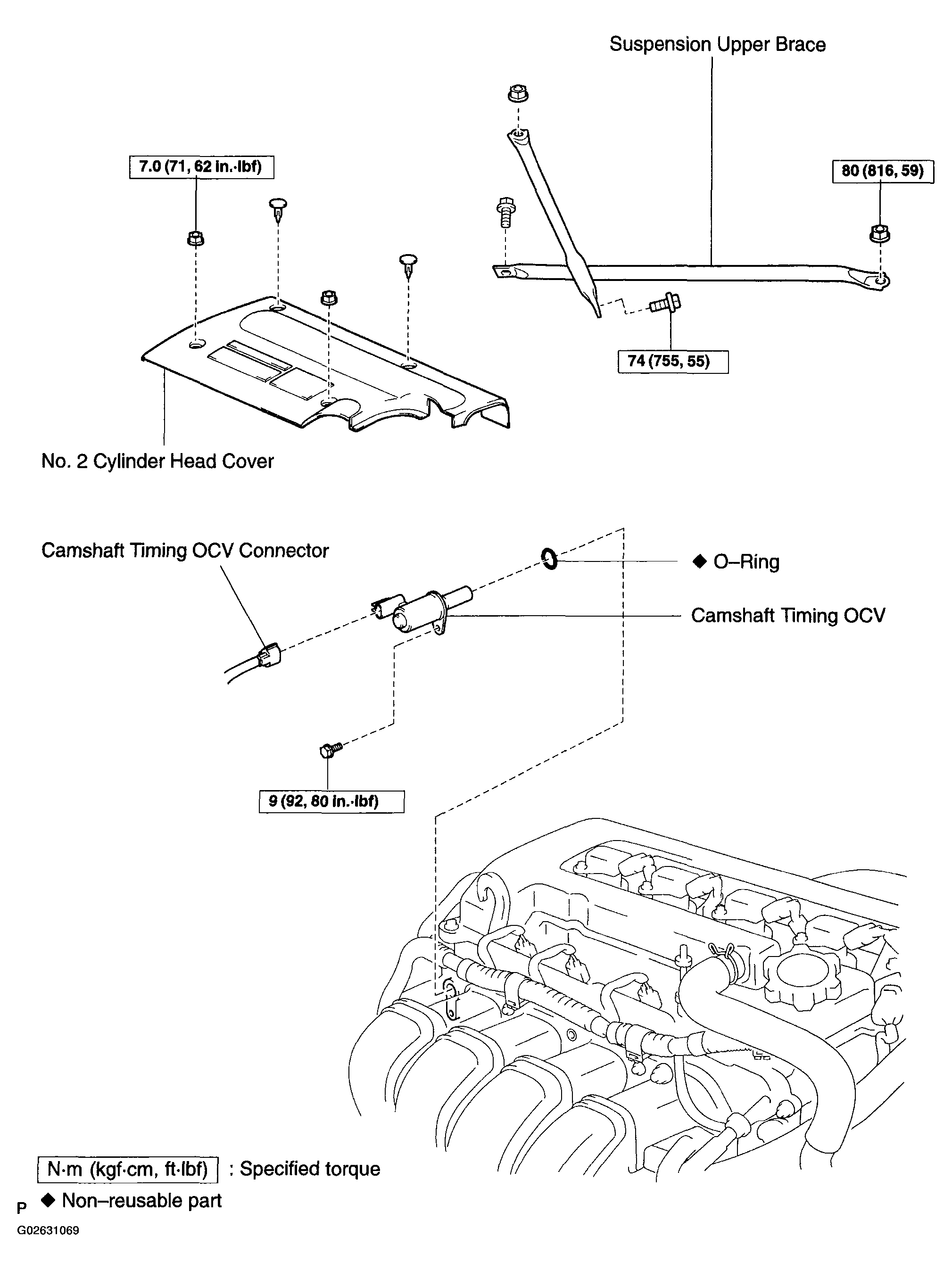

Fig 1: Identifying Camshaft Timing Oil Control Valve Components
G02631069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
