Idle Air Control (IAC) Valve (M/T): Components

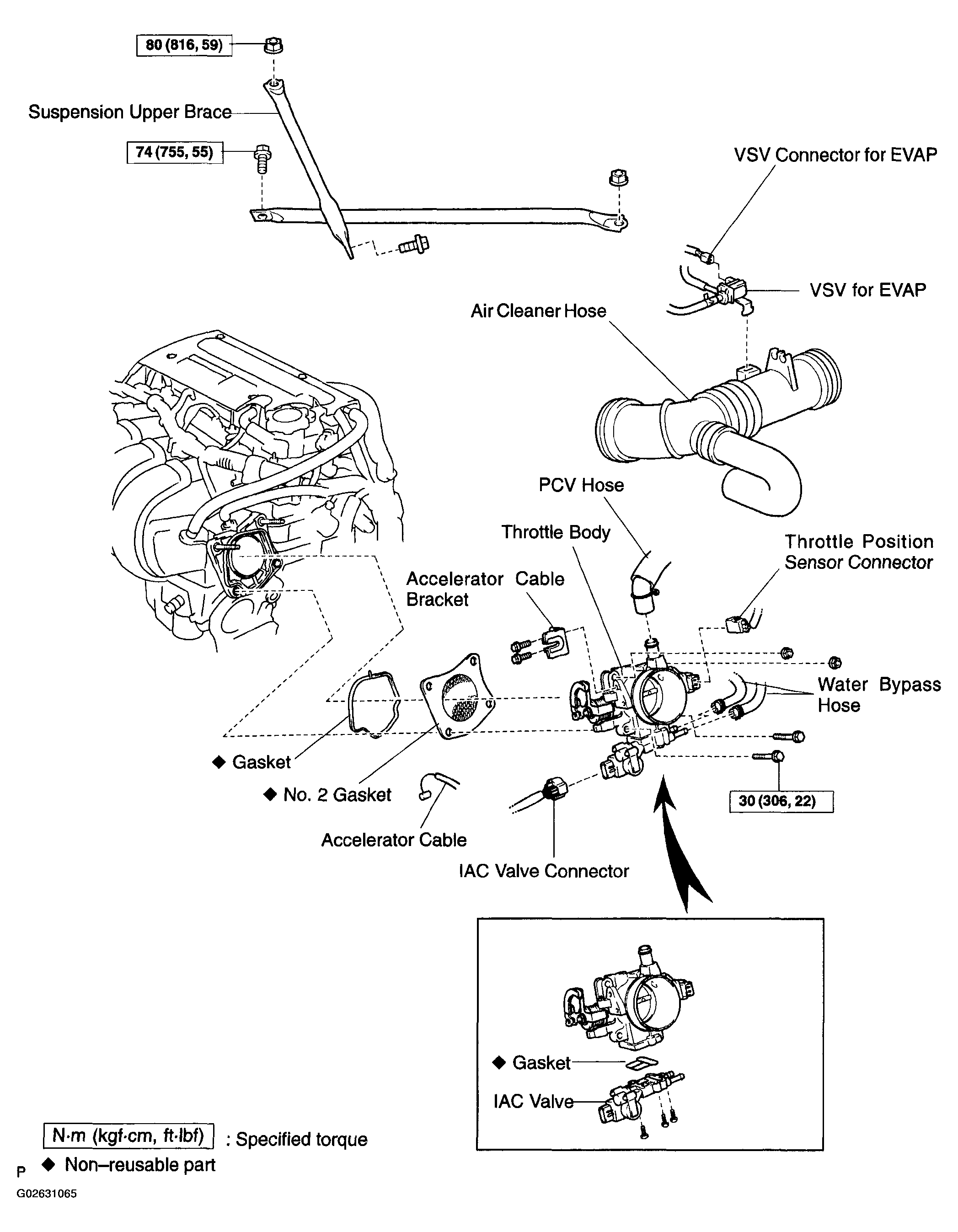

Fig 1: Identifying Idle Air Control Valve Components
G02631065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
