Input Sensor: Replacement

  1. Remove the front and rear engine under covers.
  2. Remove the filler plug.

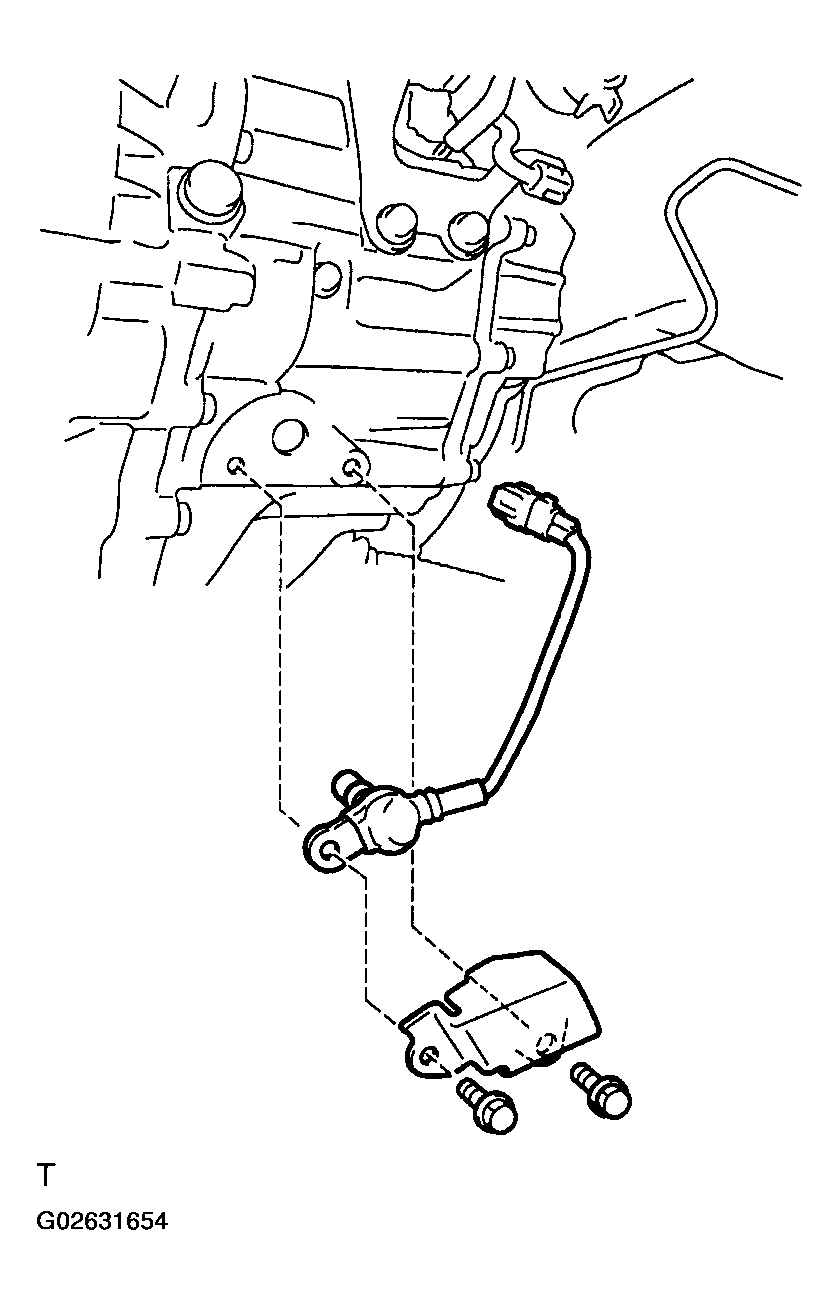

    Fig 1: Replacing Input Sensor
    G02631654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Disconnect the connector clamp and input sensor connector.
  4. Remove the 2 bolts and transmission case protector.
  5. Remove the input sensor.

    HINT:

    Use a container to catch the transmission oil.

  6. Install a new input sensor.
  7. Install the transmission case protector with the 2 bolts.

    Torque: 8.0 N.m (82 kgf.cm, 6 ft.lbf)

  8. Install the front and rear engine under covers.

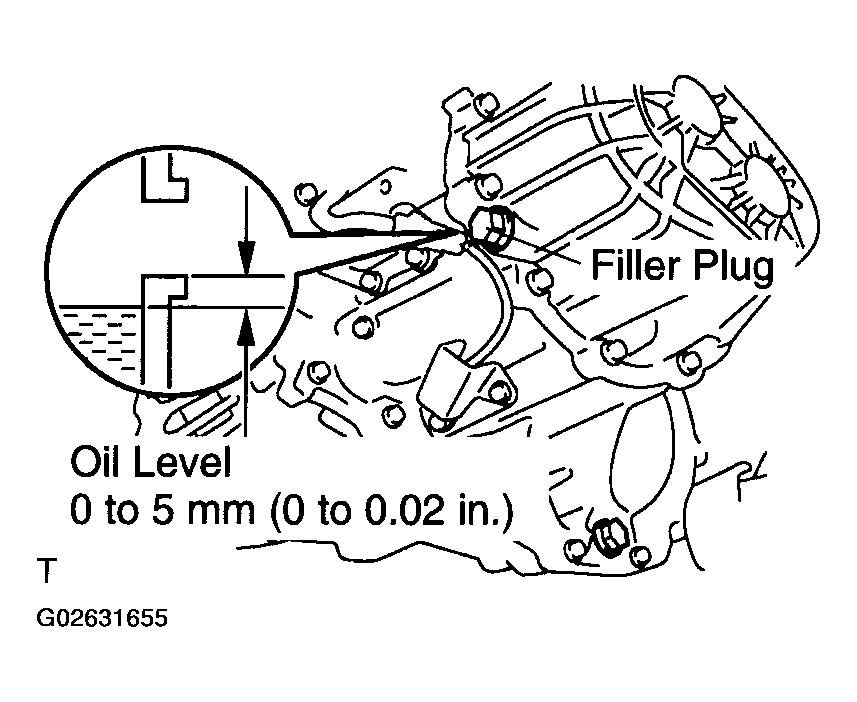

    Fig 2: Identifying Filler Plug
    G02631655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. Add the transmission oil by the prescribed quantity since the oil drains when the input sensor has been removed.

    Oil grade: API GL-4 or GL-5

    Viscosity: SAE 75W-90

  10. Reinstall the filler plug.

    Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

  11. Check for leak.
