TOYOTA Vehicle Intrusion Protection System - Diagnostics
›
Light Control Switch Circuit
›
Wiring Diagram

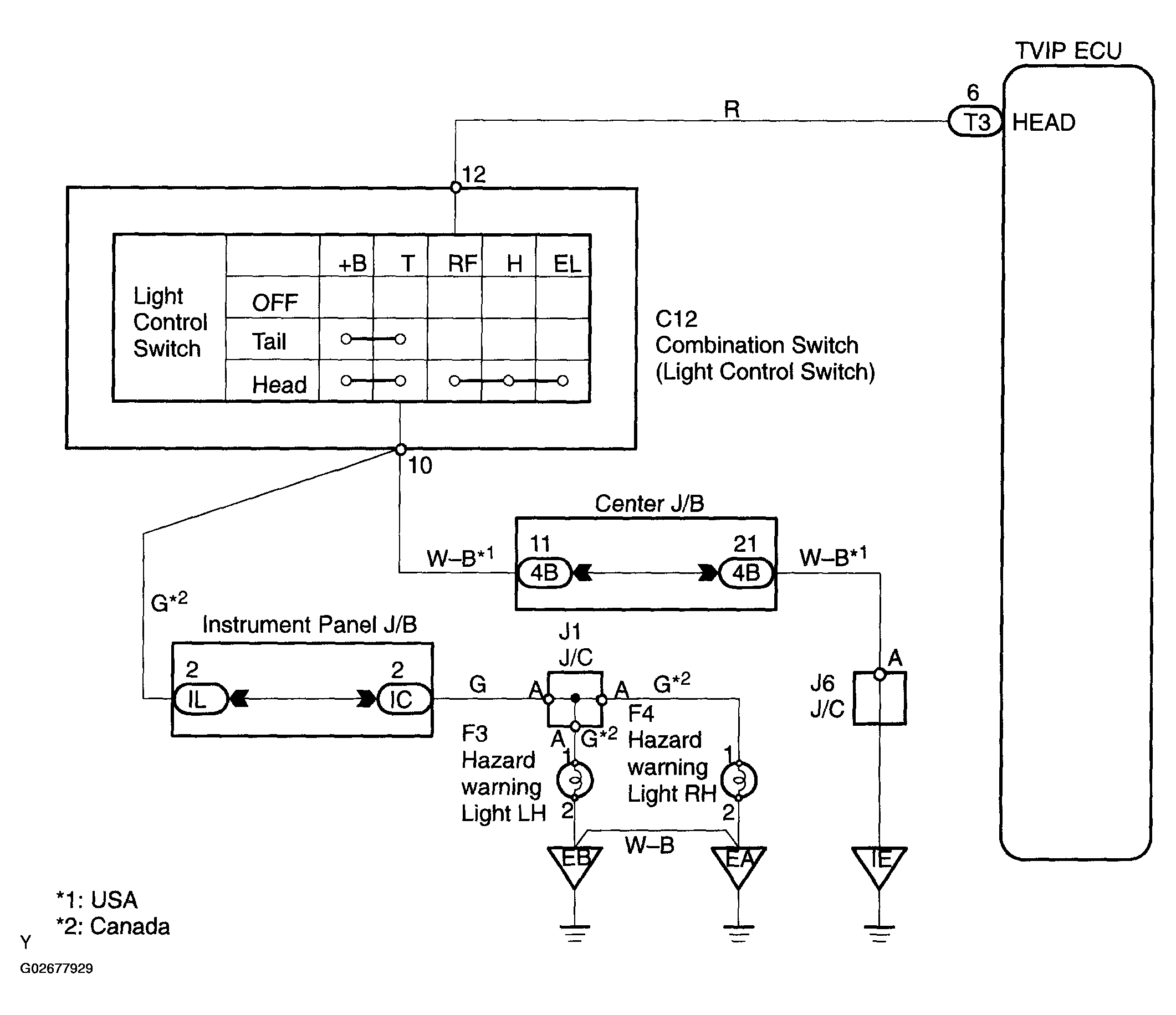

Light Control Switch Circuit: Wiring Diagram
Fig 1: Identifying Light Control Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
