Ignition Or Starter Switch ASSY: Replacement

  1. REMOVE STEERING COLUMN COVER (See  OVERHAUL  )
  2. REMOVE IGNITION OR STARTER SWITCH ASSY
    1. Disconnect the ignition switch connector and unlock warning switch connector.
    2. Remove the 2 clamps.
    3. Remove the 2 screws and ignition switch.

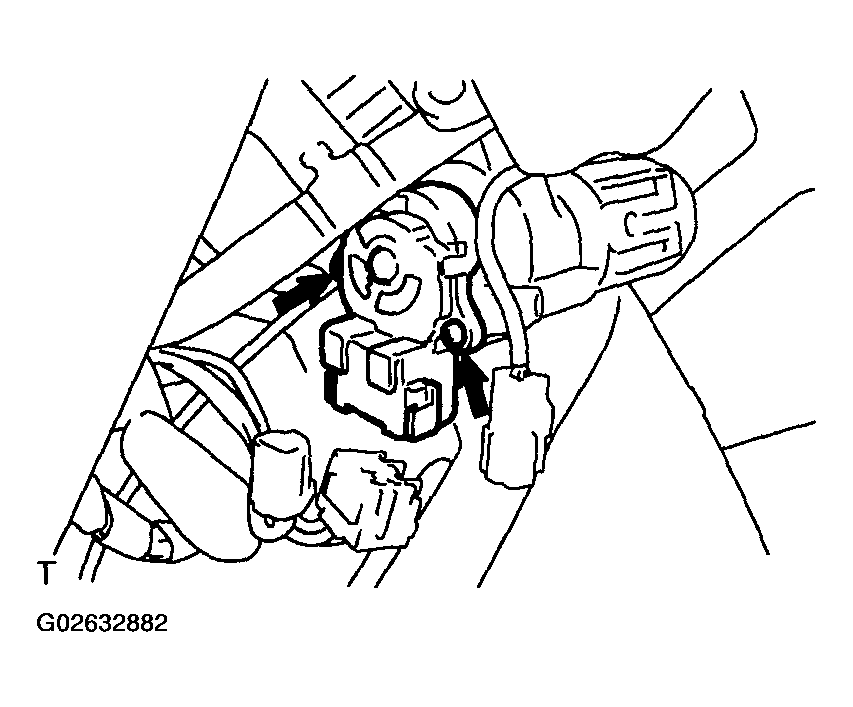

    Fig 1: Disconnecting The Ignition Switch And Unlock Warning Switch Connector
    G02632882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
