Rear Seat: Components

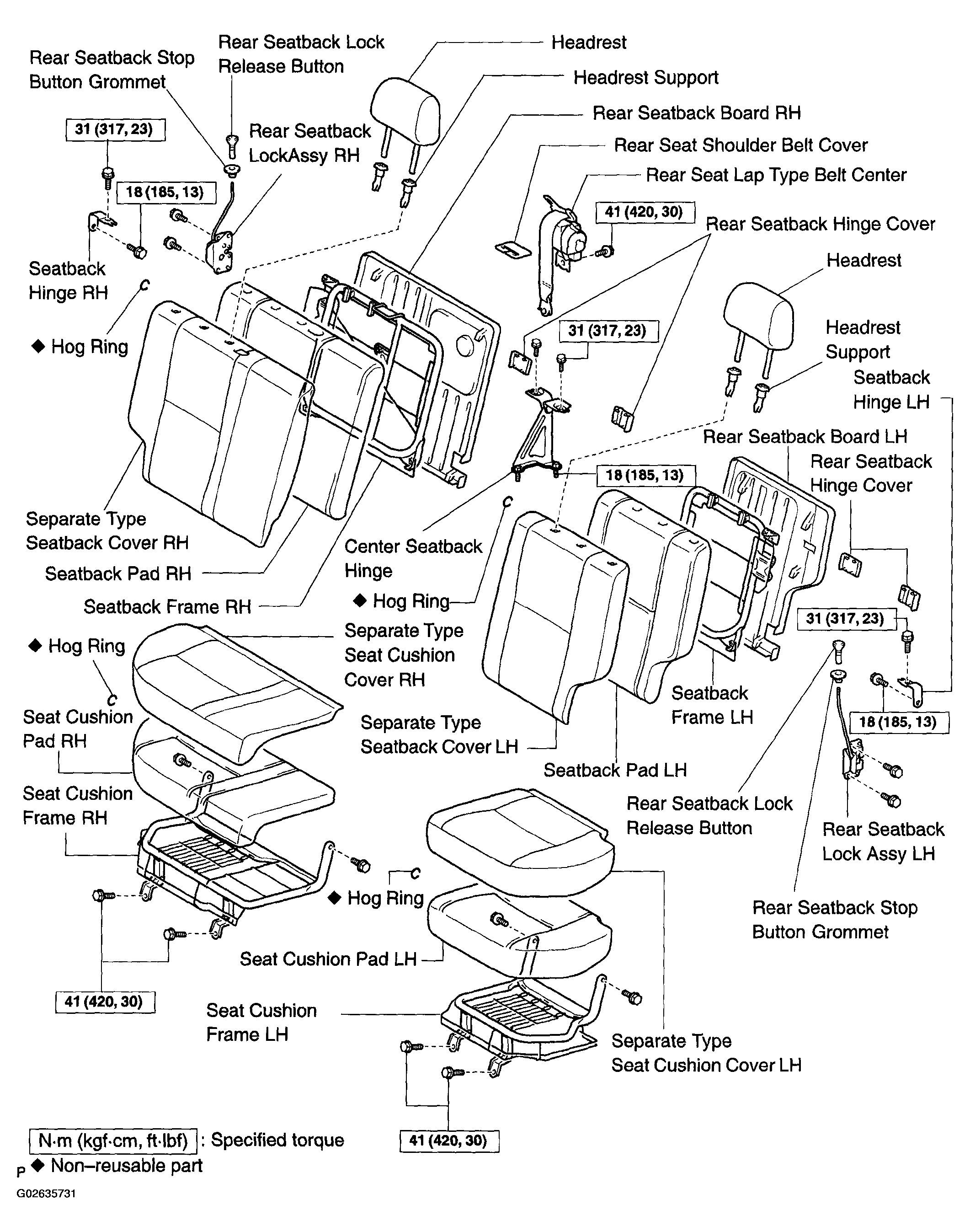

Fig 1: Replacement Components Of Rear Seat With Torque Specifications
G02635731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
