Abs Relay Block

The ABS relay block is located in the left rear of the engine compartment. See Figure.

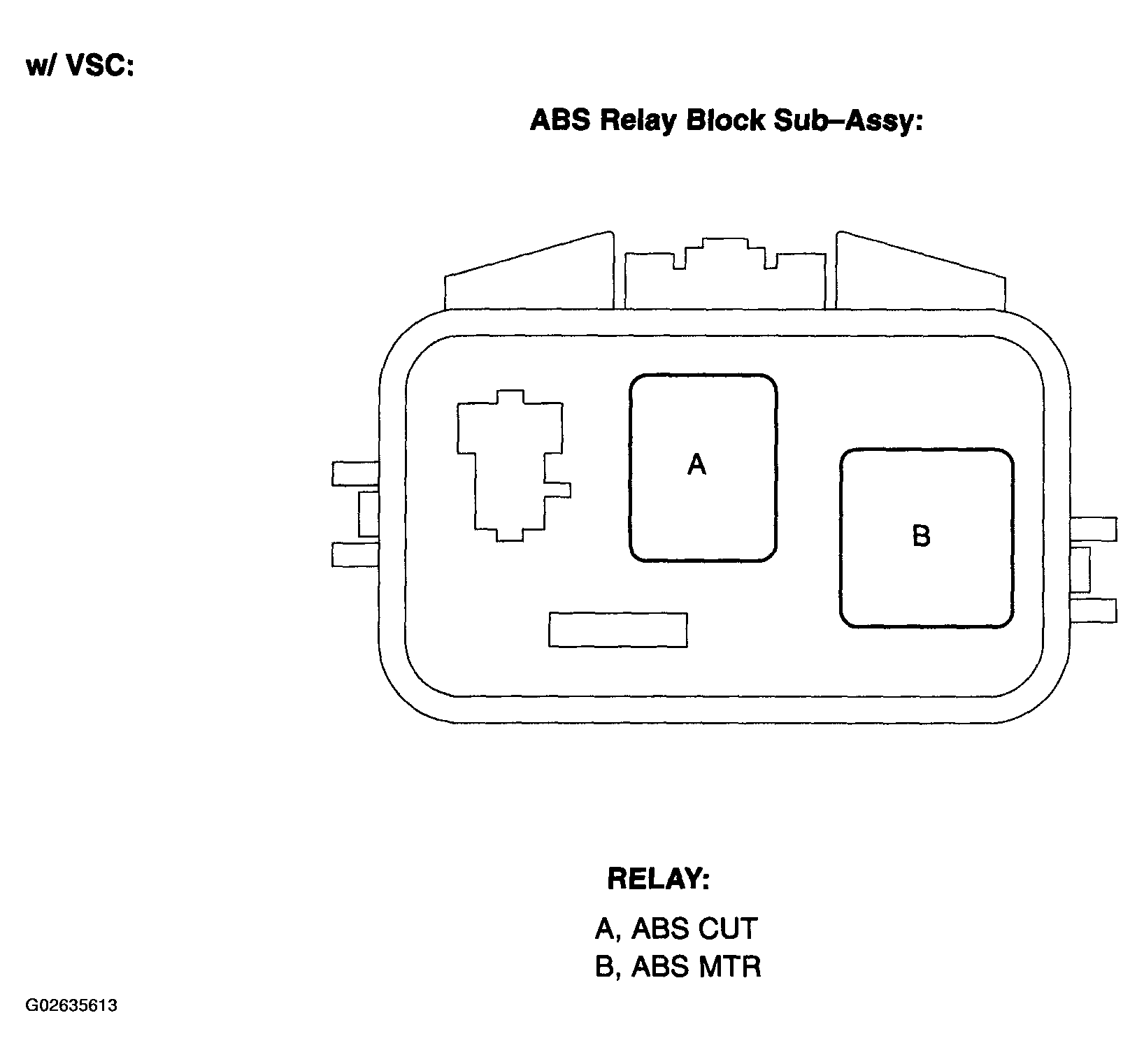

Fig 1: Identifying Relays (ABS Relay Block)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ABS RELAY BLOCK RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
A	ABS CUT Relay
B	ABS MTR Relay
