Combination Meter - Diagnostics: Location

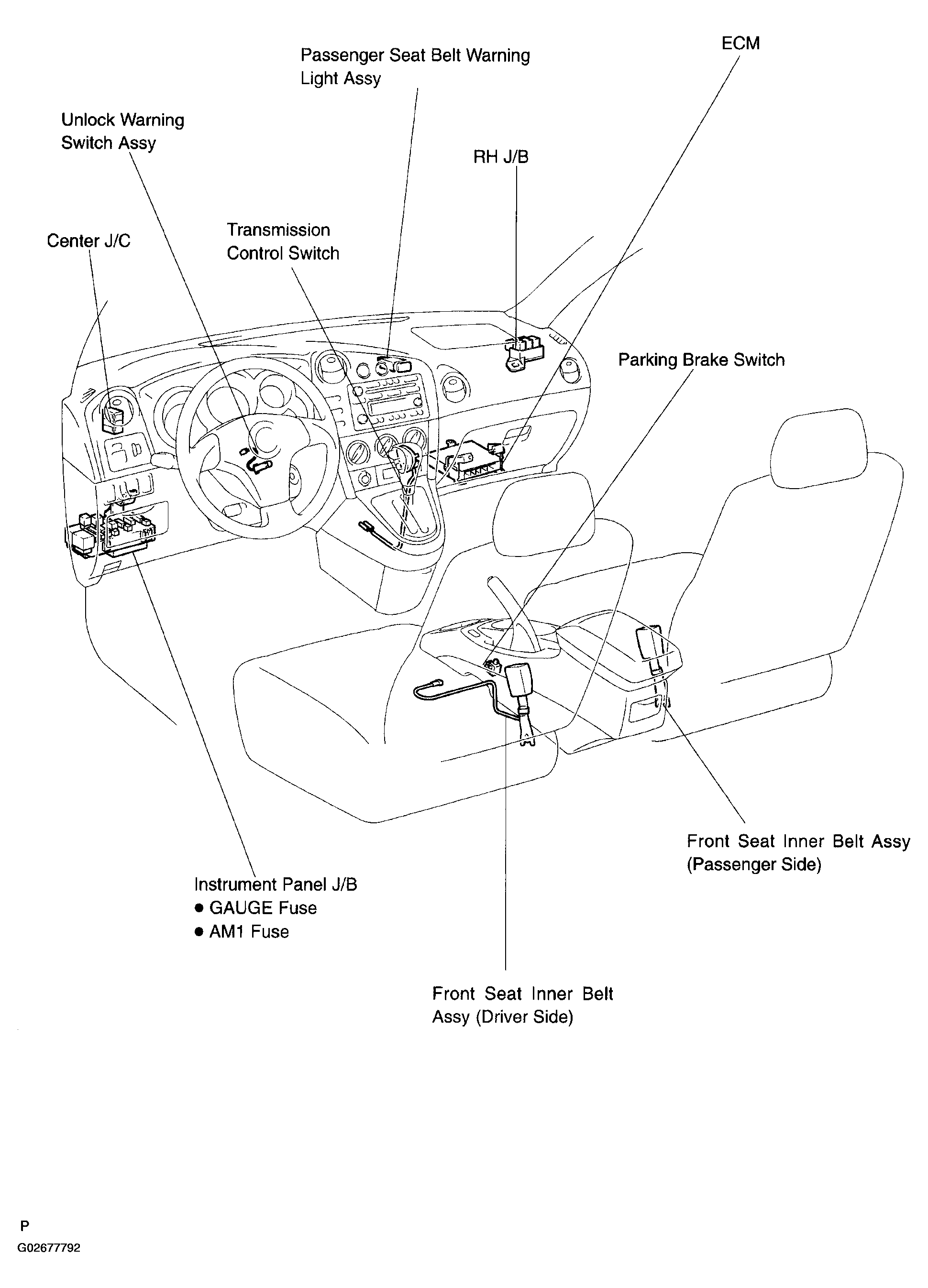

Fig 1: Locating Components Of Combination Meter (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

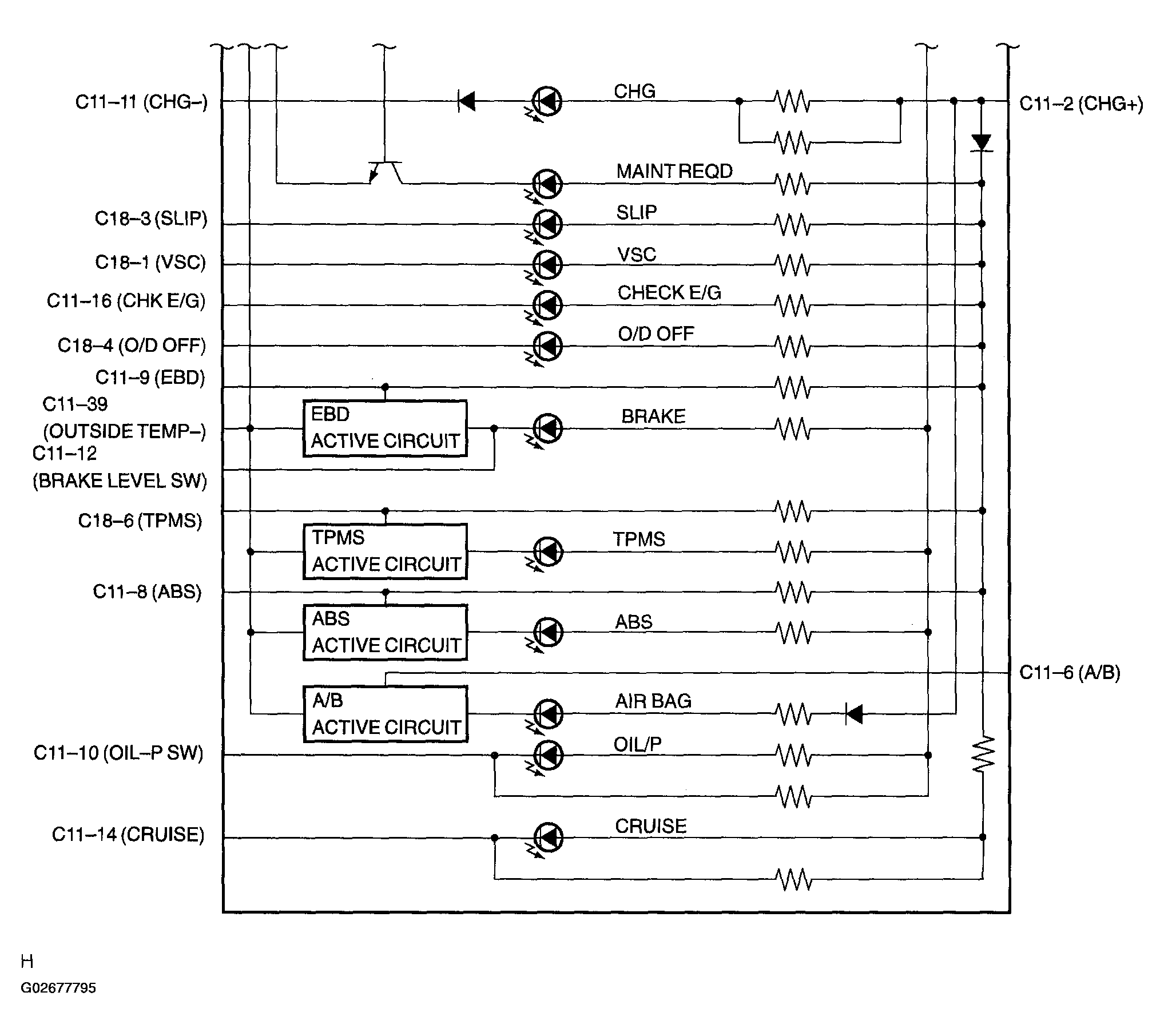

Fig 2: Locating Components Of Combination Meter (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

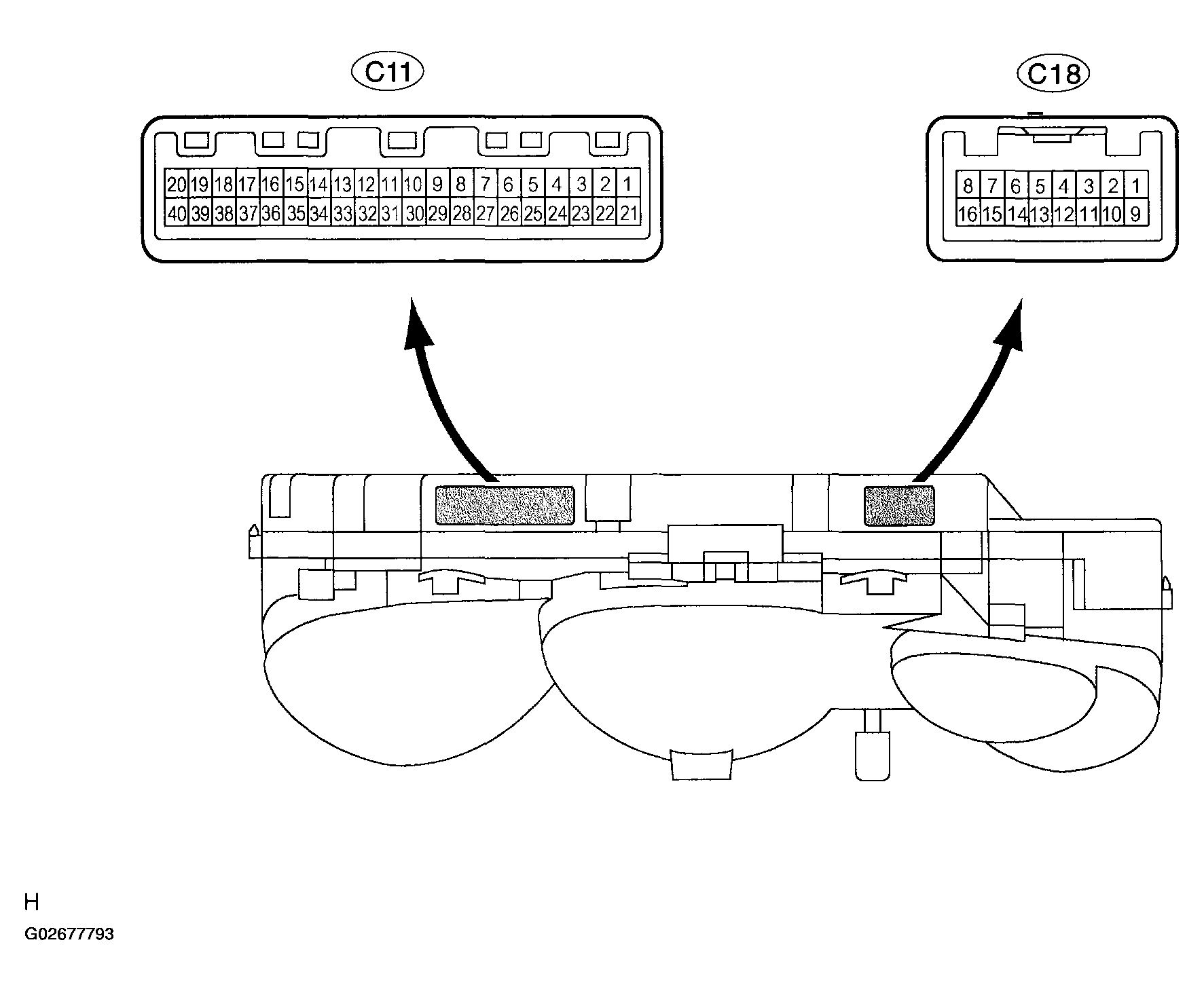

Fig 3: Locating Components Of Combination Meter (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

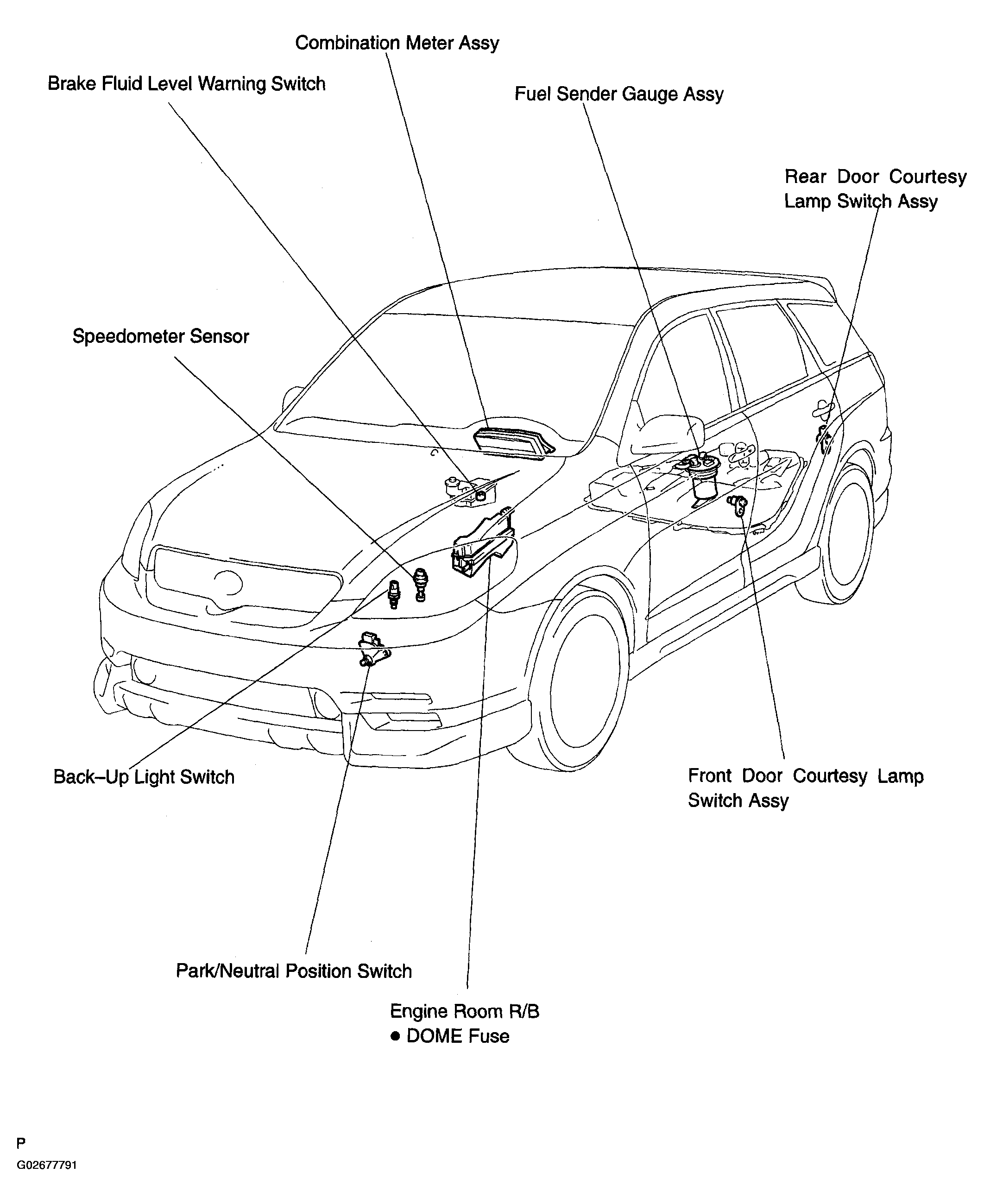

Fig 4: Locating Components Of Combination Meter (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

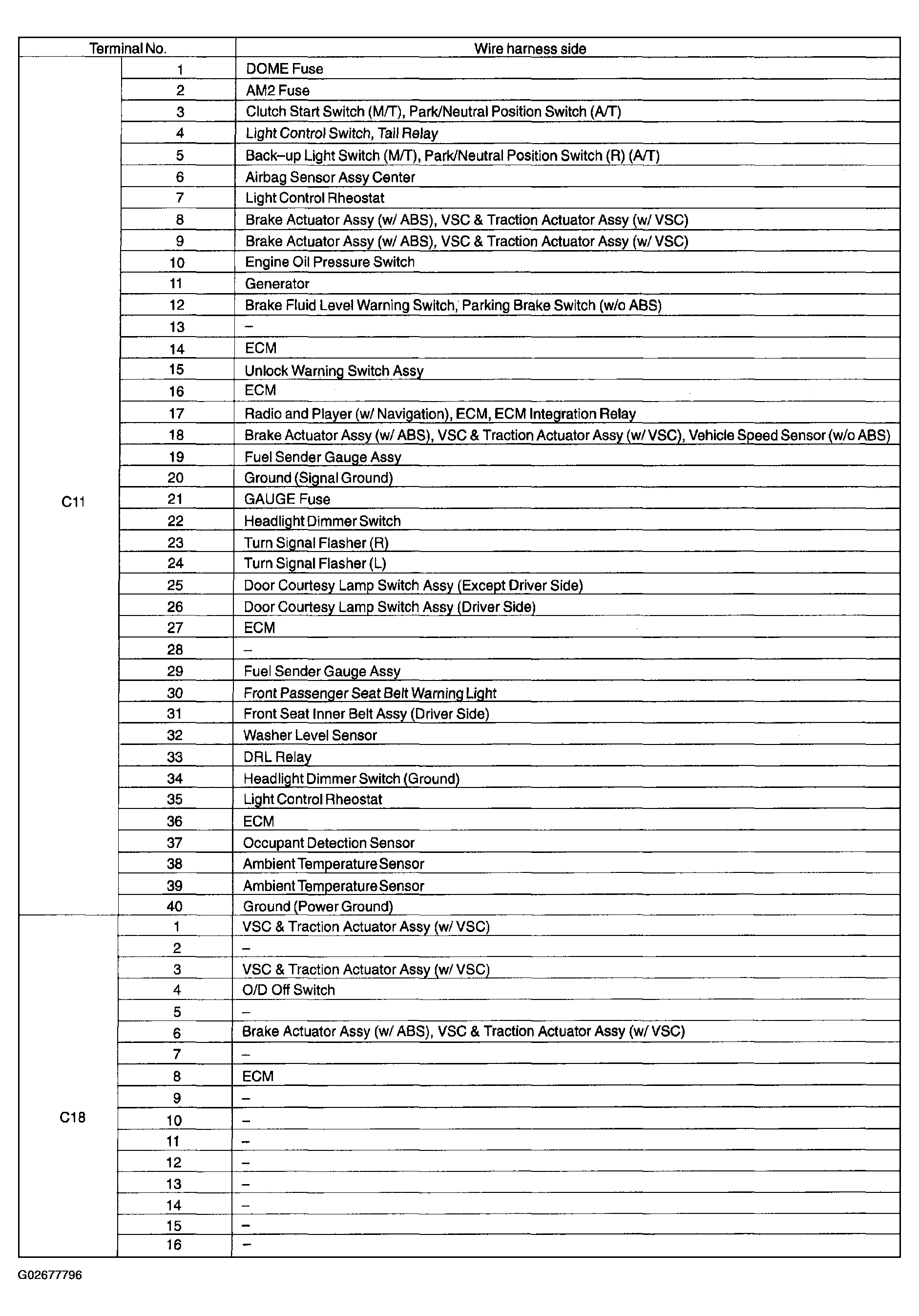

Fig 5: Locating Components Of Combination Meter (5 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

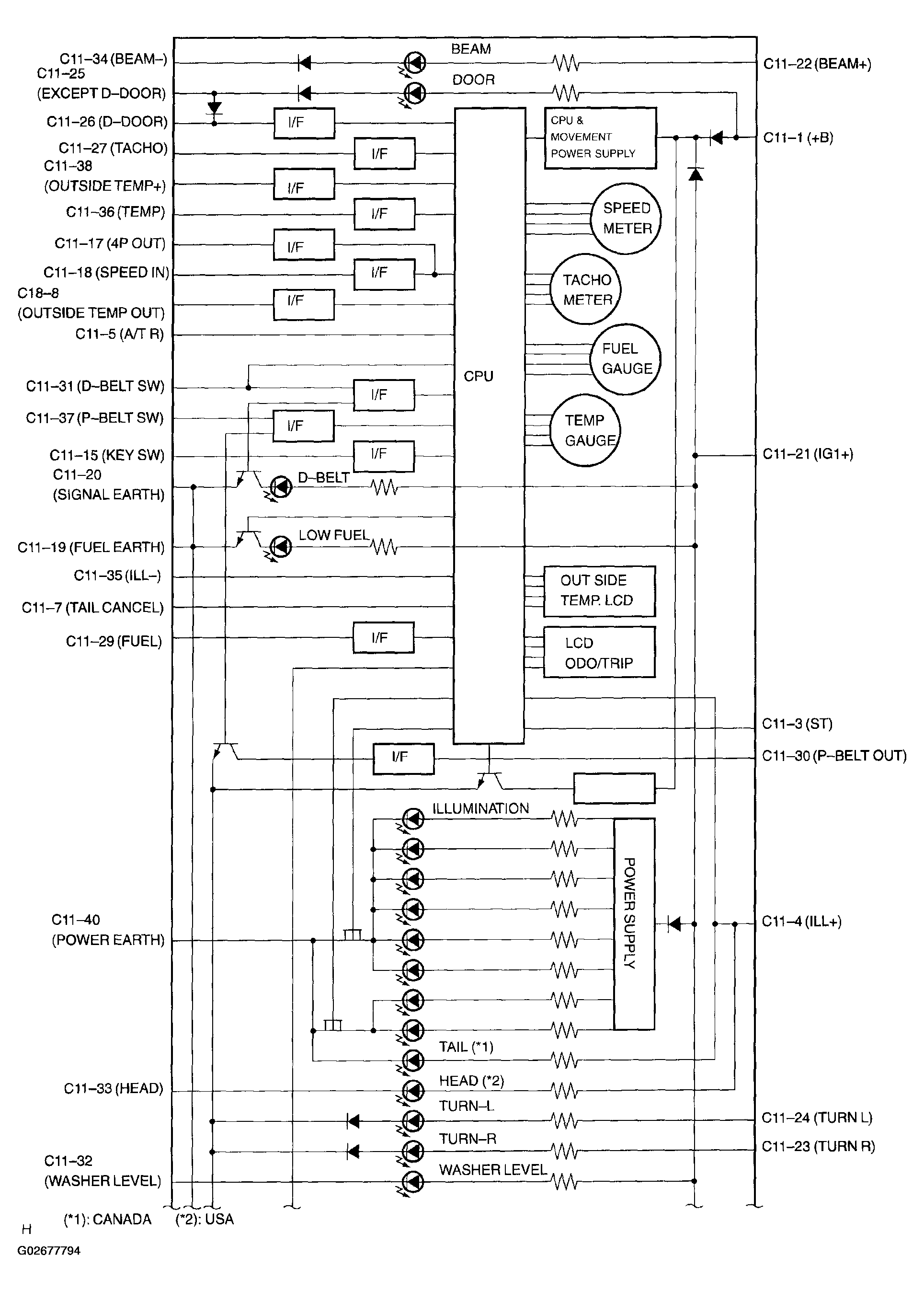

Fig 6: Locating Components Of Combination Meter (6 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
