Fuel Injector ASSY (1ZZ-FE): Components

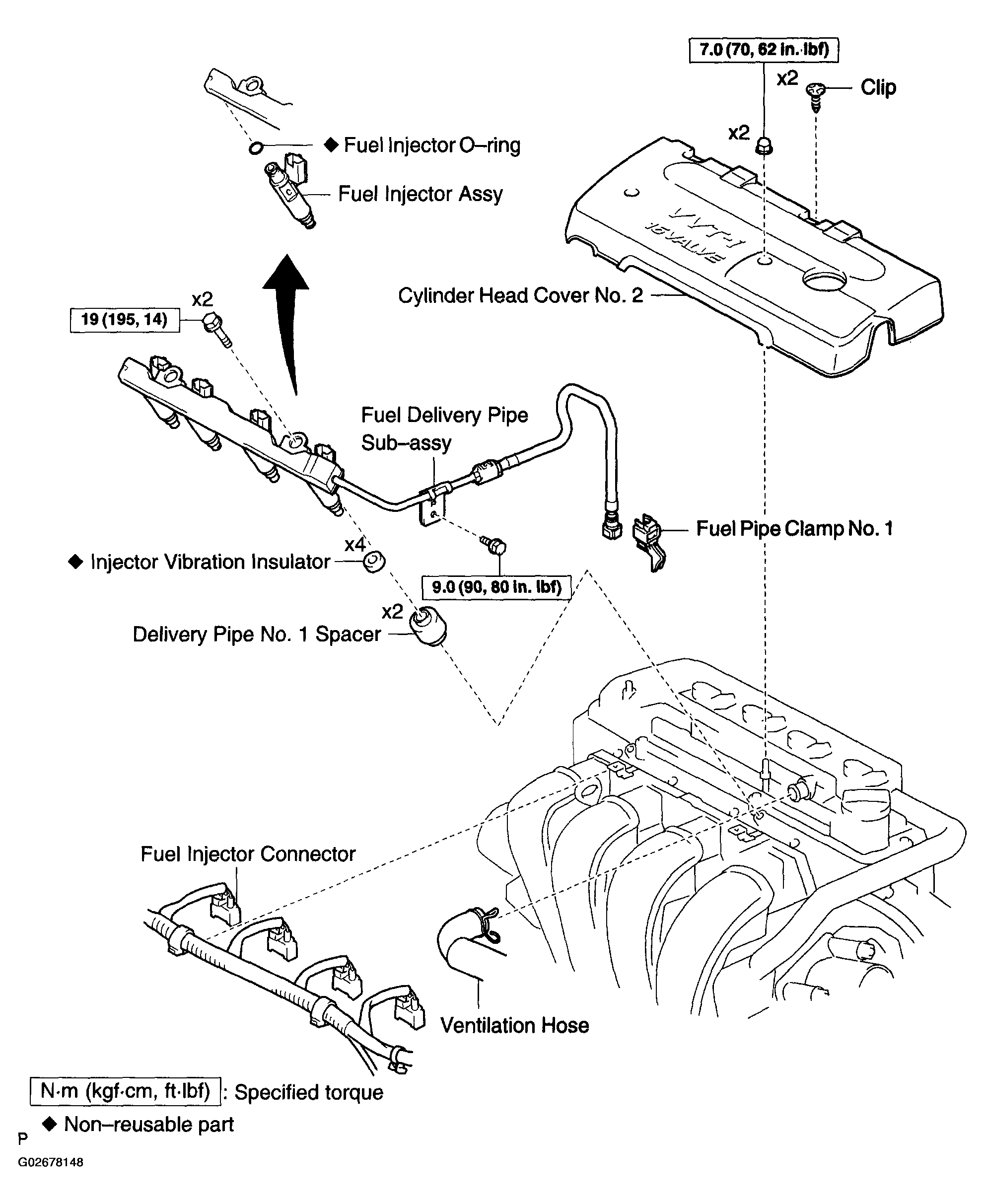

Fig 1: Exploded View Of Fuel Injector Assy With Torque Specifications (1ZZ-FE)
G02678148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
