Window Defogger System: Location

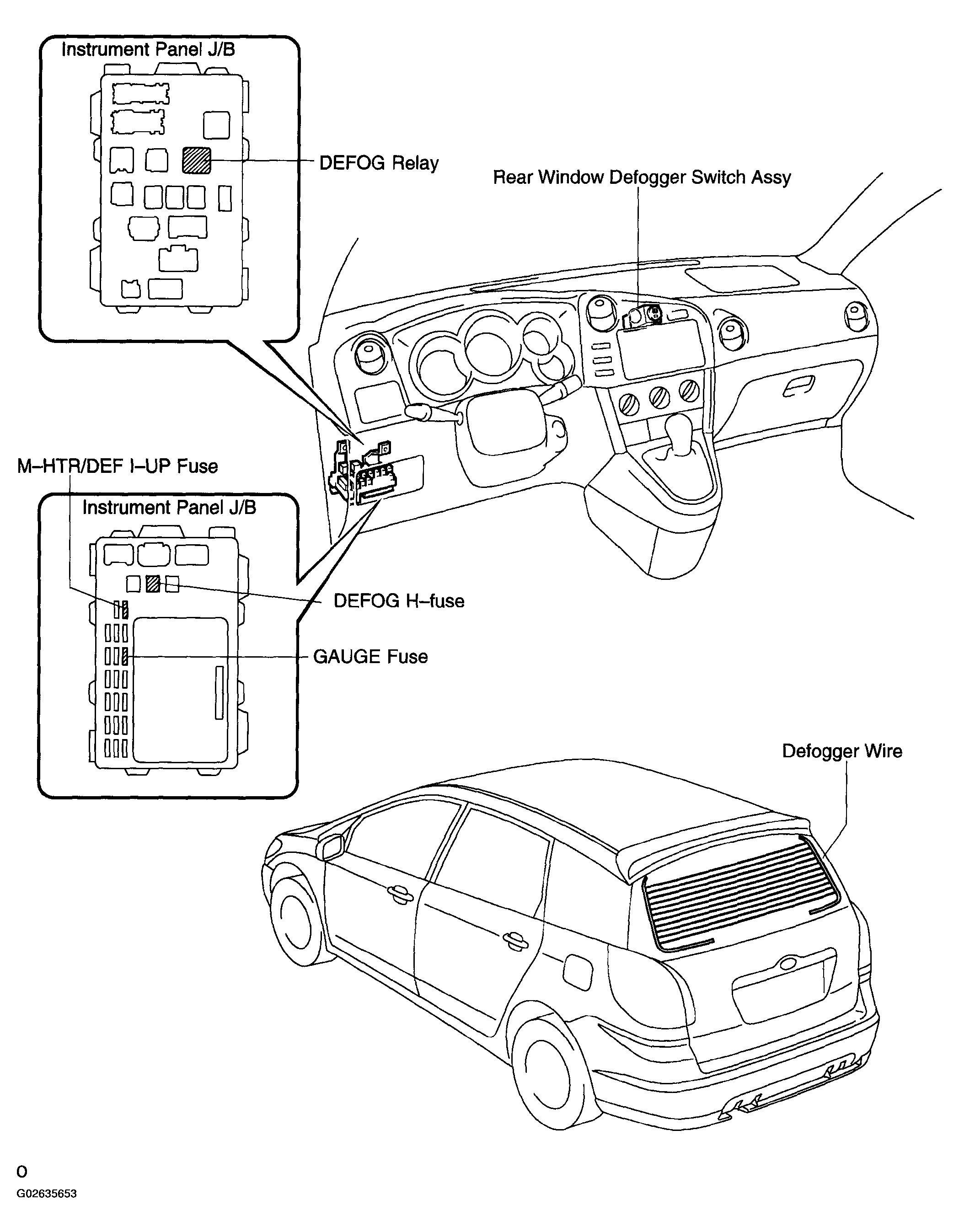

Fig 1: Identifying Window Defogger System Location

G02635653

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
